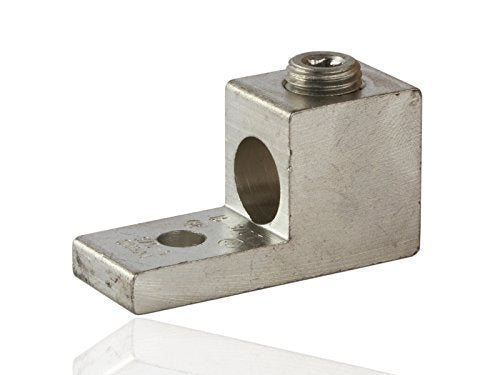

Nsi Industries 600T Dual Rated Lug 600 MCM-2 AWG

Product Description

The NSI INDUSTRIES 600T is a dual-rated lug designed for connecting 600 MCM to 2 AWG wires. Constructed from 6061T-6 aluminum alloy and tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors and is rated up to 600 volts.

• Versatile and reusable set screw connectors
• Made of 6061T-6 aluminum alloy
• Tin plated for low contact resistance

Product Highlights

The NSI INDUSTRIES 600T lug ensures secure and reliable electrical connections for a range of wire sizes and conductor materials.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: 600T
• Country of Origin: United States

Technical Specifications

• Bolt Hole: 3/8 INCH
• Gauge: 600KCMIL - #2
• Holes: 1 HOLE
• Inspection Hole: NO
• Lug Material: ALUMINUM
• Type: MECHANICAL
• Wire Range: 600MCM-2AWG

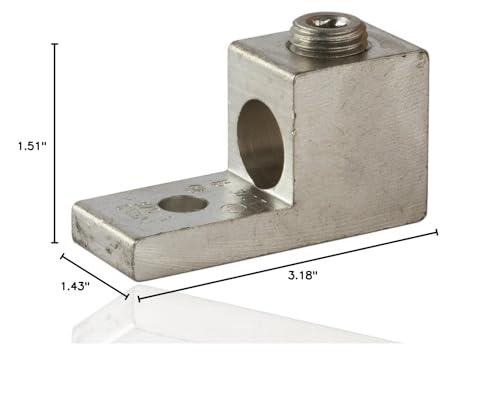

• Mounting Hole: 0.41"
• Width: 1.43"
• Height: 1.51"
• Length: 3.18"
• Material: 6061T-6 aluminum alloy
• Voltage Rating: 600 volts
• Finish: Tin Plated
• Ul Standard: UL 486A-486B
• Conductor Type: Aluminum, Copper
• Tang Length: 1.93
