Nsi Industries 560-dc2 Conduit Connector 3/8 in Ac Mc Nm Fmc

Product Description

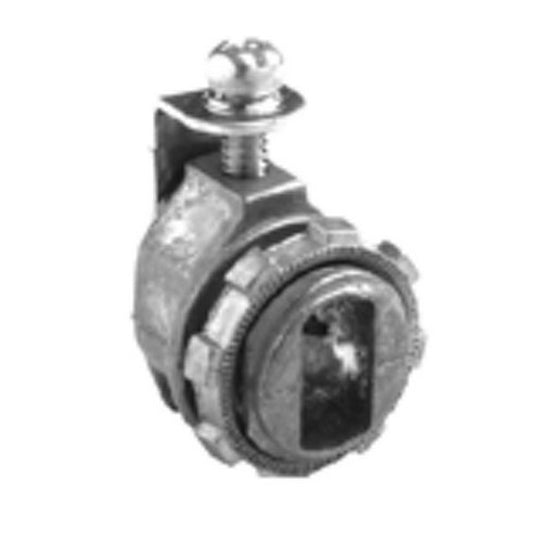

The NSI INDUSTRIES 560-dc2 is a single-screw, strap-type conduit connector designed to secure corrugated or interlocked MC, AC, and NM cable to electrical boxes and enclosures. Constructed from zinc die cast with a ball-burnish finish, this connector handles a cable opening range of 0.44 to 0.61 inches and fits a 3/8 inch trade size knockout. The tri-drive screw accommodates multiple driver types, speeding up installation in tight spaces. Electricians use this connector during rough-in and panel work wherever flexible metal conduit or armored cable terminates at a box.

The 560-dc2 is suited for residential and light commercial electrical installations. It accepts 14/4 to 10/4 AWG MCI-A cable, 12/2 to 10/4 AWG AC/MC/MCIA/HCF/HCFMCI-A cable, 14/2 to 10/3 AWG NM cable, and 3/8 inch flexible metal conduit. This range of compatible cable types makes it a practical stock item for electricians running multiple cable types on the same job.

Key Features

• Single-screw, strap-type design for straightforward cable termination
• Fits 3/8 inch trade size knockouts on boxes and enclosures
• Accepts cable outside diameters from 0.44 to 0.61 inches
• Zinc die cast construction with ball-burnish finish for durability
• Tri-drive screw works with flathead, Phillips, or square drivers
• Made in the United States

Compatibility

Compatible with 14/4 to 10/4 AWG MCI-A, 12/2 to 10/4 AWG AC/MC/MCIA/HCF/HCFMCI-A, 14/2 to 10/3 AWG NM cable, and 3/8 inch flexible metal conduit terminating at a 1/2 inch knockout using the 3/8 inch trade size fitting.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits and verify with a meter before working on any enclosure or panel. Insert the cable through the connector, tighten the strap screw snugly to secure the cable without deforming the jacket, and thread the connector into the knockout until the locknut is properly seated. Do not overtighten the screw to the point of damaging the cable jacket or armor.

Technical Specifications

• Trade Size: 3/8 inch
• Cable Opening Range: 0.44 to 0.61 inches
• Conductor Range: 14/2 to 10/3 AWG
• Connector Type: Single Screw, Strap Type
• Material: Zinc Die Cast
• Finish: Ball Burnish
• Country of Origin: United States

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: 560-dc2
