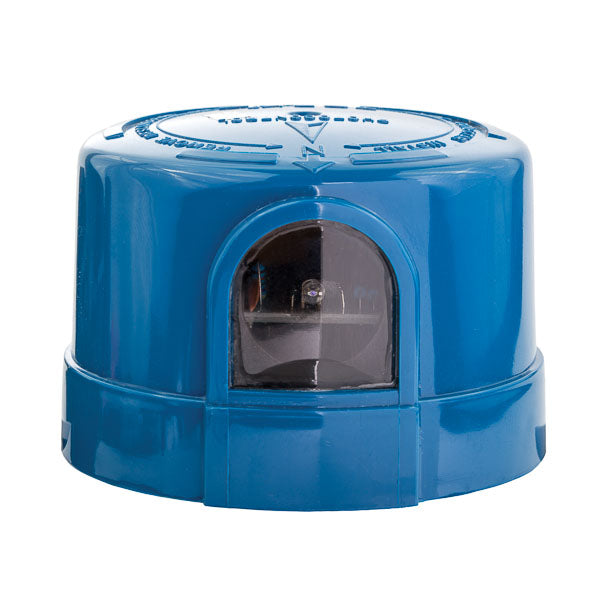

NSi Industries 5237-UL NSI TURNLOCK LED ELECTRONIC 105-305V IR

Product Description

NSI Industries offers the 5237-UL Electronic Instant Response Utility Grade Photocontrol for effective lighting control. This device operates at a voltage range of one hundred five to three hundred five volts alternating current, making it ideal for utility street and highway lighting applications.

• Instant response with delay settings from three to five seconds.
• Weather-resistant polycarbonate housing for durability.
• Compatible with tungsten loads up to one thousand watts and ballast loads up to eighteen hundred volt-amperes.

Product Highlights

The photocontrol features a molded sealed infrared sensor that optimizes sensitivity and ensures reliable operation.

Product Information

Standard Information

• Manufacturer: NSi Industries
• Voltage Rating: 105 to 305 VAC

Technical Specifications

• Application: Local Utility Street, Highway Lighting Control Applications
• Arrester: 360 J
• Ballast Load: 1800 VA
• Color: Blue
• Dimensions: 2.187 in H x 3.187 in W
• Environmental Conditions: -40 to 158 degrees Fahrenheit Operating Temperature
• Frequency Rating: 50/60 Hz
• Material: Polycarbonate
• Mounting Type: Twist-Lock
• Operating Cycles: 6000 Cycles
• Sensitivity: 1.5 FC (ON), 1.5:1 FC Average (OFF) to (ON) Ratio
• Sensor Type: Molded Sealed IR
• Standards/Approvals: UL/cULus Listed
• Timing Range: 3 to 5 s
• Tungsten Rating: 1000 W
• Type: Electronic Instant Response Utility Grade
