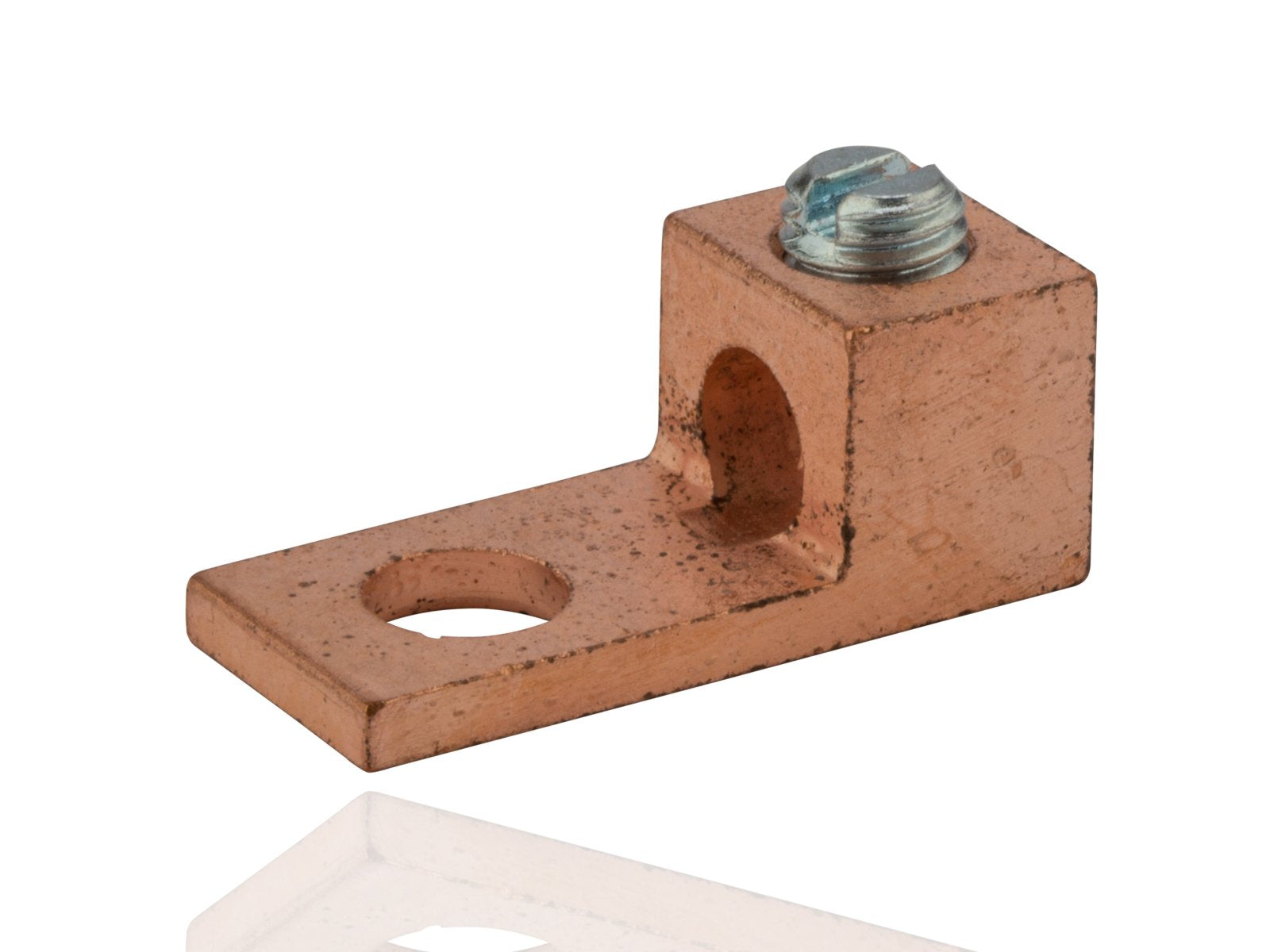

Nsi Industries 4TC Copper Mechanical Extruded Style Single Lug, 4-14 Wire Range

Product Description

The NSI INDUSTRIES 4TC is a solid one-piece copper connector made from extruded copper, offering superior mechanical strength and excellent electrical performance. It features a steel screw and is suitable for use with copper wire only. Rated at 600 volts, it is UL listed and CSA certified.

• Single lug - CU - extruded style
• Made from extruded copper
• Steel screw

Product Highlights

The NSI 4TC copper lug ensures a reliable electrical connection. Ideal for various applications requiring a secure and durable termination.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: 4TC
• Country of Origin: United States

Technical Specifications

• Wire Range: 4-14
• Mounting Hole: 0.265"
• Width: 0.450"
• Height: 0.44"
• Length: 1.075"
• Voltage Rating: 600 V
• Material: Copper
• Conductor Type: Copper
• Tang Length: 0.747
• Conductor Size: 14 to 4 AWG
• Type: Extruded and Tubular
• Number of Bolt Holes: 1
• Stud Size: 1/4 in
• Temperature Rating: 90 deg C
• Dimensions: 1.075 in L x 0.45 in W x 0.44 in H
• Specifications: 1-Pole, 1-Port, 1-Conductor, 1/4 in Bolt
