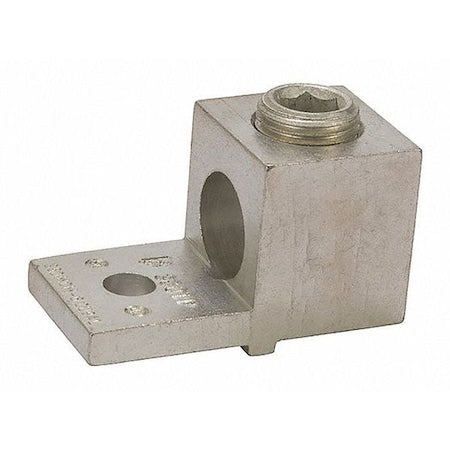

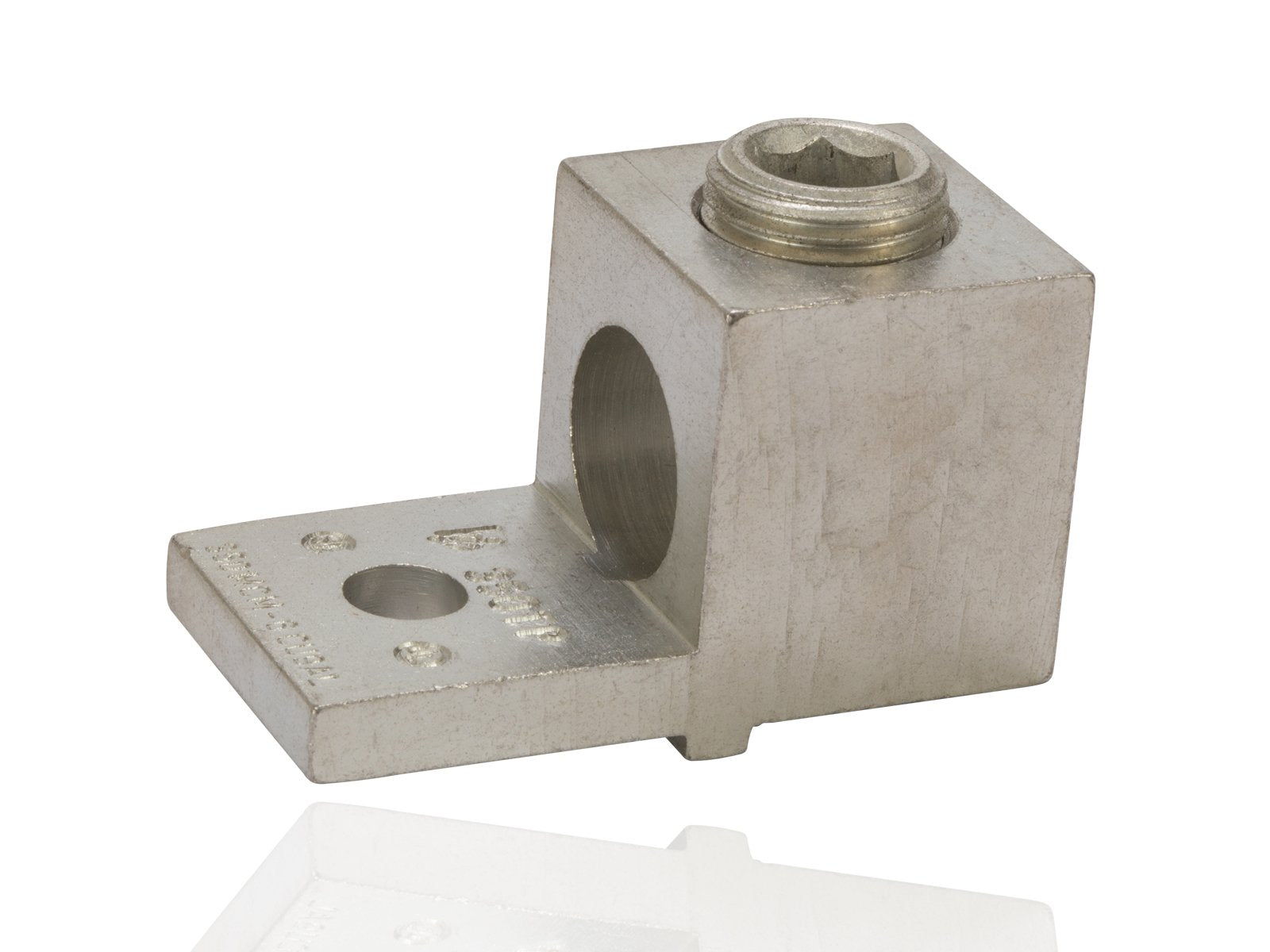

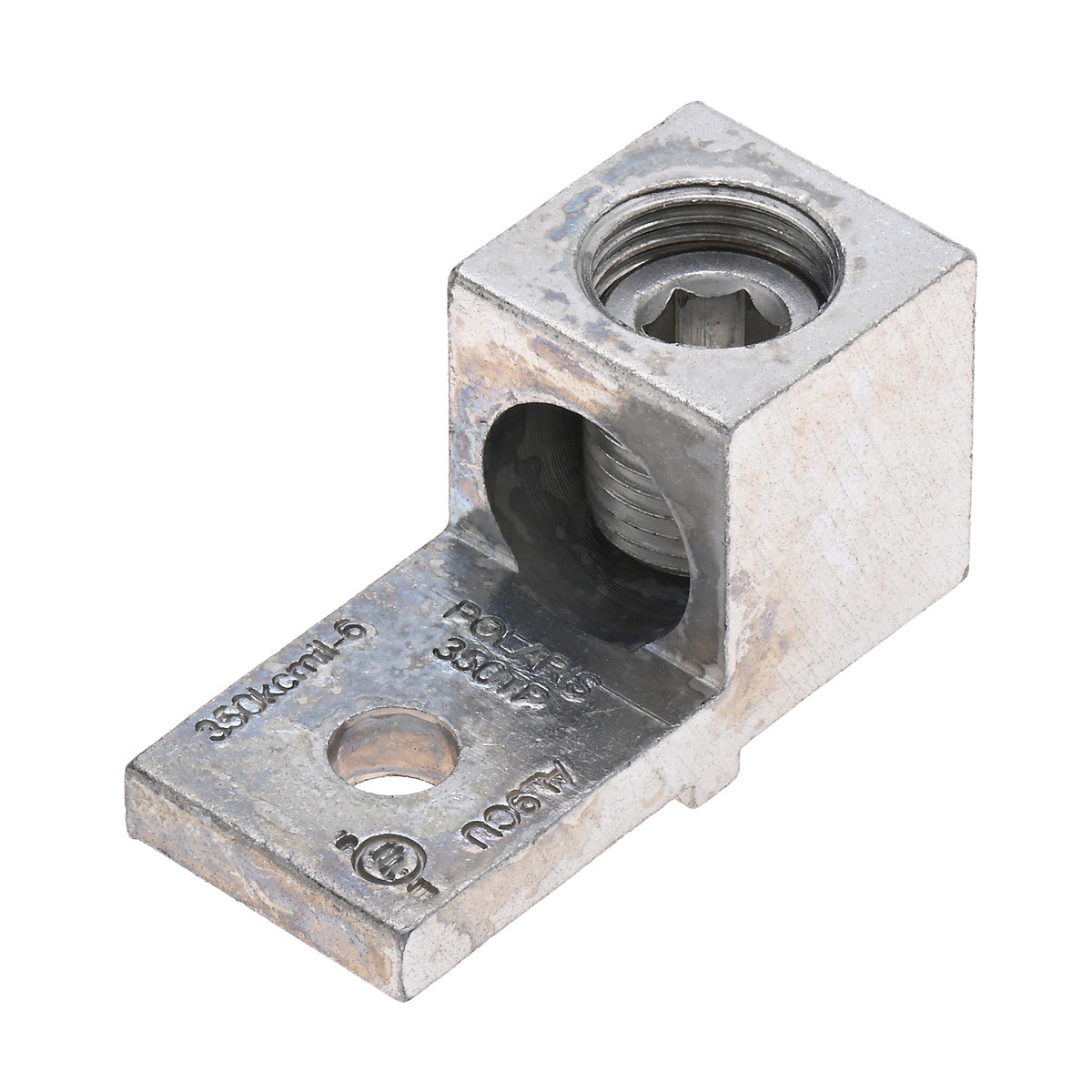

Nsi Industries 350TP Dual Rated Mechanical Lug 350 MCM-6

Product Description

The NSI INDUSTRIES 350TP dual-rated mechanical lug features a turn prevent on the bottom to eliminate potential movement. It is made of 6061T-6 aluminum alloy and tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors and rated 600 volts.

• Set screw connectors
• Turn prevent on the bottom of the tang to eliminate potential movement of the connector
• Made of 6061T-6 aluminum alloy

Product Highlights

The NSI INDUSTRIES 350TP lug ensures secure wire termination with its dual-rated compatibility and turn-prevent design.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: 350TP
• Country of Origin: United States

Technical Specifications

• Wire Range: 350 MCM-6
• Mounting Hole: 0.344"
• Turn Prevent to Mounting Hole Center: 0.406"
• Width: 1.125"
• Height: 1.250"
• Length: 2.250"
• Rated: 600 Volts
• Ports: 1
• Set Screws: 1
• Mounting Holes: 1
• Wire Range (CU-AL): 350 MCM - 6 AWG
• Torque Value (IN/LBS): 400
• Wrench Size: 5/16
• Brand Equivalent: Blackburn ADR35AR Morris 91316
• Material: 6061T-6 aluminum alloy
• Temperature Rating: 90 degrees C
• UL Standards: UL 486A/B
• Voltage Rating: 600 V
• Finish: Tin Plated
• Conductor Type: Aluminum, Copper
• Tang Length: 1.25
• Application: Wire Termination
• Use With: Aluminum/Copper Conductor
• Bolt Size: 5/16 IN
• Conductor Size: 350 kcmil
• Max Temperature: 90 degrees C
• Number of Conductors: 1
• Number of Ports: 1
• Standard: cULus
• Type: Aluminum Turn Prevent Lug
• Wire Size: 350 MCM-6 AWG
• Environmental Conditions: 90 C
• UL Listed: UL 486A-486B
