Nsi Industries 350SR Mechanical Dual Rated Splicer/Reducer 350 MCM - 6 AWG

Product Description

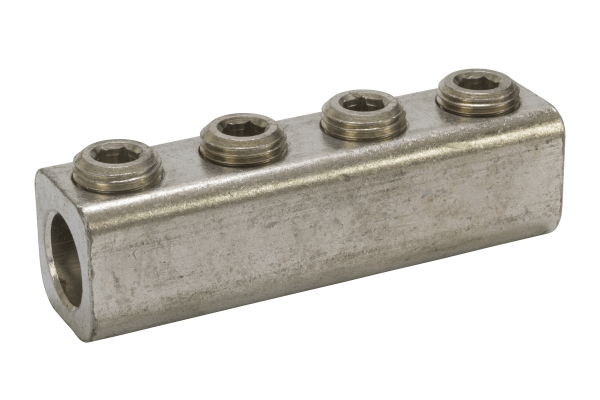

The NSI INDUSTRIES 350SR is an aluminum splicer reducer used for splicing two copper or aluminum wires of equal or different sizes. It is made of 6061T-6 aluminum alloy and electro-tin plated for low contact resistance. Rated 600 volts (2000V max. per UL486B). Temperature rating 90 degrees C.

• Aluminum Splicer Reducer 350 MCM - 6 AWG
• Made of 6061T-6 aluminum alloy
• Electro-tin plated for low contact resistance

Product Highlights

The 350SR Splicer Reducer is suitable for use with both copper and aluminum conductors. It is UL 486A/B Listed.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: 350SR
• Country of Origin: US - United States

Technical Specifications

• Material: 6061T-6 Aluminum Alloy
• Max Temperature: 90 degrees C
• Number of Conductors: 2
• Number of Poles: 1 Pole
• Number of Ports: 2
• Standard: CULUS
• Temperature Rating: 90 degrees C
• Type: Splicer-Reducers
• Voltage: 600 Volt
• Brand: NSI Industries
• Sub Brand: Mechanical Connector
• Color: Aluminum
• Finish: Tin Plated
• Product UPC: 66238100234
• Height: 1.19 Inch
• Length: 4.19 Inch
• Width: 1.13 in
• Certifications and Standards: UL Listed, UL 486A-486B
• Series: SR Series
• Specifications: 1 Pole, 2 Conductor
• Voltage Rating: 600 VAC
• Conductor Size: 6 AWG to 350 kcmil
• Conductor Type: Aluminum/Copper
• Application: Splice
