Product Description

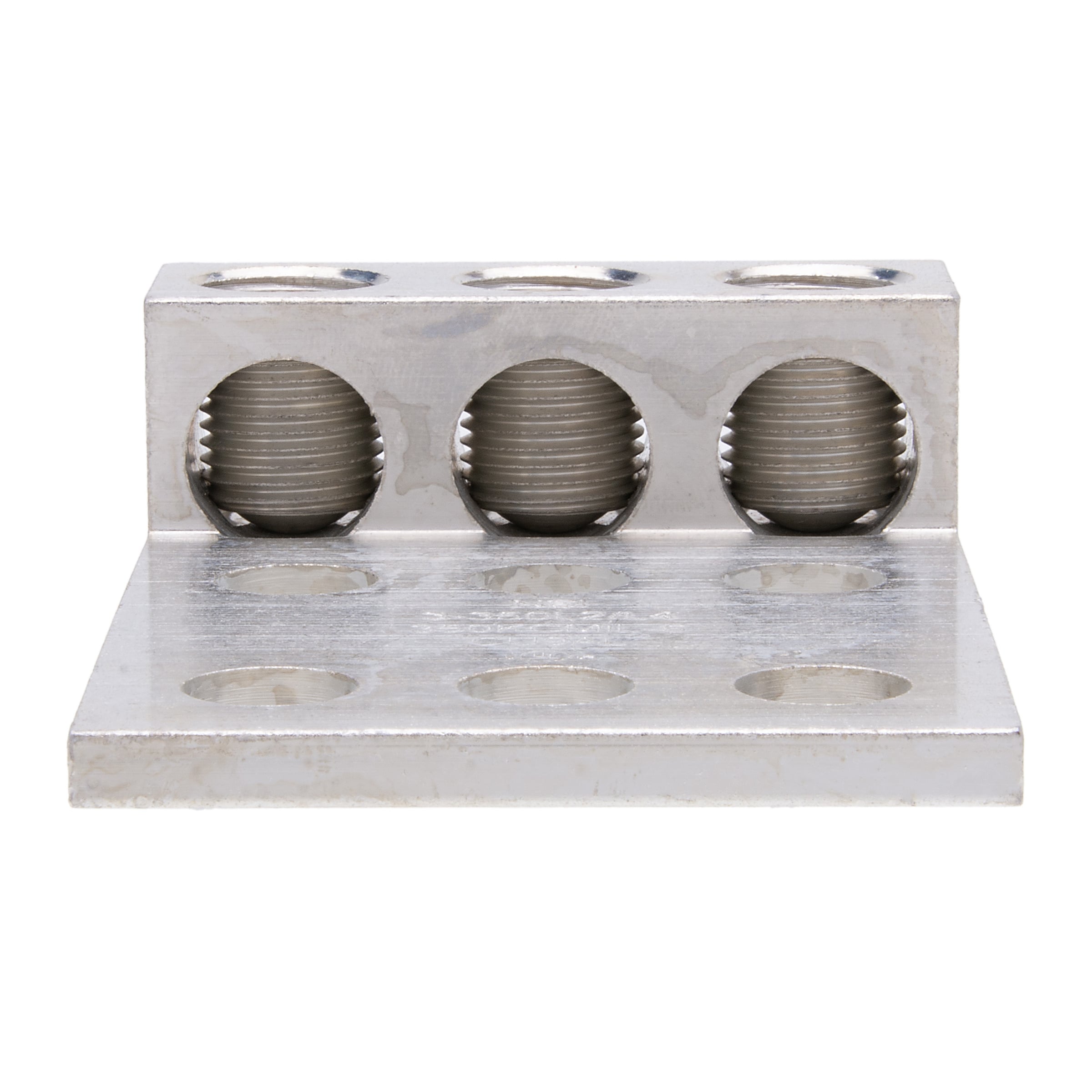

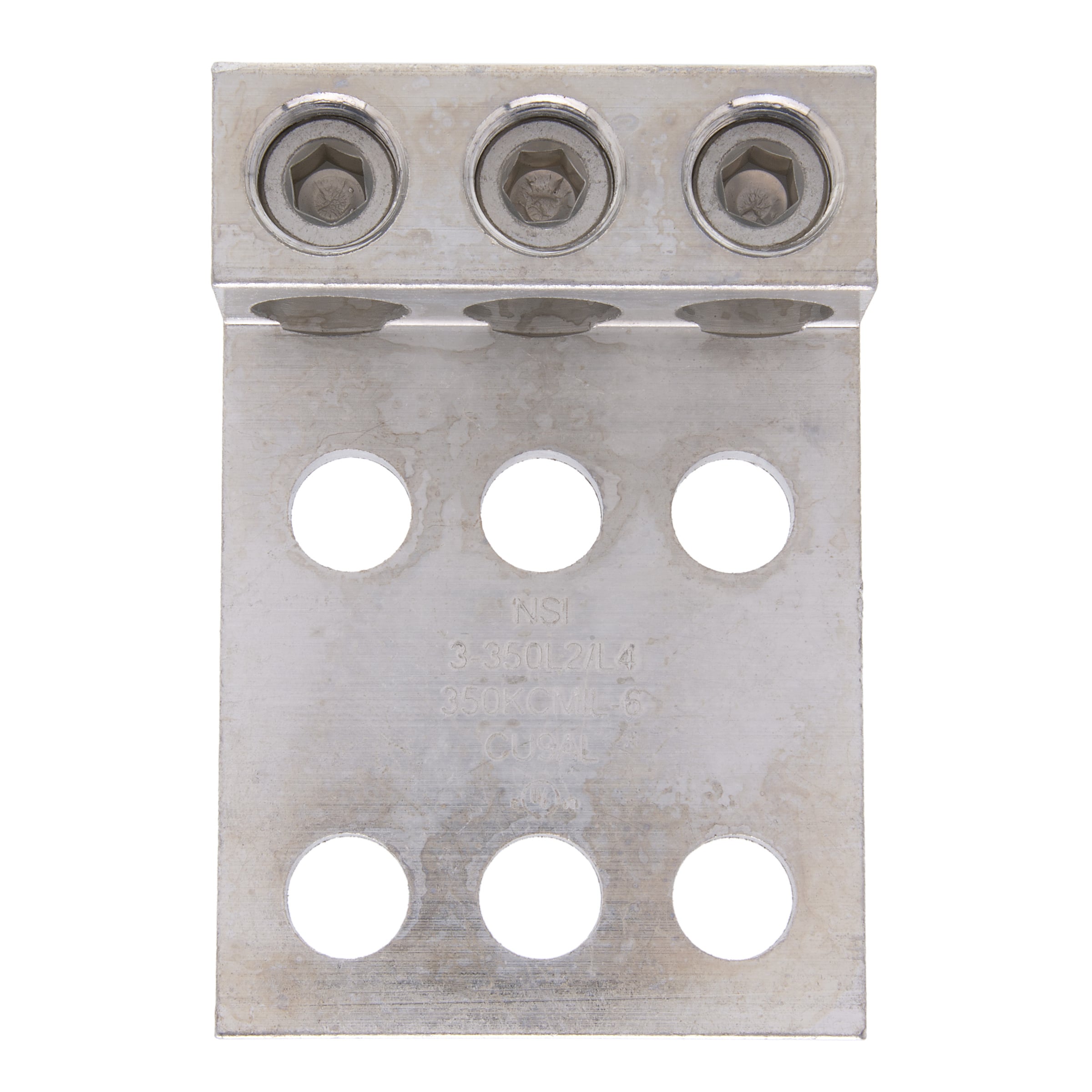

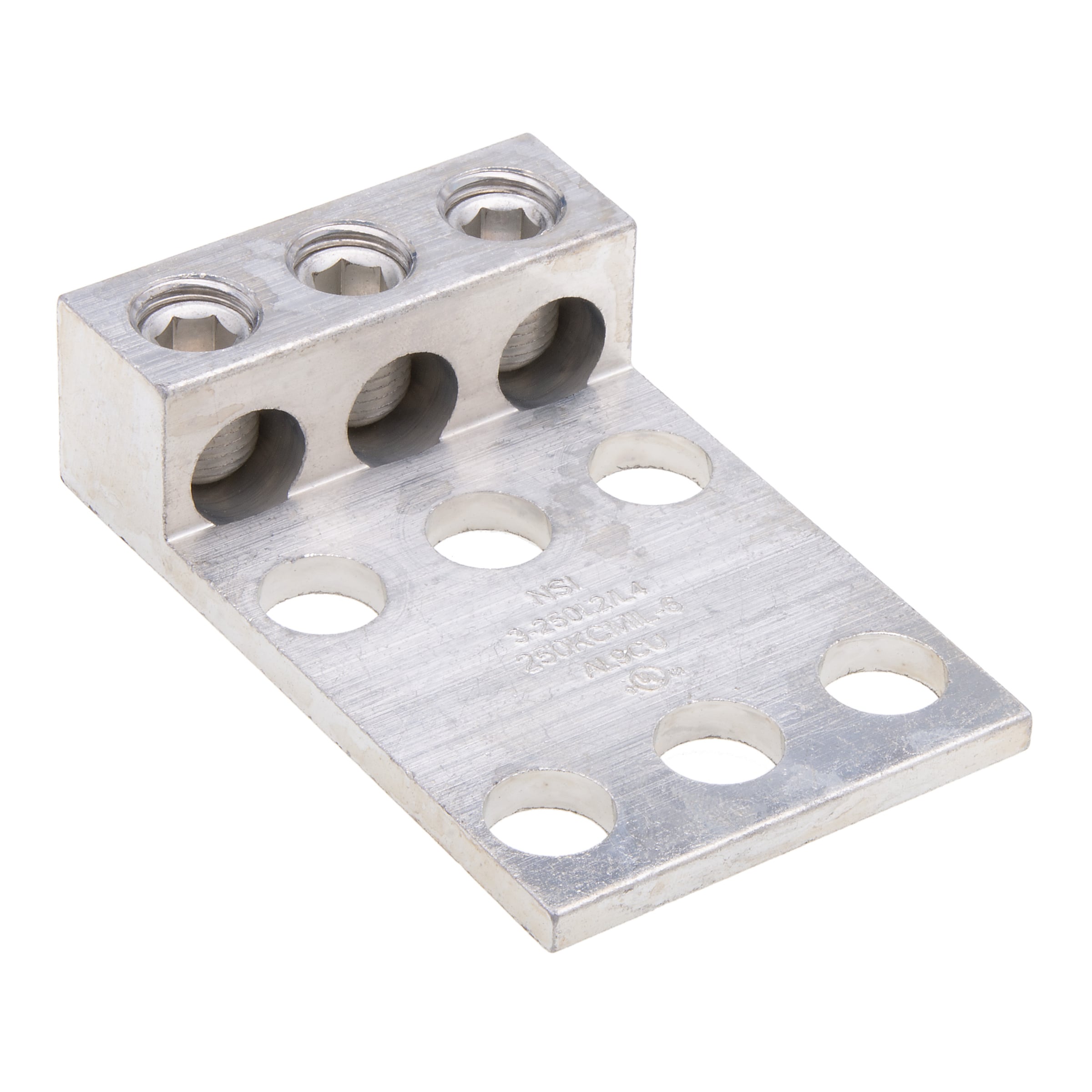

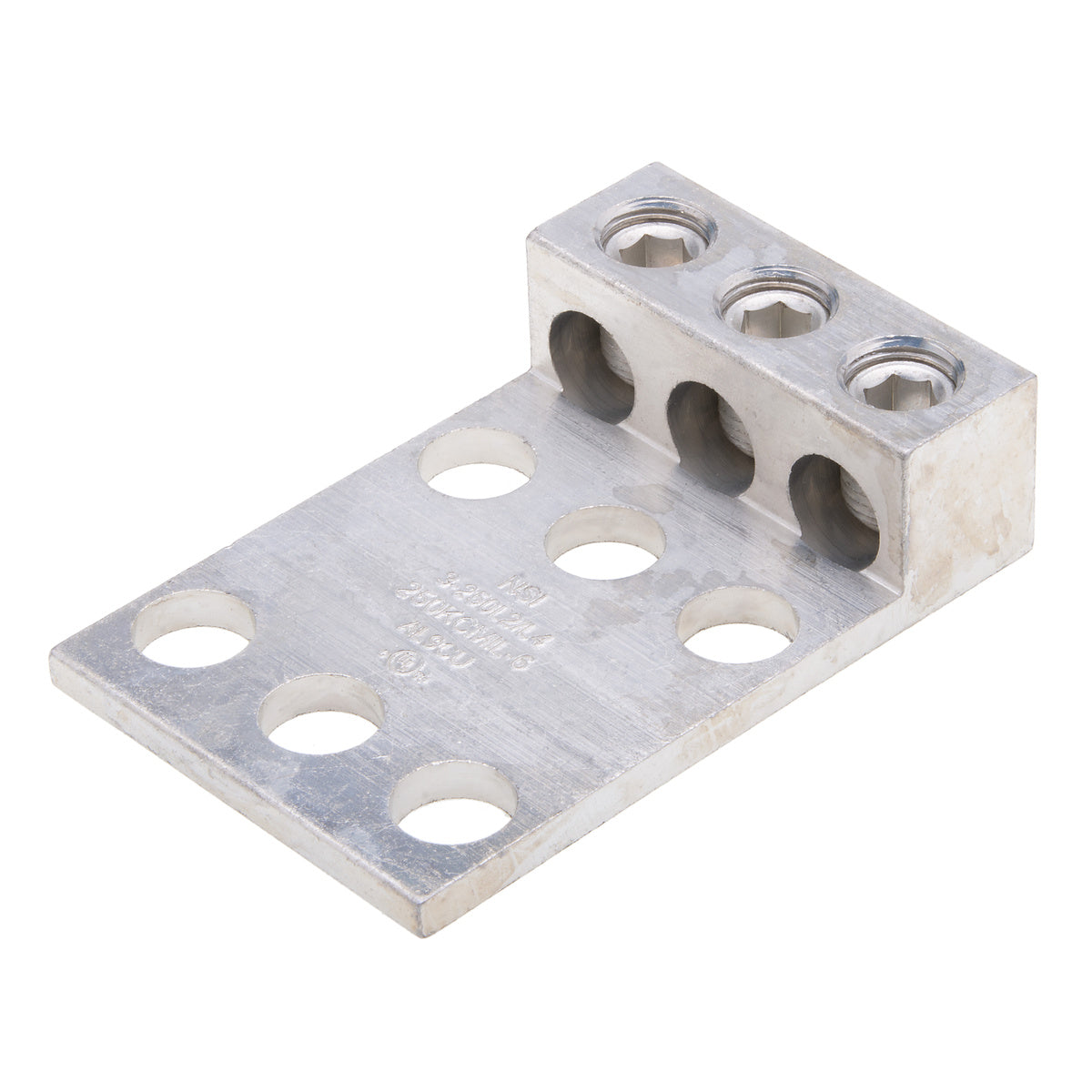

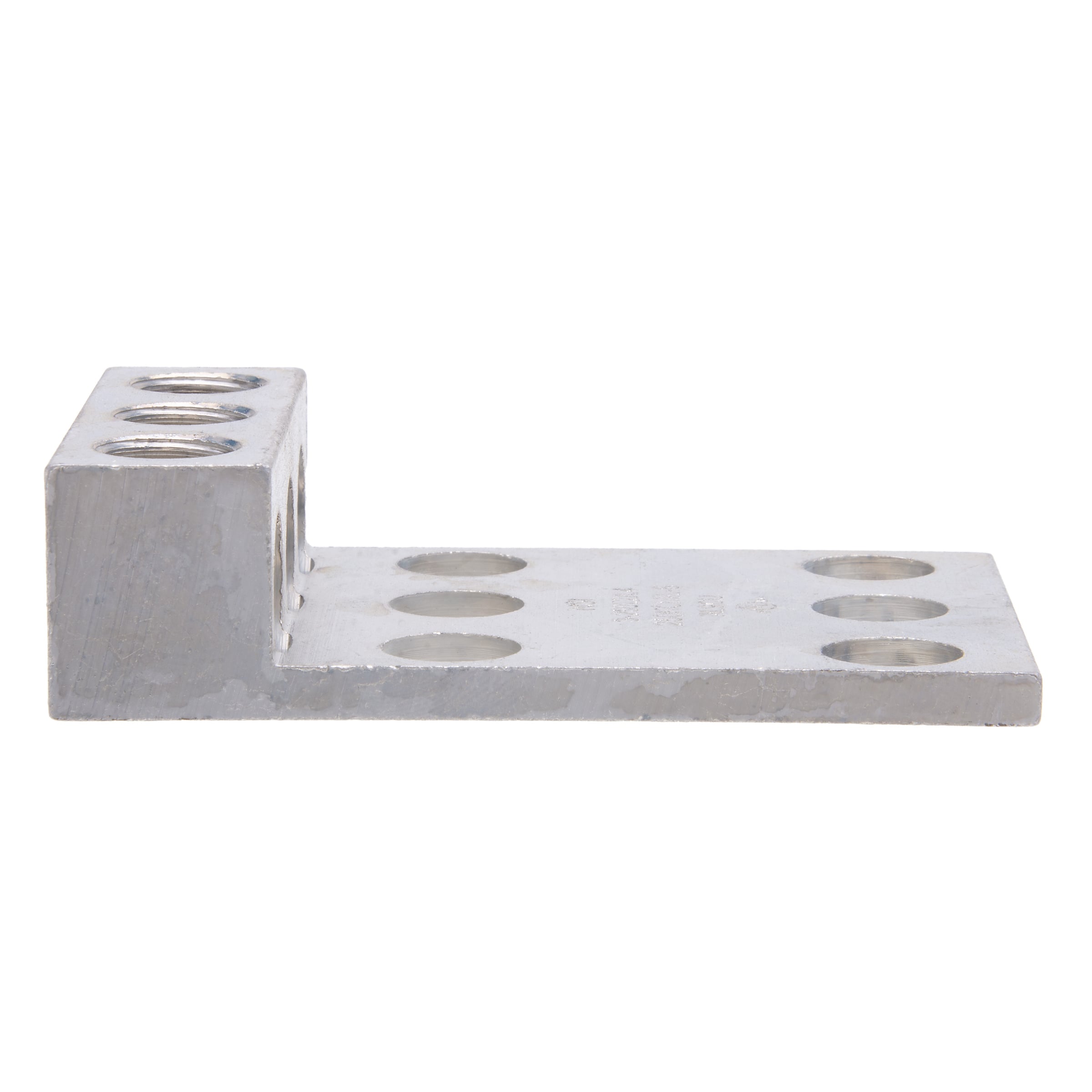

The NSI INDUSTRIES 3-250L2/L4 is a Nema Panel Lug designed for panelboard style multi-conductor applications with NEMA mounting hole spacing. It is made of 6061T-6 aluminum alloy and electro-tin plated for low contact resistance. This lug is suitable for use with copper or aluminum conductors.
- Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness
- Made of 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
Product Highlights
Nema Panel Lug with NEMA standard hole spacing of 1.750 inch, made from 6061T-6 aluminum alloy, and electro-tin plated.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: 3-250L2/L4
-
Country of Origin: US
Technical Specifications
-
Bolt Hole: 9/16 INCH
-
Gauge: 250KCMIL - #6
-
Holes: 1 HOLE
-
Inspection Hole: NO
-
Lug Material: ALUMINUM
-
Type: MECHANICAL
-
UNSPSC Code: 39121400
-
Voltage Rating: 600 V
-
Material: 6061T-6 Aluminum Alloy
-
Finish: Tin Plated
-
Pack Qty: 3
-
Ul Standard: UL 486A-486B
-
Conductor Type: Aluminum, Copper
-
Tang Length: 3.01
-
Hole Spacing: 1.75
-
Wire Range: 250 MCM ">">– 6 AWG
-
Assortment: Aluminum Mechanical Terminations
-
PRODUCT CATEGORY: Mechanical Connectors
-
Product Family (L1): Connectivity
-
Product Category (L3): Mechanical Connectors
-
Product Assortment: Aluminum Mechanical Terminations
-
Primary Parent Category: Mechanical Terminals
-
PRODUCT GROUP: Power Connectors and Grounding
-
Product Group (L2): Power Connectors and Grounding
-
PRODUCT HEIGHT (IN): 1.02
-
Tang Thickness (IN): 0.22
-
Tang Width (IN): 2.5
-
TITLE: Nema Panel Lug (3)250-6
-
UPC: 66238100150
-
UPC w/ check digit: 662381001504
-
PRODUCT LENGTH (IN): 3.880
-
PRODUCT LINE: Mechanical Terminals
-
Product Line (L4): Mechanical Terminals
-
PRODUCT NUMBER: 3-250L2/L4
-
Product Series: L
-
PRODUCT WIDTH (IN): 2.500
-
Short Description (invoice): Nema Panel Lug (3)250-6
-
SKU: 3-250L2/L4
-
Additional Title: Nema Panel Lug (3)250-6
-
DATE LAST UPDATED: 10/5/2023
-
EAN: 662381001504
-
EAN w/ check digit: 0662381001504
-
Fits Bolt Size (in): 5/16
-
COUNTRY OF ORIGIN: US
-
Application: Terminate
-
BRAND: NSI
-
CERTIFICATIONS & STANDARDS: cULus, UL Listed
-
KEYWORDS: NSI 3-250L2/L4 NEMA PANELBOARD LUG
-
Long Descriptions (catalog Description): 3 Port Panelboard Lug 250 MCM - 6 AWG Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-
-
MANUFACTURER: NSI Industries
-
MARKETING COPY: 3 Port Panelboard Lug 250 MCM - 6 AWG Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-
-
MATERIAL: 6061T-6 Aluminum Alloy
-
Max Temperature (C): 90
-
Min Installation Temperature (C): 90
-
Compatible Mounting Type: Wire
-
Connector Style: Crimp
