Nsi Industries 232 Emt Conduit Connector Set Screw 1 in

Product Description

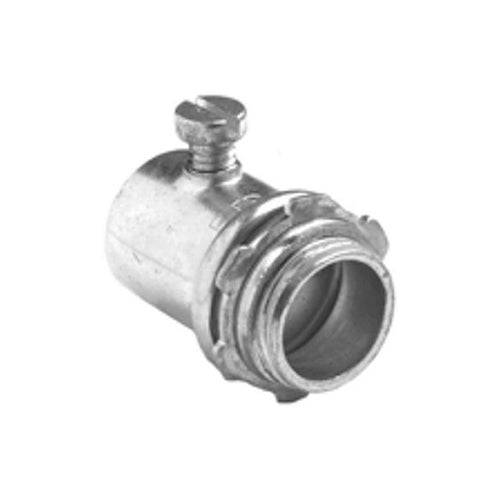

The NSI INDUSTRIES 232 is a set screw-type EMT conduit connector made from zinc electroplated steel and rated for concrete-tight installations. It accepts 1-inch trade size EMT conduit and secures it to a knockout with a Tri Drive Slot, Phillips, and Robertson head screw — giving electricians flexibility with common hand tools. The non-insulated throat design suits standard metallic raceway runs. At 0.191 pounds per unit, the 232 is a lightweight, high-volume fitting stocked in packages of 250 for production wiring work. It carries UL 514B approval for both US and Canadian installations and meets Federal Specification A-A-50553 and NEMA FB-1 requirements.

This connector is used on 1-inch EMT conduit in residential, commercial, and light industrial electrical installations. It is suited for panel feeds, branch circuit raceways, and equipment connections where a concrete-tight fitting is required. Licensed electricians install this fitting when transitioning EMT conduit into enclosures, junction boxes, and panels. The 250-piece standard package supports high-volume rough-in work on commercial jobsites.

Key Features

• Concrete-tight construction meets requirements for installations in or near concrete
• Tri Drive Slot, Phillips, and Robertson head screw for tool flexibility on the job
• Zinc electroplated steel construction for corrosion resistance in standard indoor and protected outdoor applications
• Non-insulated throat for direct metallic continuity with the conduit system
• UL 514B listed for both US and Canadian use
• ROHS compatible; meets Federal Specification A-A-50553 and NEMA FB-1

Compatibility

Designed for use on 1-inch trade size EMT conduit. Compatible with standard 1-inch EMT knockout entries on enclosures, panels, and junction boxes per UL 514B.

Installation Notes

Installation is performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits in the enclosure before making conduit entries. Insert the conduit fully into the connector throat before tightening the set screw. Do not over-drive the set screw to the point of deforming the conduit wall.

Technical Specifications

• Type: Set Screw
• Trade Size: 1 inch
• Used On: EMT Conduit
• Material: Zinc Electroplated Steel
• Constructional Feature: Concrete-Tight
• Throat Type: Non-Insulated
• Thread Length: 0.125 inches
• Weight: 0.191 pounds
• Standard Package: 250
• Approvals: UL 514B, UL Canada and US
• Applicable Standards: Federal Specification A-A-50553, NEMA FB-1
• ROHS Compatible: Yes
• Country of Origin: India

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: 232
