NSi Industries 2007B NSI TURNLOCK RELAY ELECTRONIC 105-305V IR

Product Description

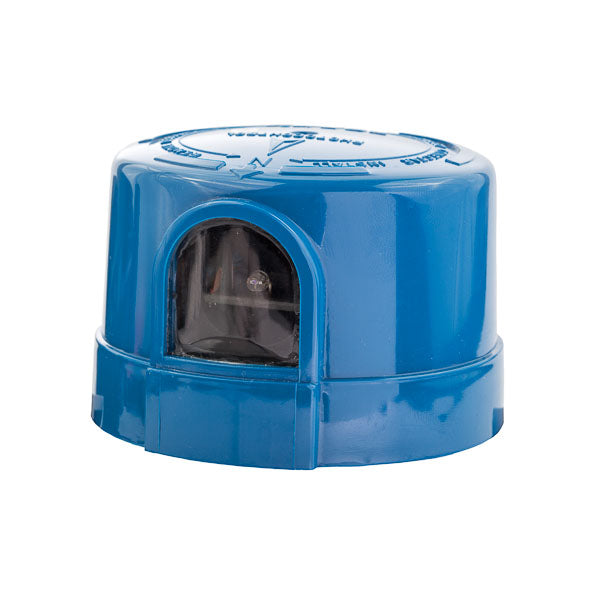

NSi Industries 2007B is an electronic photocontrol designed for lighting control applications. This product operates at a voltage range of 105 to 305 VAC and is suitable for tungsten and ballast loads, providing reliable performance in street and highway lighting. It features a turn lock mount for easy installation.

• Voltage Rating: 105 to 305 VAC
• Operating Temperature Range: -40 to 158 degrees Fahrenheit
• Mounting Type: Turn Lock

Product Highlights

This photocontrol has a molded sealed infrared sensor that resists moisture and airborne contaminants, making it durable in various environmental conditions. The unit supports an amperage rating of four amps and provides a sensitivity of 1.5 foot-candle for activation.

Product Information

Standard Information

• Manufacturer: NSi Industries
• Manufacturer Part Number: 2007B

Technical Specifications

• Type: Instant Response
• Frequency Rating: 50/60 Hz
• Amperage Rating: 4 A
• Ballast Load: 1800 VA
• Tungsten Rating: 1000 W
• Arrester: 360 J
• Dimensions: 2.187 inches H x 3.187 inches W
• Operating Cycles: 6000 Cycles
• Material: Polycarbonate
• Standards/Approvals: UL 773, ANSI C136.10, EEI Listed, cULus Listed
• Environmental Conditions: -40 to 158 degrees Fahrenheit
• Sensitivity: 1.5 FC (ON), 1.5:1 FC Average (OFF) to (ON) Ratio
