Product Description

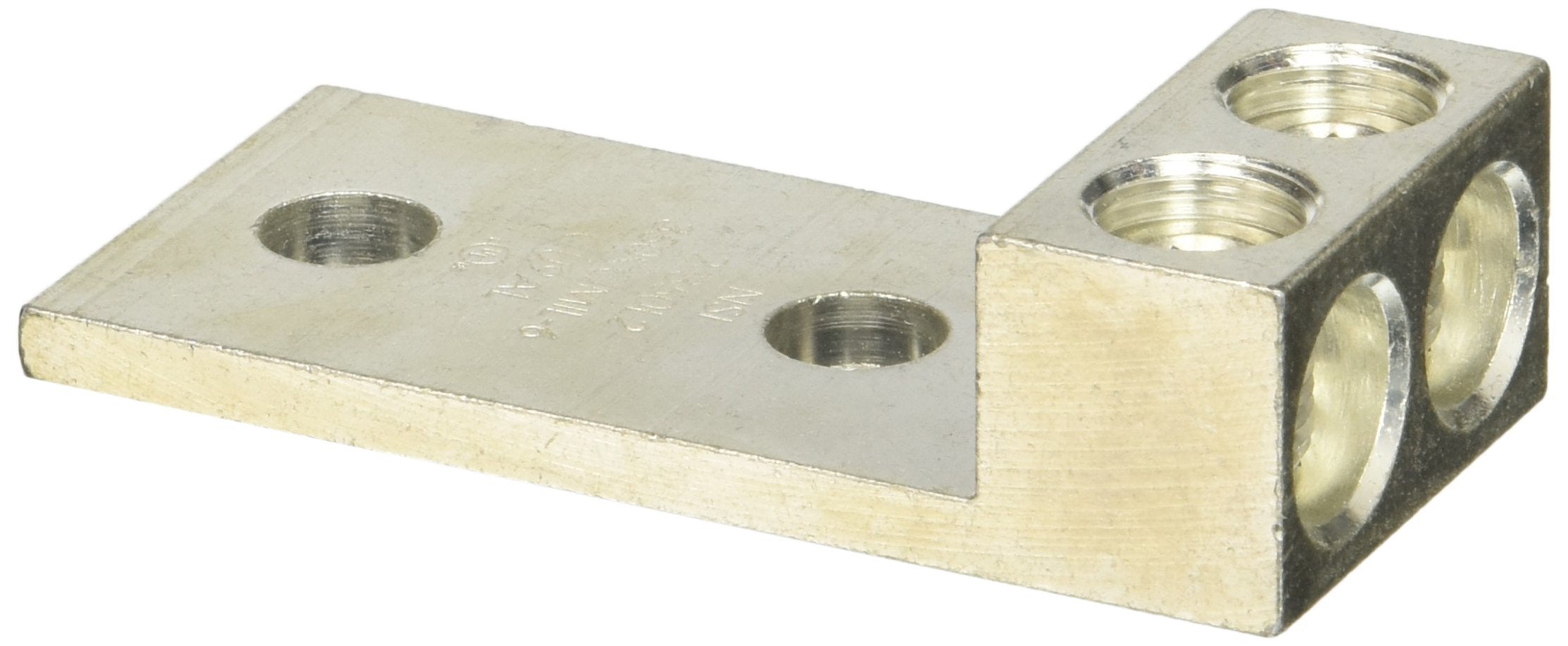

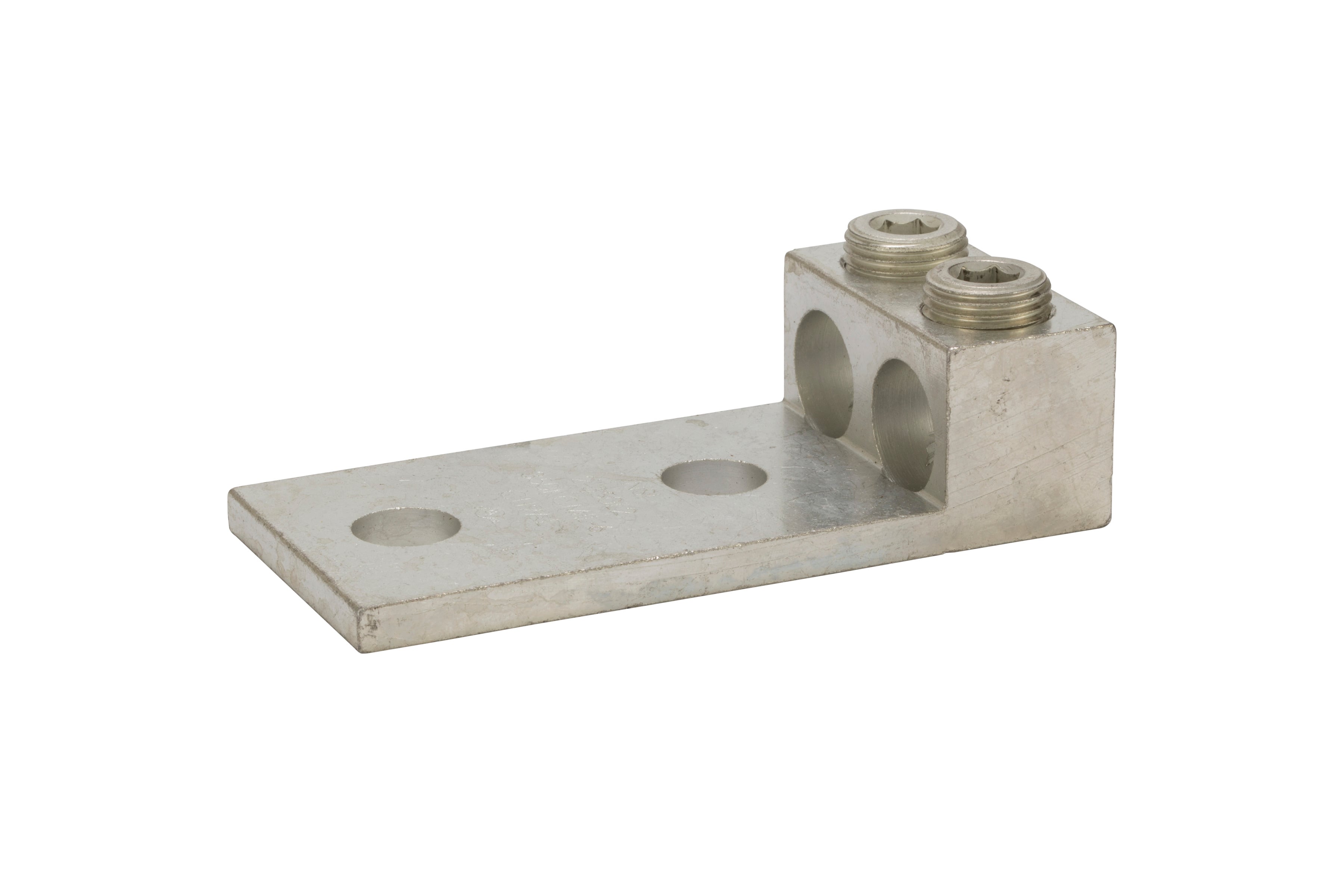

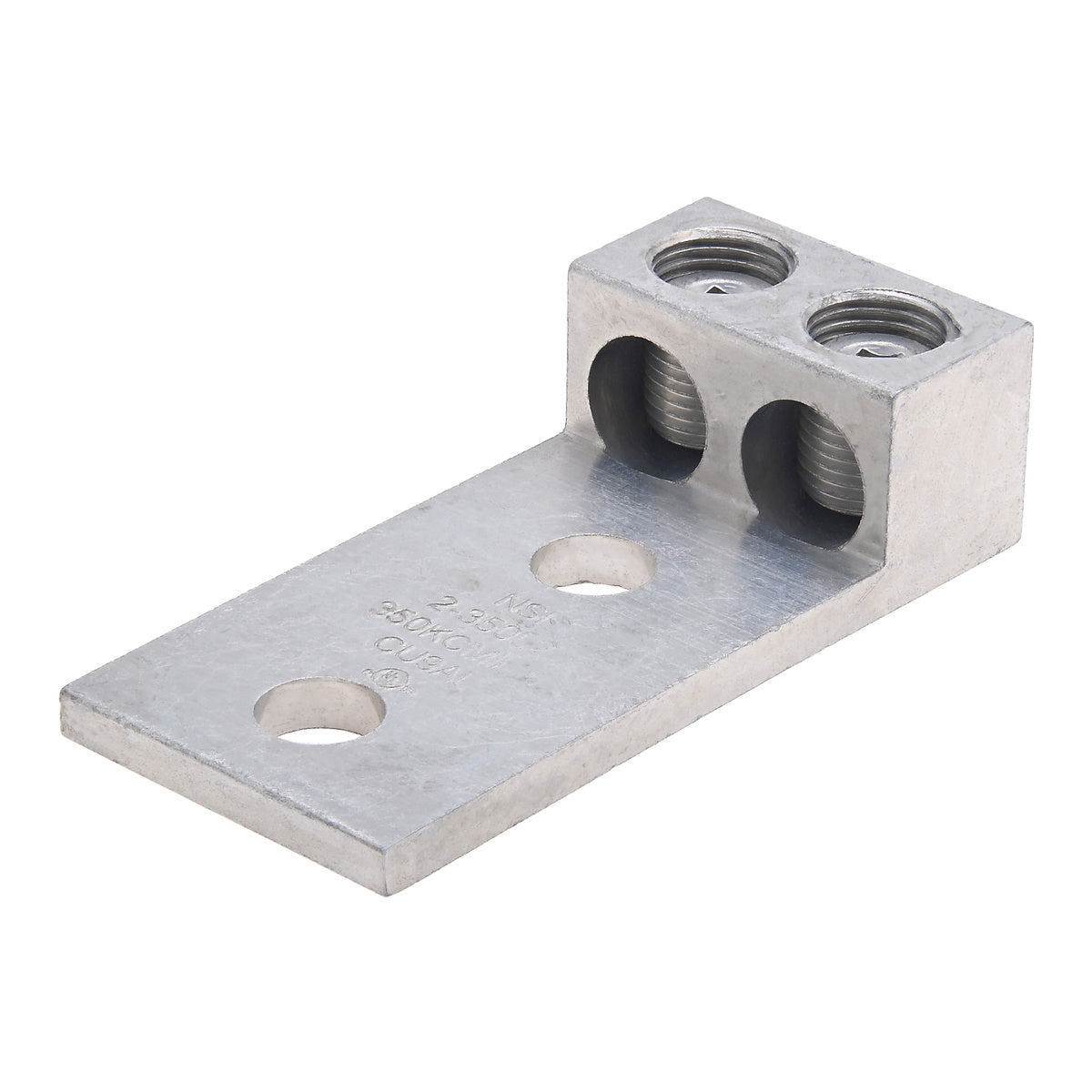

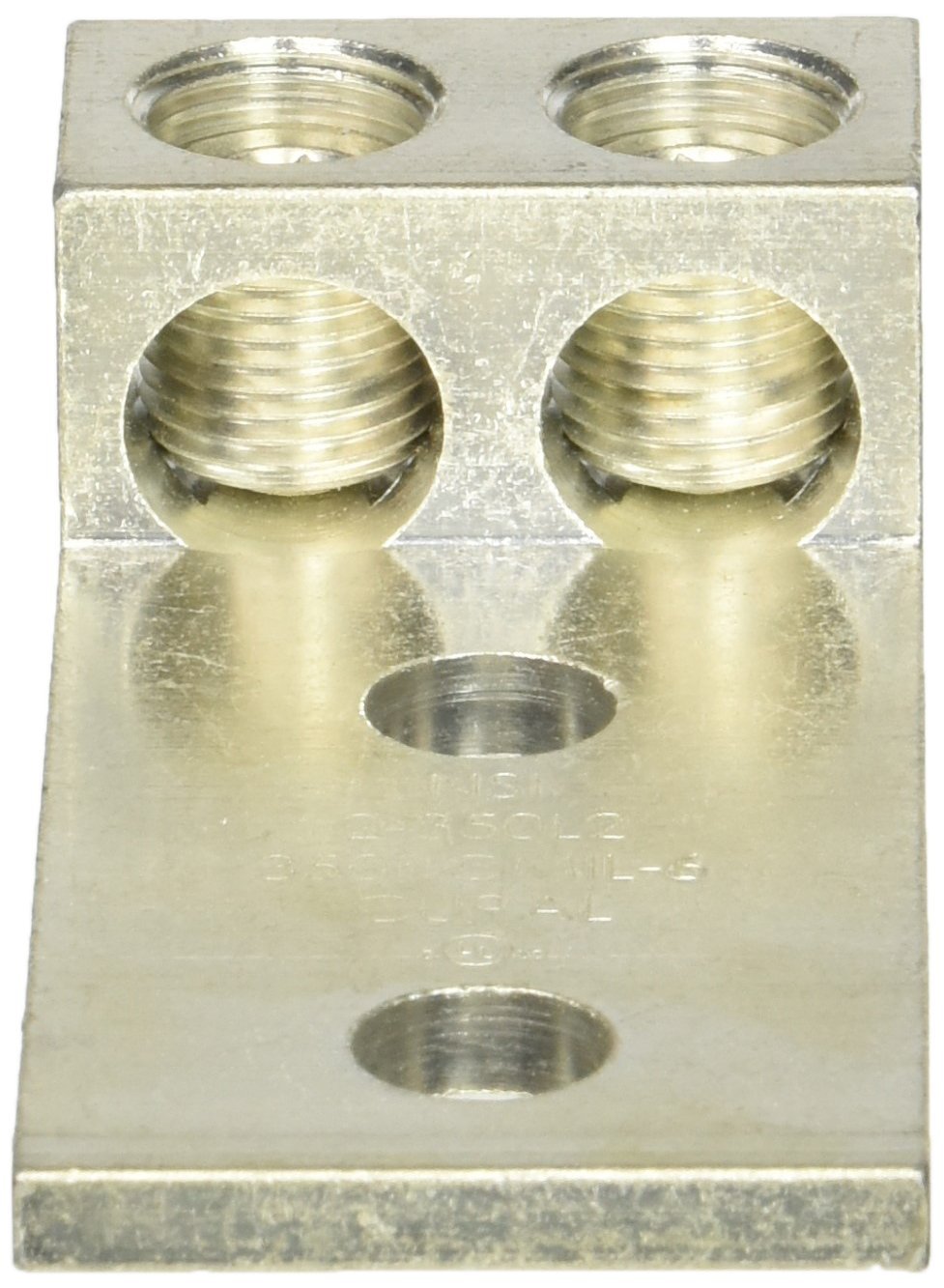

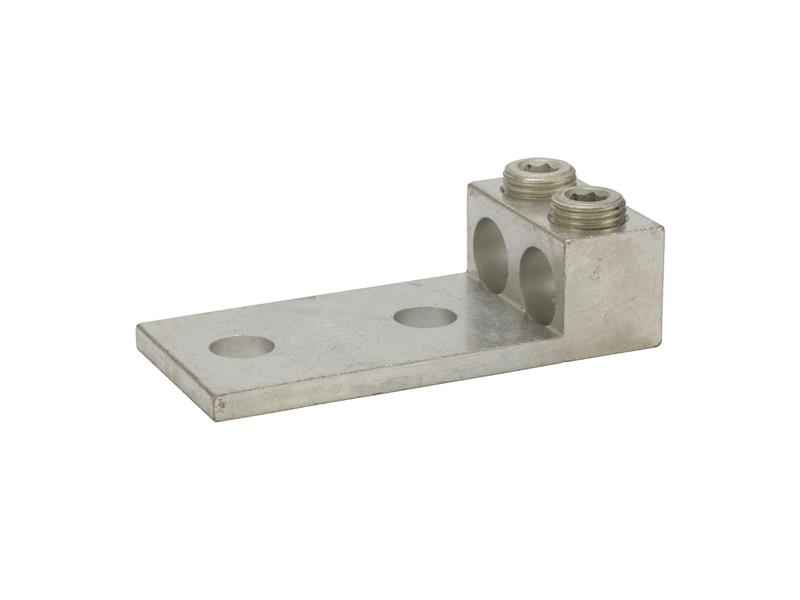

The NSI INDUSTRIES 2-350L2 is a 2-port panelboard lug designed for multi-conductor use with NEMA mounting hole spacing. It is made of 6061T-6 aluminum alloy and electro-tin plated for low contact resistance. Suitable for use with copper or aluminum conductors and is rated 600 volts. Temperature rating 90 degrees C.
- Panelboard style for multi-conductor
- NEMA mounting hole spacing for turn prevent and secureness
- Made of 6061T-6 aluminum alloy
Product Highlights
This panelboard lug ensures secure connections and is suitable for various electrical applications requiring reliable termination.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: 2-350L2
-
Country of Origin: United States
Technical Specifications
-
UNSPSC: 39121408
-
Stud Size: 1/2 in.
-
Quantity: 1 Count
-
Rated: 600 Volts
-
Ports: 2
-
Set Screws: 2
-
Mounting Holes: 2
-
Wire Range (CU-AL): 350 MCM-6 AWG
-
Torque Value (IN/LBS): 400
-
Wrench Size: 5/16
-
Length: 4.25 in.
-
Height: 1.13 in.
-
Width: 1.92 in.
-
Mtg. Hole: 0.56
-
Voltage Rating: 600 V
-
Material: 6061T-6 Aluminum Alloy
-
Finish: Tin Plated
-
Pack Qty: 4
-
GTIN: 662381001412
-
UPC: 662381001412
-
EAN: 0662381001412
-
Ul Standard: UL 486A-486B
-
Conductor Type: Aluminum, Copper
-
Tang Length: 3.25
-
Hole Spacing: 1.75
-
Wire Range: 350 MCM – 6 AWG
-
Assortment: Aluminum Mechanical Terminations
-
Brand: NSI Industries
-
MPN: 2-350L2
-
Manufacturer: NSI Industries
-
Type: Lugs
-
Weight: 4.80
-
Country of Origin: United States
-
Category: Business & Industrial
-
WIRE RANGE: 350 MCM - 6 AWG
-
PRODUCT HEIGHT (IN): 1.13
-
PRODUCT LENGTH (IN): 4.250
-
PRODUCT WIDTH (IN): 1.920
-
TANG WIDTH (IN): 1.92
-
TANG THICKNESS (IN): 0.25
-
WIRE RANGE ACSR - MAIN: 350 MCM - 6 AWG
-
APPLICATION: Terminate
-
PRODUCT CATEGORY: Mechanical Connectors
-
PRODUCT LINE: Mechanical Terminals
-
PRODUCT NUMBER: 2-350L2
-
PRODUCT GROUP: Power Connectors and Grounding
-
Fits Bolt Size (in): 5/16
-
Pack Size: 1
-
Max Temperature (C): 90
-
Min Installation Temperature (C): 90
-
CERTIFICATIONS & STANDARDS: cULus, UL Listed
