Product Description

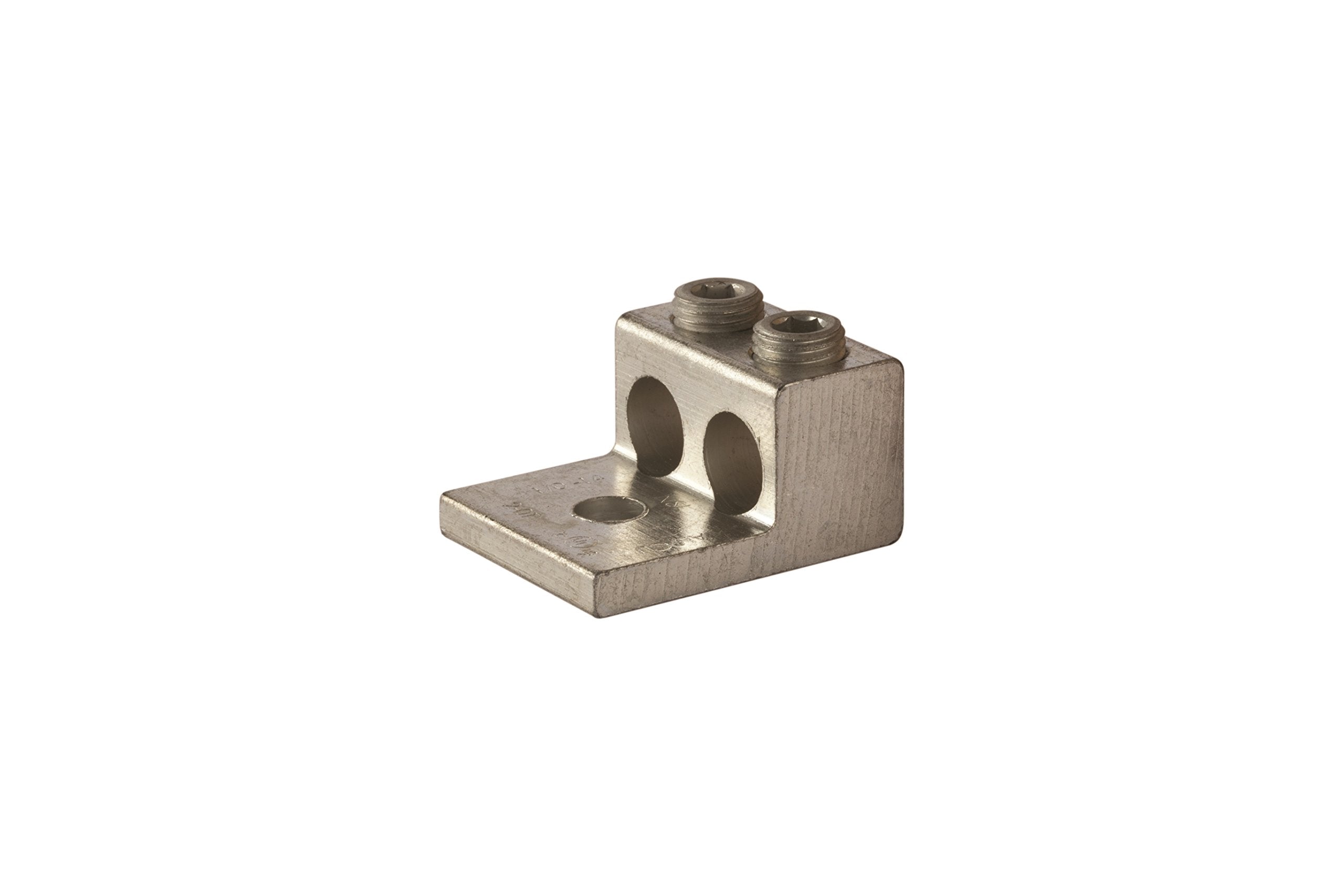

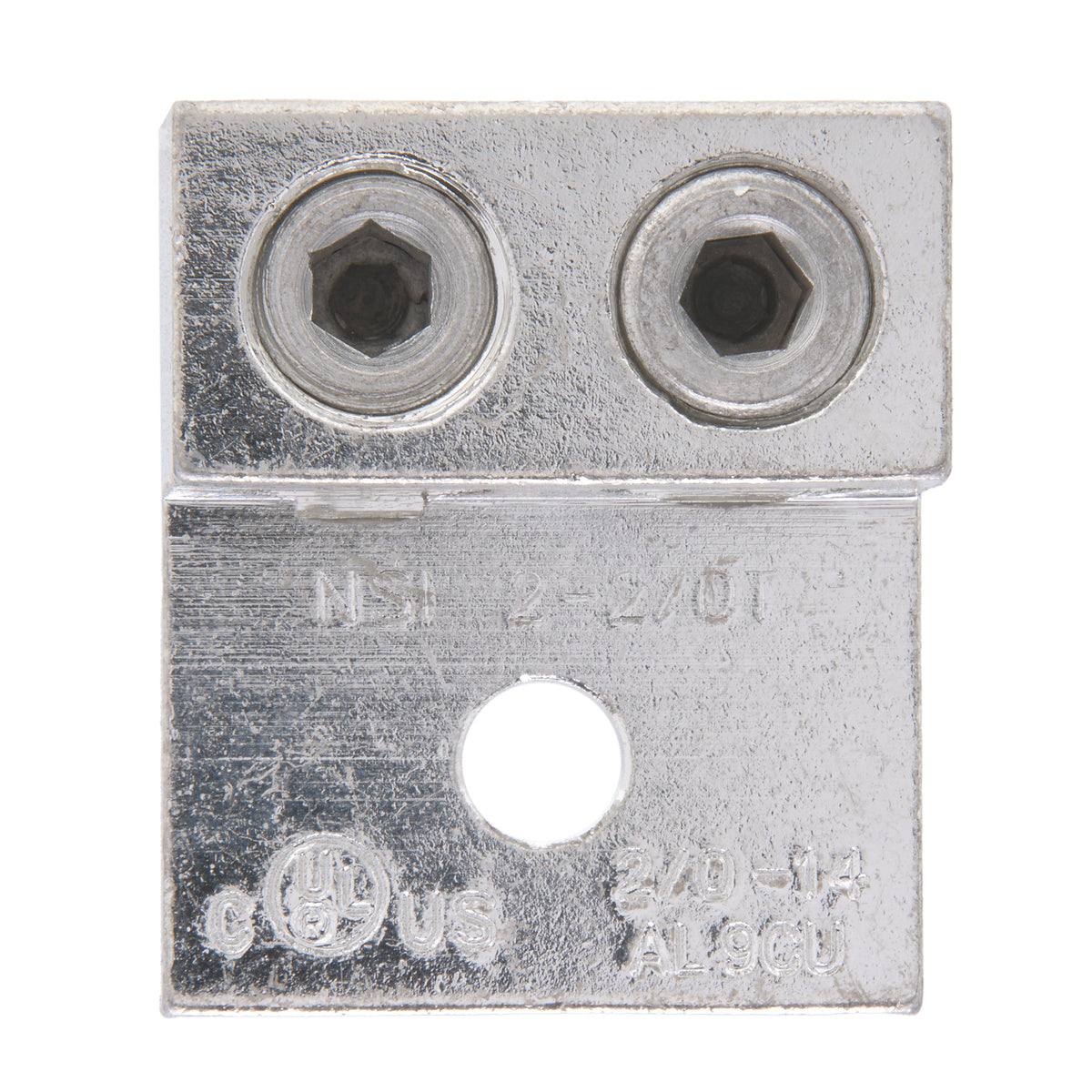

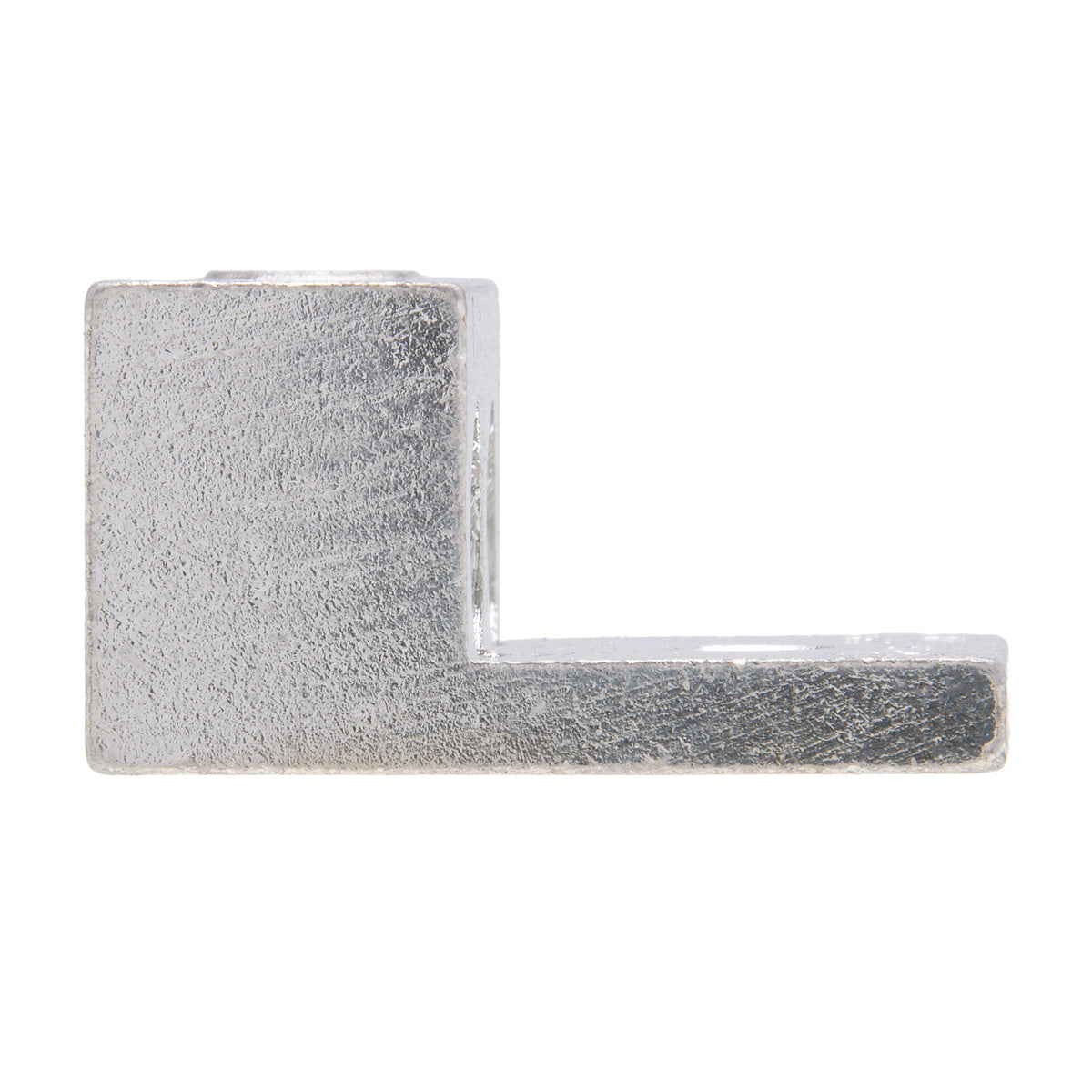

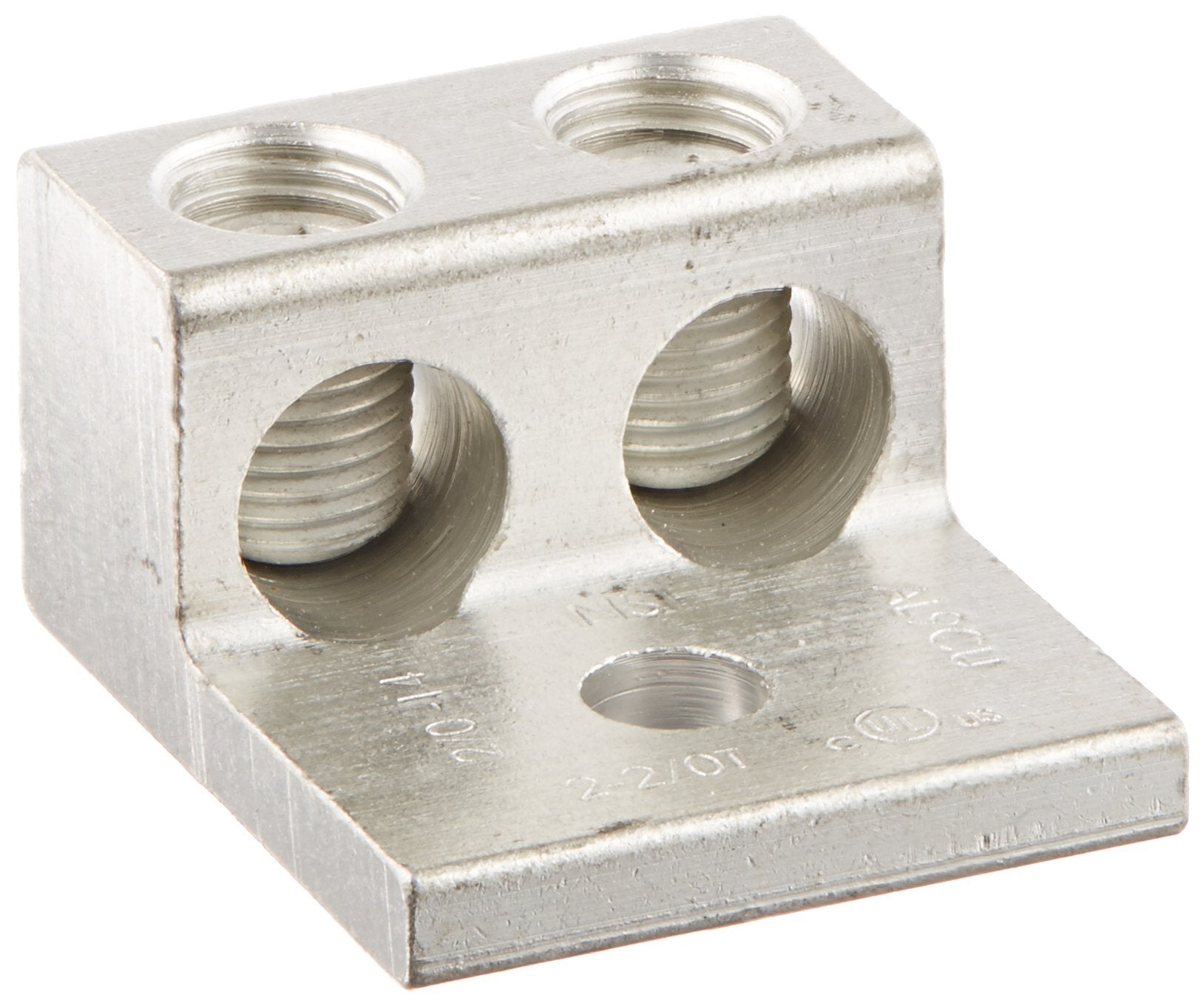

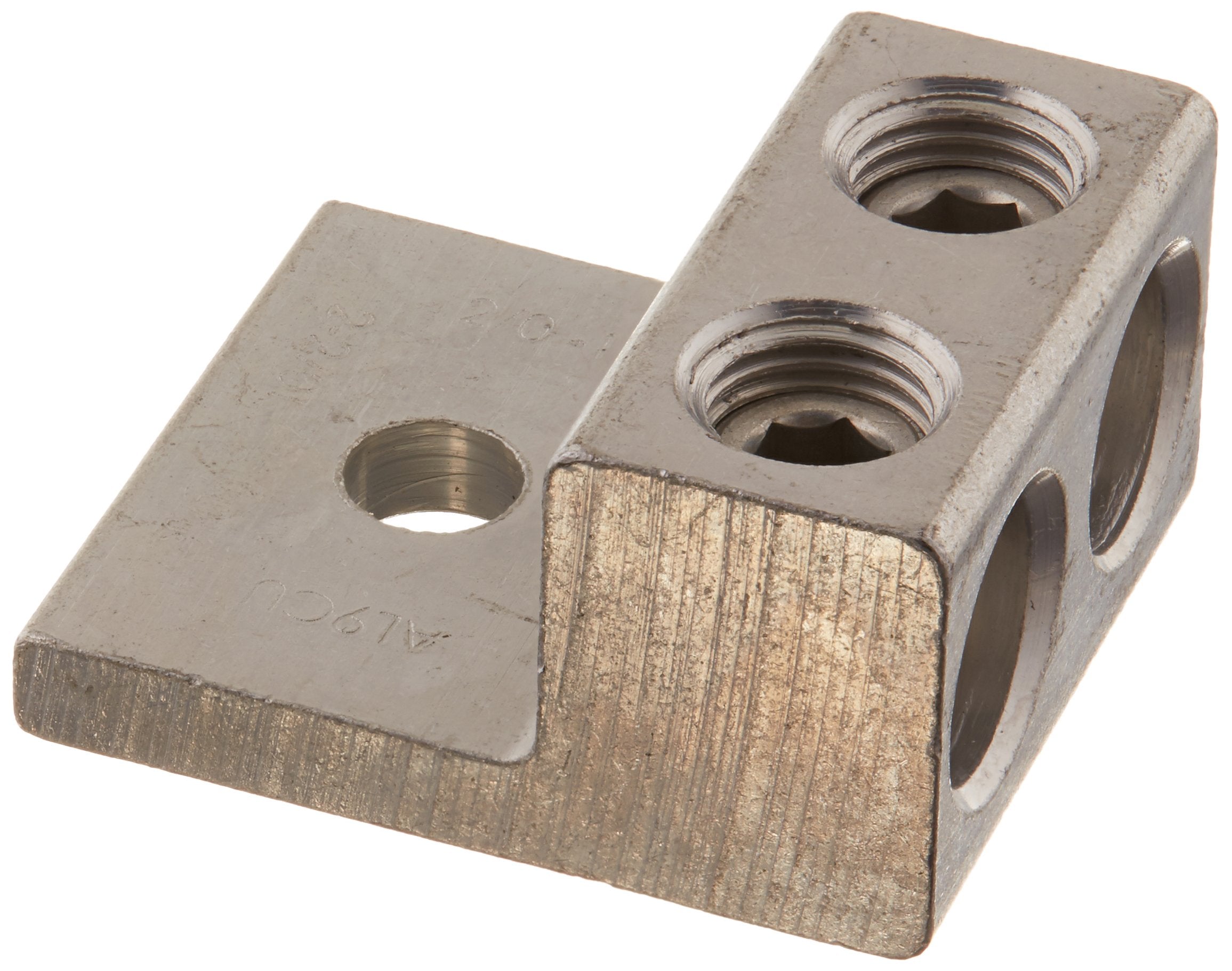

The NSI INDUSTRIES 2-2/0T dual-rated lug is designed for connecting electrical wires, accommodating wire gauges from #2/0 to #14 AWG. Constructed from aluminum with a mechanical type and 2 holes, this lug features a 1/4 inch bolt hole and no inspection hole. It is versatile and reusable, made of 6061T-6 aluminum alloy with electro-tin plating for low contact resistance.
- Accommodates wire gauges from #2/0 to #14 AWG
- Made of 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
Product Highlights
This dual-rated lug is suitable for use with both copper and aluminum conductors, rated at 600 volts and 90 degrees C, and UL 486A/B Listed.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: 2-2/0T
-
Country of Origin: India
Technical Specifications
-
Bolt Hole: 1/4 INCH
-
Gauge: #2/0 - #14
-
Holes: 2 HOLE
-
Inspection Hole: NO
-
Lug Material: ALUMINUM
-
Type: MECHANICAL
-
Brand: NSI Industries
-
Width: 1.250 in
-
Finish: Tin Plated
-
Height: 0.79 Inch
-
Length: 1.47 Inch
-
Voltage: 600 Volt
-
Material: 6061T-6 Aluminum Alloy
-
Standard: CULUS
-
Bolt Size: 1/4 IN
-
Sub Brand: Mechanical Connector
-
Wire Size: 14-00 AWG
-
Applications: Wire Termination
-
Mounting Hole: 1
-
Conductor Size: 14-2/0 AWG
-
Max Temperature: 90 degrees C
-
Number of Poles: 1 Pole
-
Number of Ports: 2
-
Temperature Rating: 90 degrees C
-
Number of Conductors: 2
-
Buy American Compliant: Y
-
Environmental Conditions: 90 degrees C
-
ECCN: EAR99
-
Stud Size: 1/4 in.
-
Wire Range: 2/0 AWG – 14 AWG
-
Approval: UL (Canada and US), UL 486A/B
-
Maximum Conductor Size: 2/0 AWG
-
Minimum Conductor Size: 14 AWG
-
Pad Size: 0.85 Inch Length x 1.25 Inch Width x 0.19 Inch Thickness
-
Screw Type: 3/16 Inch Internal Hex Pressure Screw
-
Overall Length: 1.47 Inch
-
Quantity: 1 Count
-
Rated: 600 Volts
-
Ports: 2
-
Set Screws: 2
-
Mounting Holes: 1
-
Wire Range (CU-AL): (2) 2/0 -14 AWG
-
Torque Value (IN/LBS): 120
-
Wrench Size: 3/16
-
MTG. Hole: 1/4
-
Voltage Rating: 600 V
-
Conductor Type: Aluminum, Copper
-
Tang Length: 0.85
-
Assortment: Aluminum Mechanical Terminations
-
Application: Terminate
-
Ul Standard: UL 486A-486B
