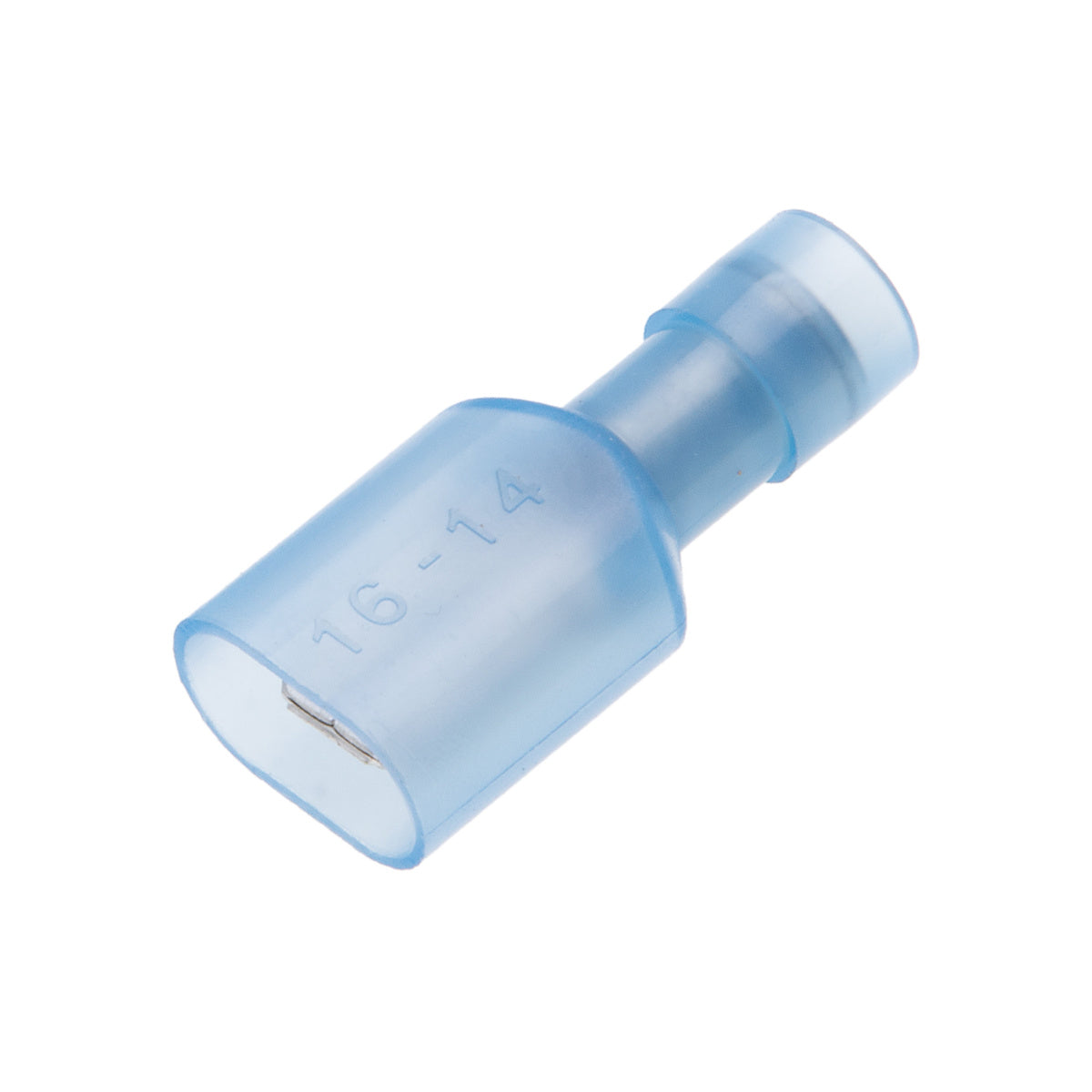

NSI IM16-250-3N-S Wire Terminal Fully Insulated Male Disconnect Nylon 16-14 Awg .250 X .032

Product Description

The NSI Industries IM16-250-3N-S is a fully insulated male disconnect terminal designed for use with 16 to 14 AWG conductors. This terminal features a butted seam barrel and a standard tab size of 0.25 x 0.032 inches. It is suitable for applications requiring reliable electrical connections with a voltage rating up to 600 volts.

• Compatible with 16 to 14 AWG wire sizes
• Butted seam barrel for enhanced connectivity
• Temperature rated for up to 105 degrees Celsius

Product Highlights

This terminal is ideal for wire termination applications in various electrical devices and systems.

Product Information

Standard Information

• Conductor Size: 16 to 14 AWG
• Voltage Rating: 600 V

Technical Specifications

• Barrel Type: Butted Seam
• Color: Blue
• Dimensions: 0.925 in L x 0.249 in W
• Series: IM Series
• Specifications: 1-Terminal, Nylon Fully Insulated
• Tab Size: 0.25 x 0.032 in
• Temperature Rating: 105 degrees C
• Manufacturer: NSI Industries Inc
