NSI IFL16-250-3N 16-14 Insulated Flag 600 Volt 50 Pack

Product Description

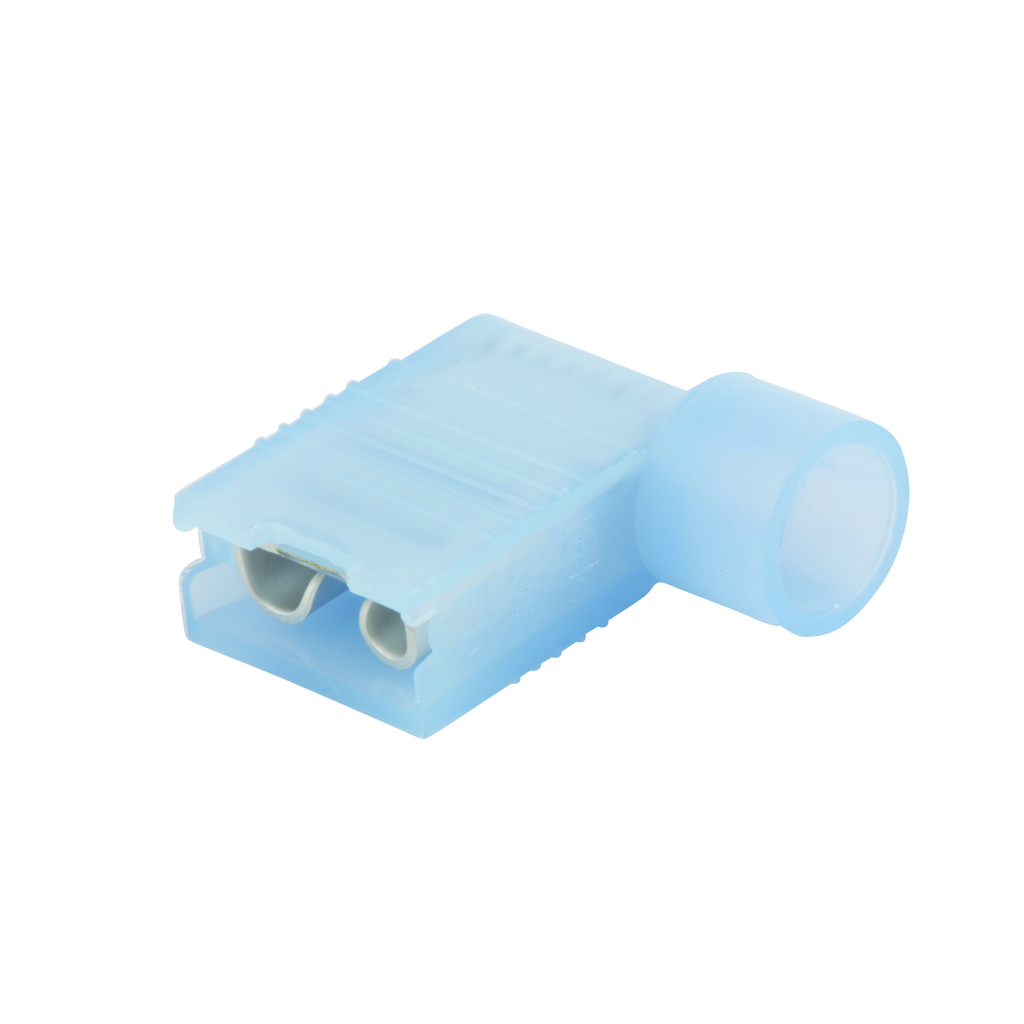

The NSI Industries IFL16-250-3N is an insulated female flag terminal suitable for wires sized sixteen to fourteen AWG. Each pack contains fifty terminals, making it ideal for various electrical connections. This terminal has a tab size of point two five inches wide by point zero three two inches thick and is rated for six hundred volts, ensuring robust performance in diverse applications.

• Pack of fifty terminals
• Rated for six hundred volts
• Fully insulated design for safe connections

Product Highlights

This product is designed for use in wire termination applications, providing a secure and efficient connection. The nylon insulation enhances durability and safety, making it suitable for environments where electrical connections are exposed to potential damage.

Product Information

Standard Information

• Brand: NSI Industries
• Color: Blue

Technical Specifications

• Conductor Size: Sixteen to fourteen AWG
• Voltage Rating: Six hundred VAC
• Material: Copper with nylon insulation
• Temperature Rating: One hundred five degrees Celsius
• Finish: Electroplated tin
• Series: IF Series
• Tab Size: Point two five inches W x point zero three two inches thick
• Dimensions: Point six three inches L x point three nine inches W
