Nsi HWHS8-2-6 Easy-Splice Heat Shrink Tubing 1000 VAC (6 in)

Product Description

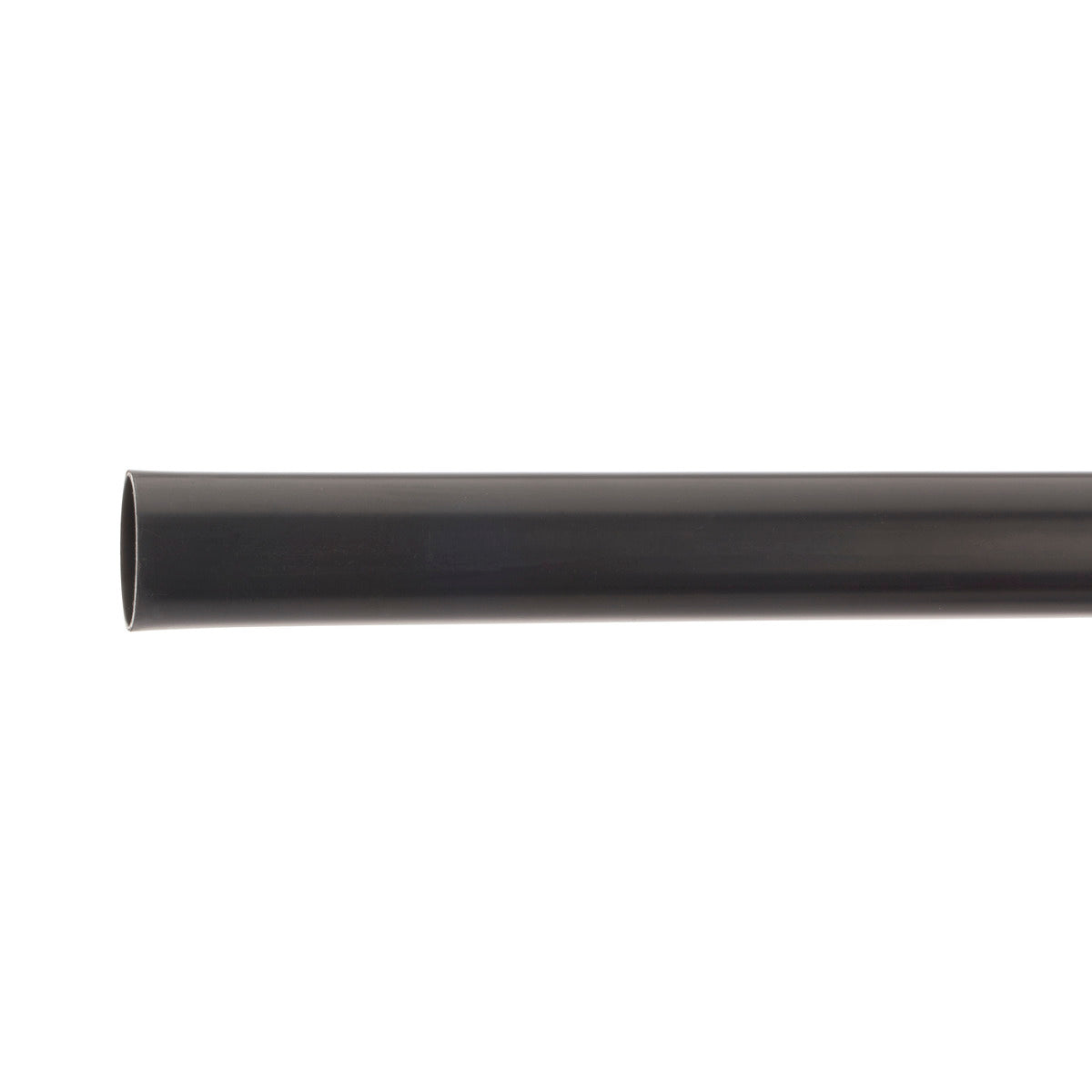

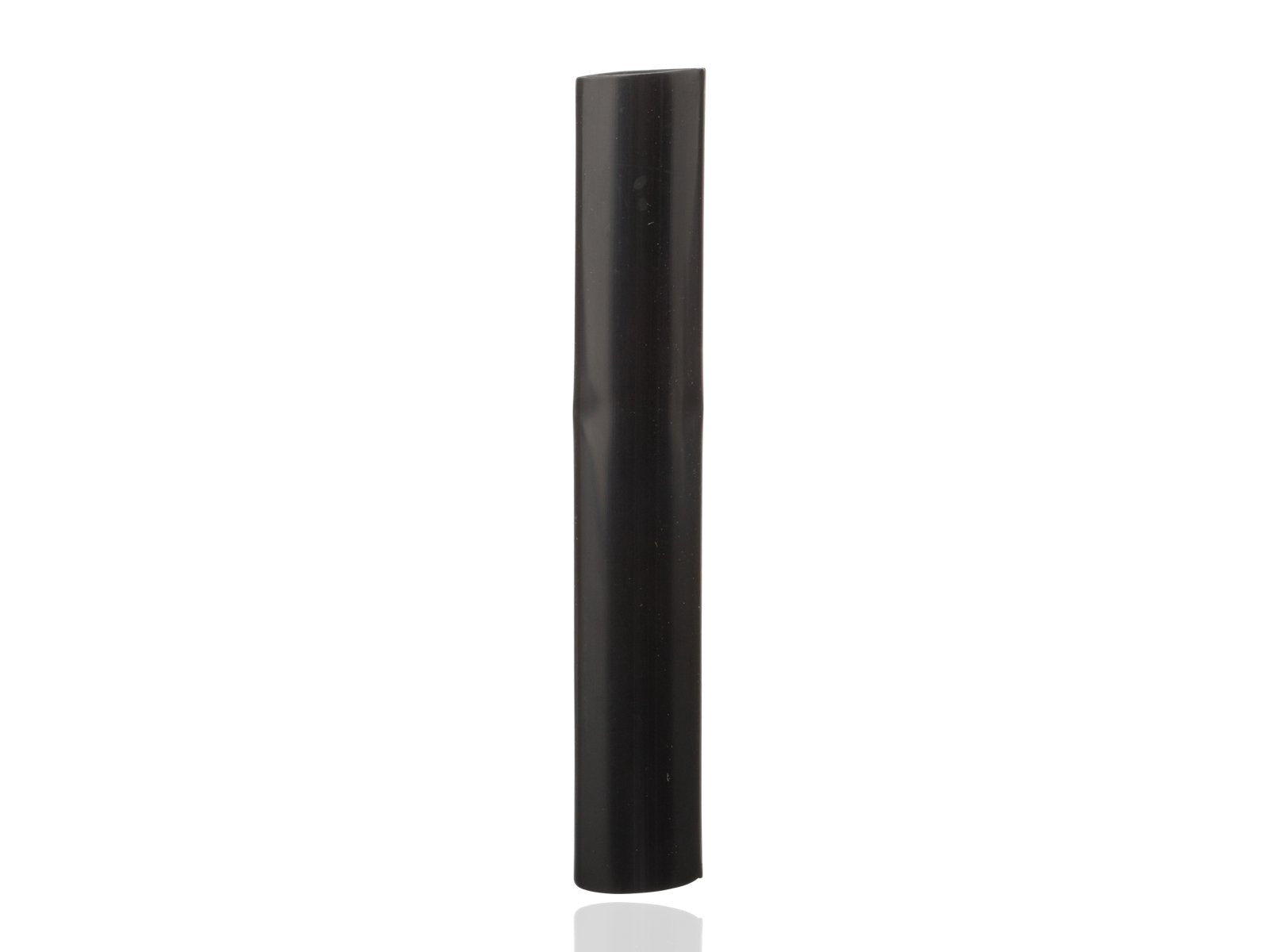

The NSI HWHS8-2-6 Easy-Splice™ Heat Shrink Tubing is a round, heavy-duty wall tubing made of polyolefin. This tubing is designed for 8 to 2 AWG wire with a voltage rating of 1000 VAC. It measures 6 inches in length, with an inner diameter of 0.55 inches when expanded and 0.17 inches when recovered, and is thermally stabilized to give the material elastic memory.

• Made of specially formulated polyolefin irradiated and thermally stabilized to give the material elastic memory
• Interior is coated with an adhesive that assures a watertight seal after shrinking
• RUS accepted for use as a secondary tap or splice cover, may be used for jacket repair on cables up to 35 kV

Product Highlights

The NSI HWHS8-2-6 heat shrink tubing provides a watertight seal for jacket repair, splice cover, and direct burial applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: HWHS8-2-6
• Country of Origin: China

Technical Specifications

• Series: HWHS
• Temperature Rating: 121 to 135 deg C
• Type: Round
• Voltage Rating: 1000 VAC
• Wall Type: Heavy Duty
• Wire Size: 8 to 2 AWG
• Inner Diameter Expanded: 0.55 in
• Inner Diameter Recovered: 0.17 in
• Length: 6 in
• Material: Polyolefin
• Approval: UL 486D, CSA C22.2
• Connector Overall Diameter: 0.41 Inch
• Seal Length per Side: 2 Inch
• Application: Jacket Repair Splice Cover, Direct Burial and Submersible
• Applicable Standard: ANSI C119.1
