Nsi HWHS6-40-6 Easy-Splice Heat Shrink Tubing 6 inch

Product Description

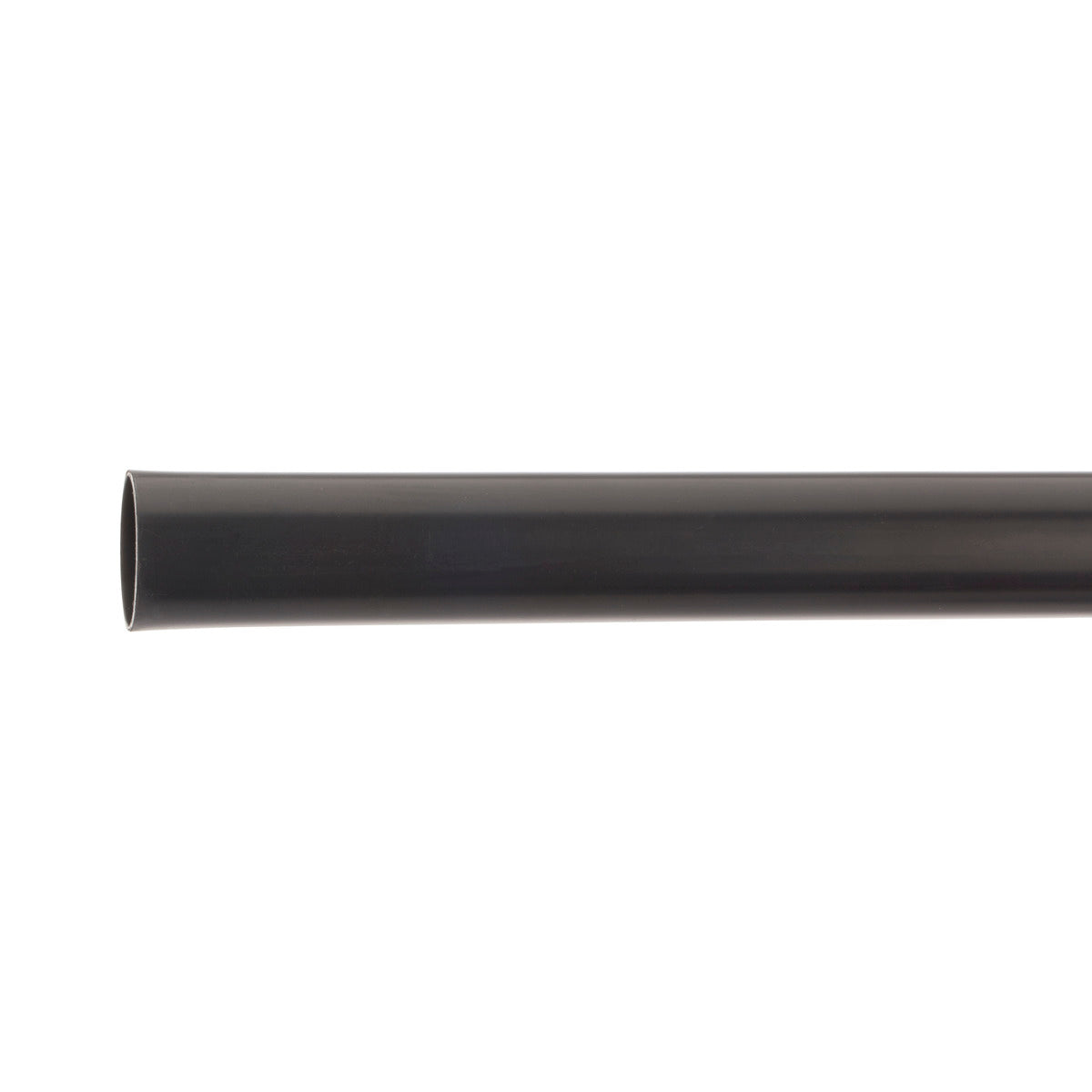

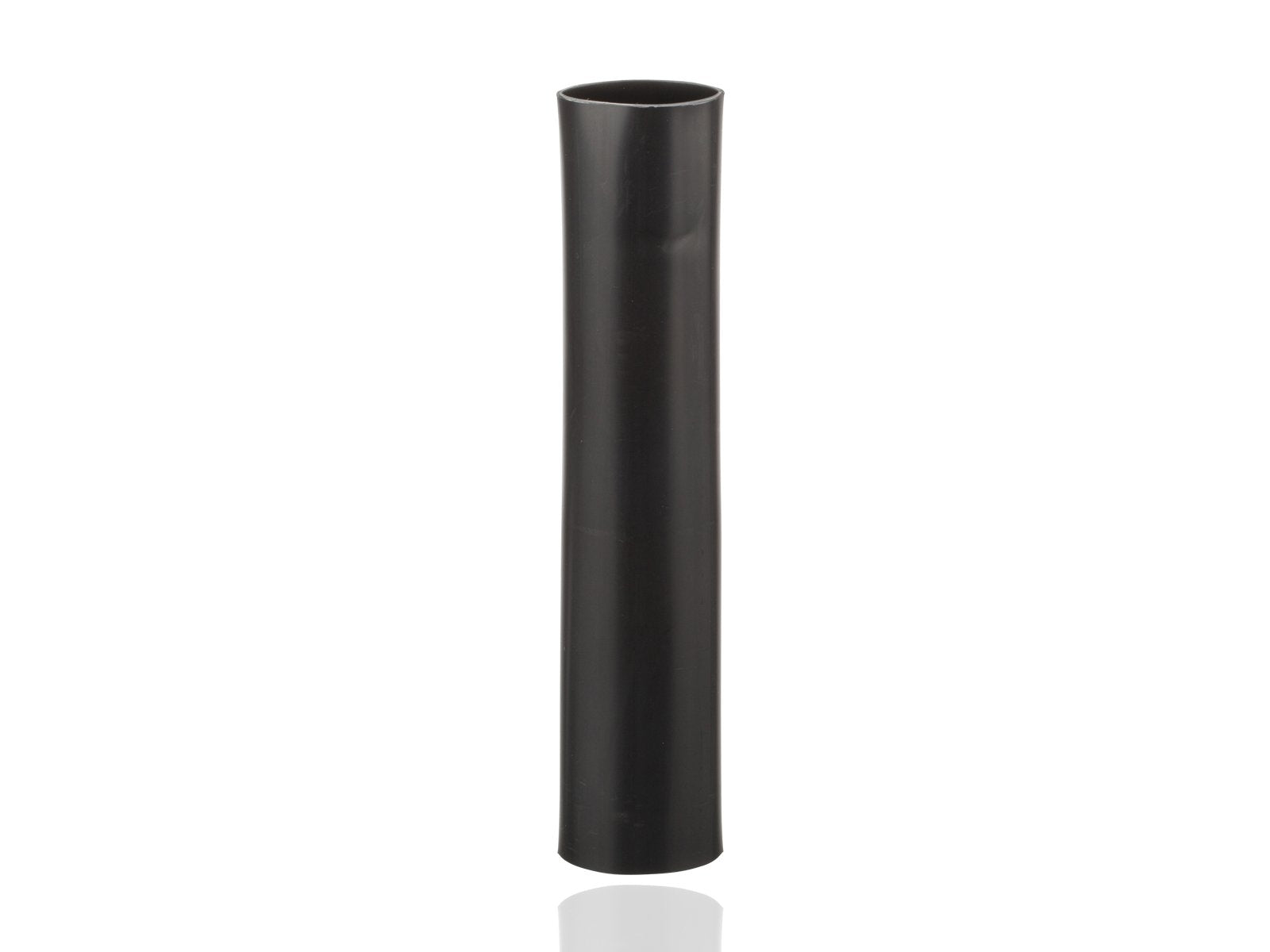

The NSI HWHS6-40-6 Easy-Splice™ heat shrink tubing is round and part of the HWHS series. This heavy-duty wall tubing is designed for 6 to 4/0 AWG wire, with an expanded inner diameter of 0.86 inches and a recovered inner diameter of 1/4 inch. It is 6 inches in length and made of polyolefin.

• Constructed from specially formulated polyolefin, irradiated and thermally stabilized for elastic memory.
• Shrinks permanently when heat is applied, molding tightly to irregular shapes.
• Features an interior adhesive coating for a watertight seal after shrinking.

Product Highlights

Ideal for use on standard poly or elastomeric insulated/jacketed cables, this heat shrink tubing provides a secure, waterproof seal for jacket repair, splice cover, direct burial, and submersible applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: HWHS6-40-6
• Country of Origin: China

Technical Specifications

• Series: HWHS
• Temperature Rating: 121 to 135 deg C
• Type: Round
• Voltage Rating: 1000 VAC
• Wall Type: Heavy Duty
• Wire Size: 6 to 4/0 AWG
• Inner Diameter Expanded: 0.86 in
• Inner Diameter Recovered: 1/4 in
• Length: 6 in
• Material: Polyolefin
• Approval: UL 486D, CSA C22.2
• Shape: Round
• Connector Overall Diameter: 0.69 Inch
• Seal Length per Side: 2 Inch
• Application: Jacket Repair Splice Cover, Direct Burial and Submersible
• Applicable Standard: ANSI C119.1
• Number of Items: 3
