NSI GLA-4 Aluminum Lay-In Connector 14 to 4 AWG

Product Description

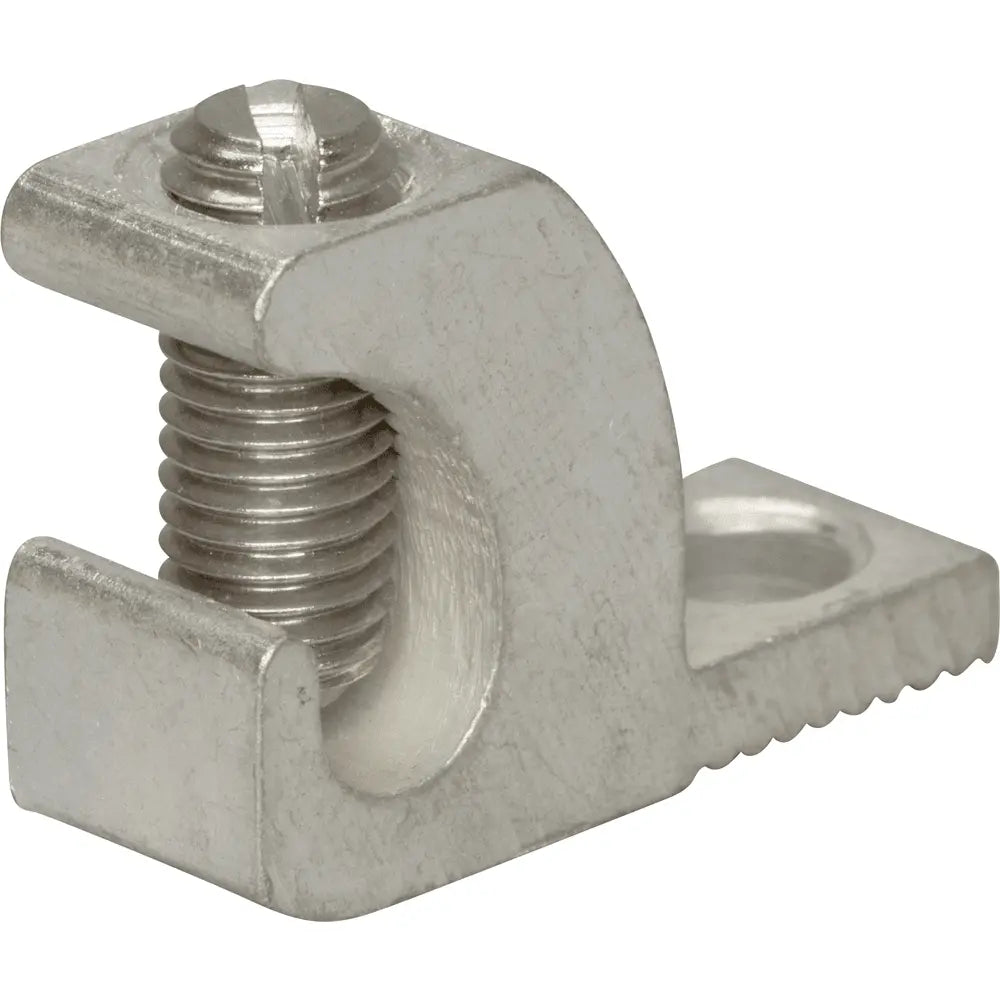

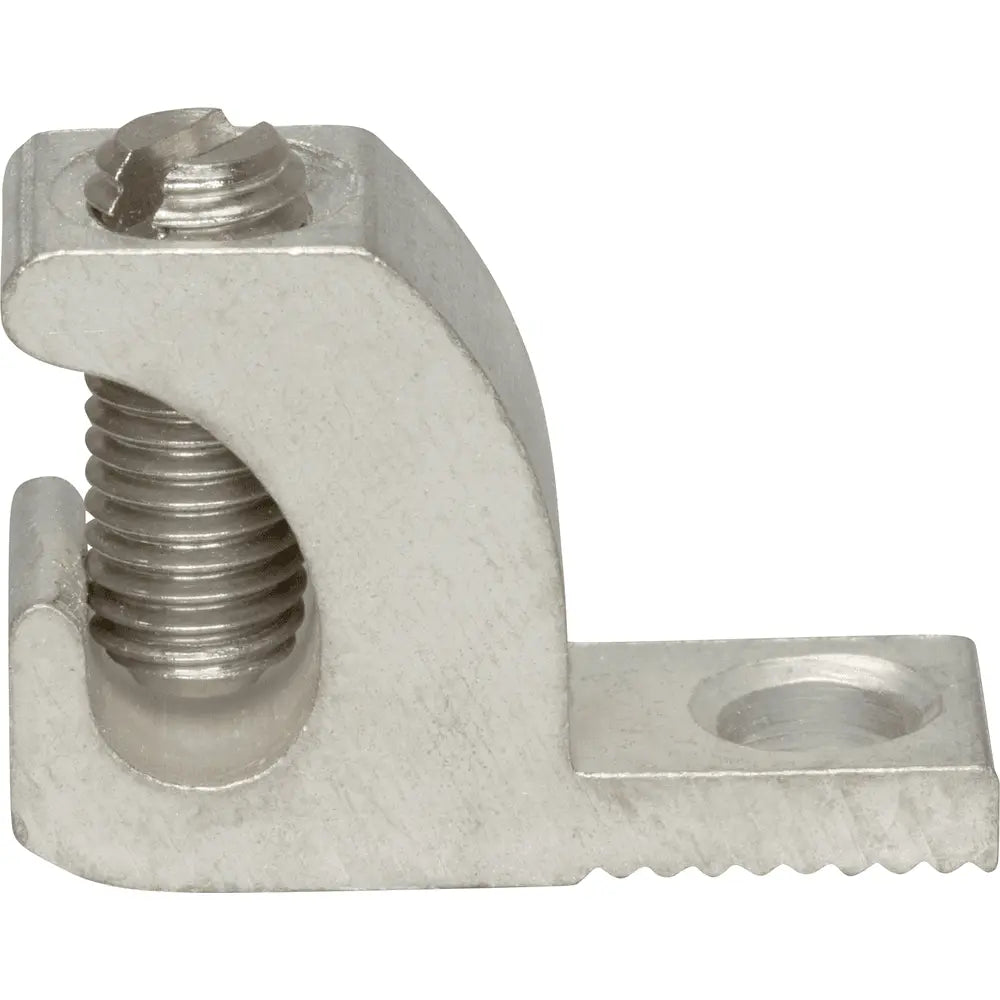

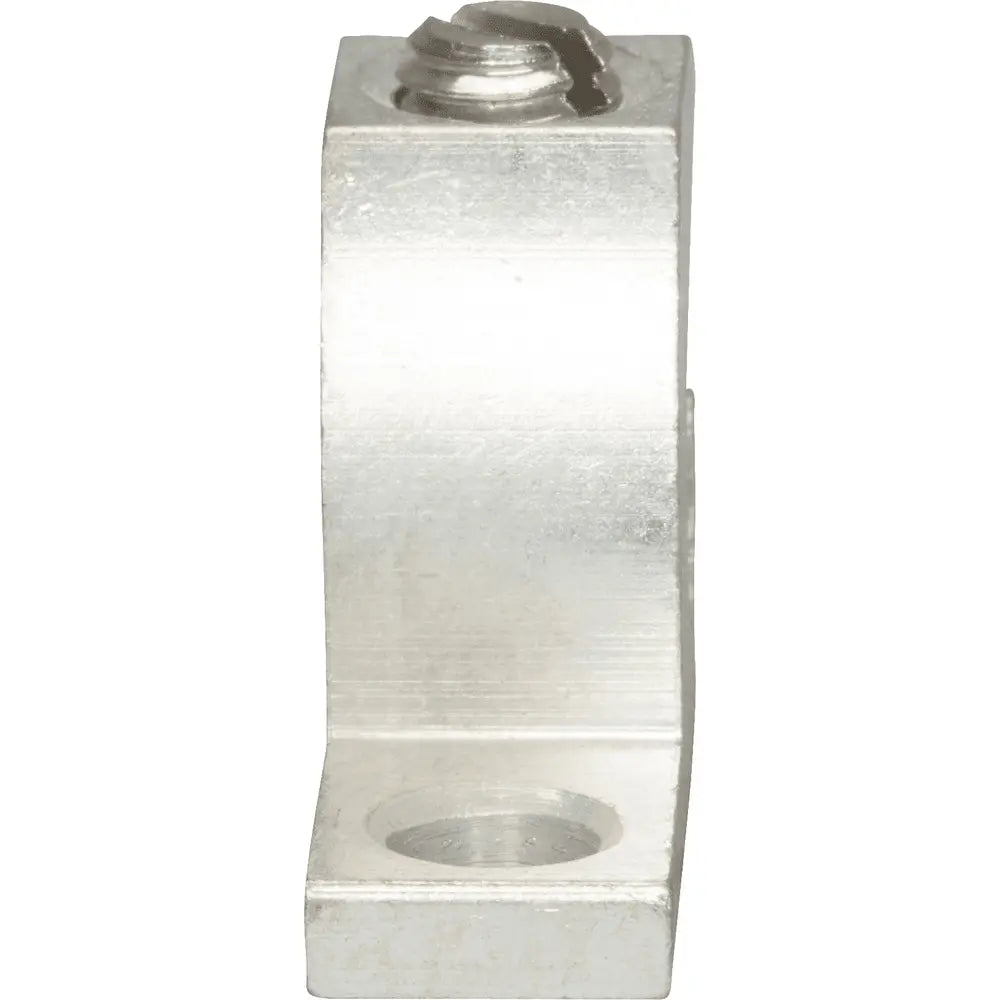

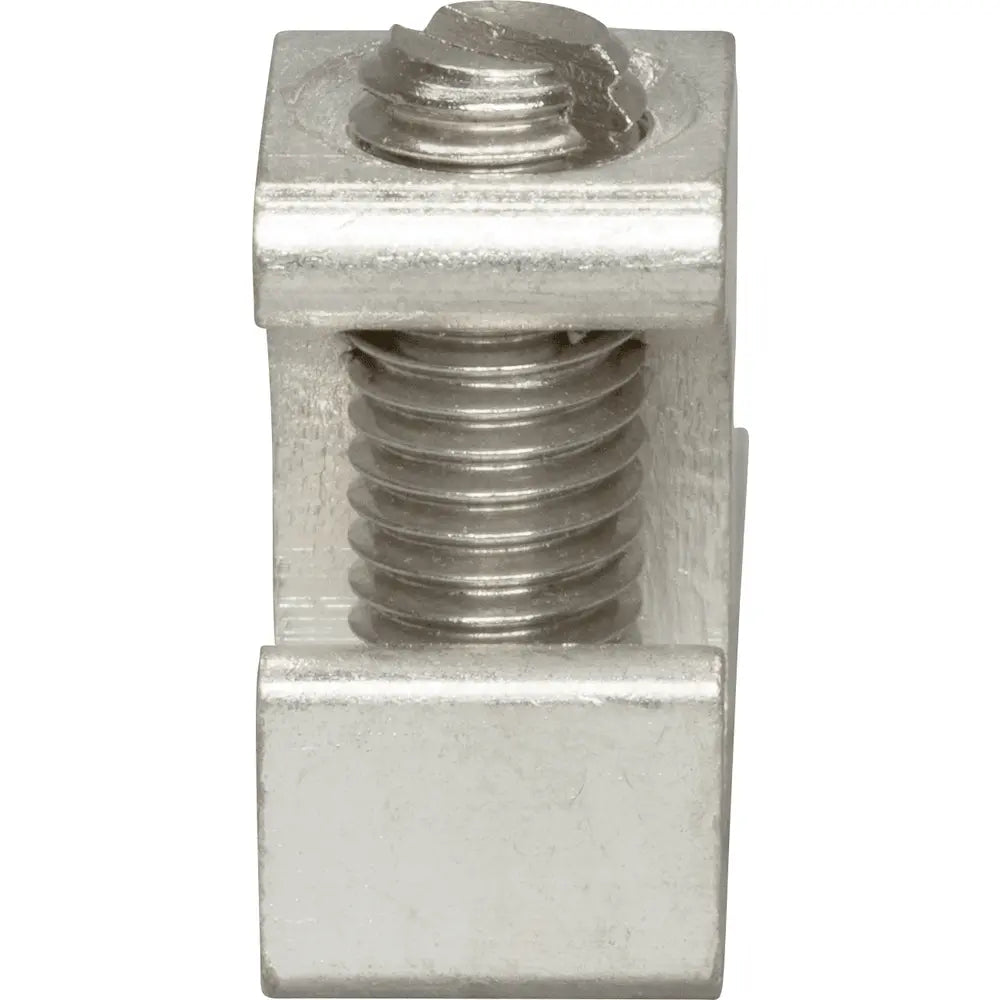

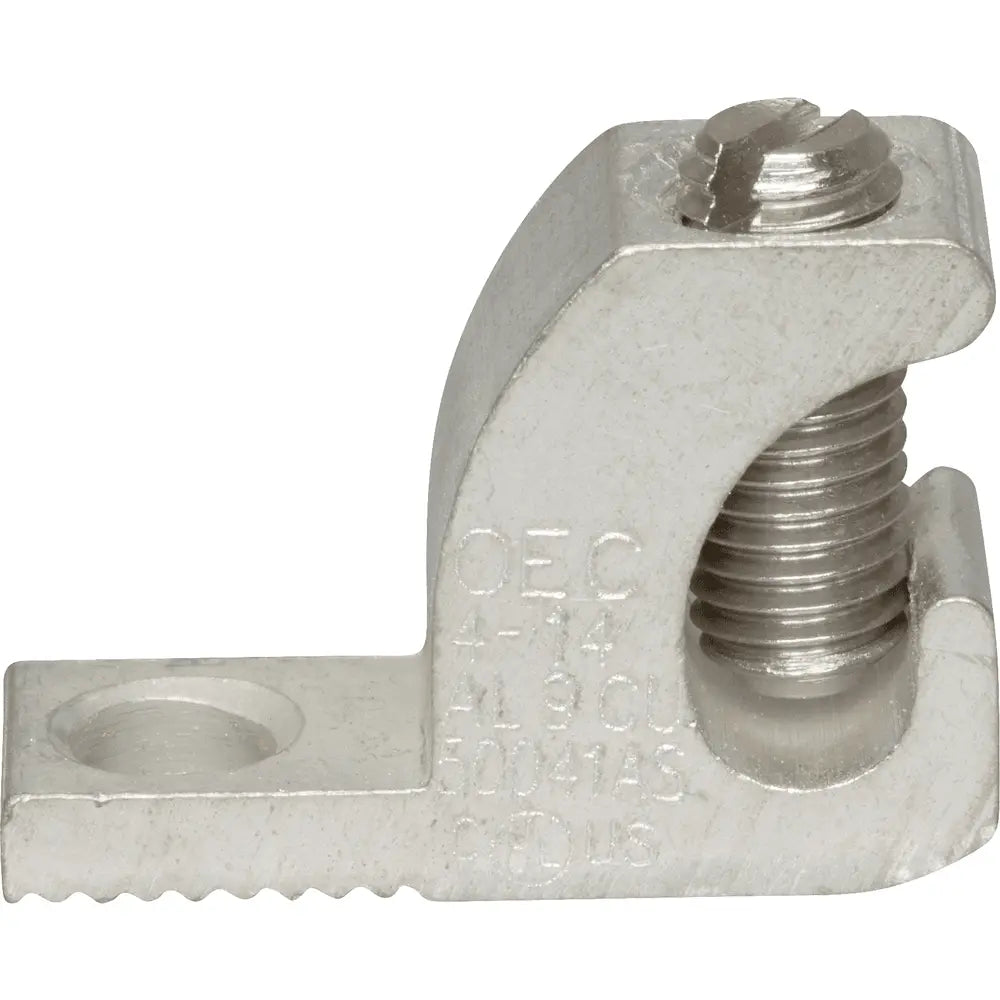

The NSI Supplies GLA-4 is an aluminum lay-in connector designed for cable sizes ranging from fourteen to four AWG. This connector facilitates secure electrical connections in grounding and continuous loop applications. It is constructed from durable 6061T-6 aluminum alloy and features an electro-tin plating for low contact resistance. Suitable for use with both copper and aluminum conductors, the GLA-4 is rated for up to six hundred volts, with a maximum of two thousand volts per UL486B standards. It is UL 486A/B listed and has a temperature rating of ninety degrees Celsius.

• Connector size accommodates fourteen to four AWG cables.
• Constructed from aluminum for strength and durability.
• Electro-tin plating to reduce contact resistance.

Product Highlights

This lay-in connector provides flexibility and reliability for various electrical applications.

Product Information

Standard Information

• Brand: NSI
• MPN: GLA-4

Technical Specifications

• Material: Aluminum
• Voltage Rating: 600 VAC
• Cable Size: 14 to 4 AWG
• Connection: Mechanical
• Width: 0.38 Inches
• Height: 0.75 Inches
• Length: 1.07 Inches
• Weight: 0.02 Pounds
• Country of Origin: US
