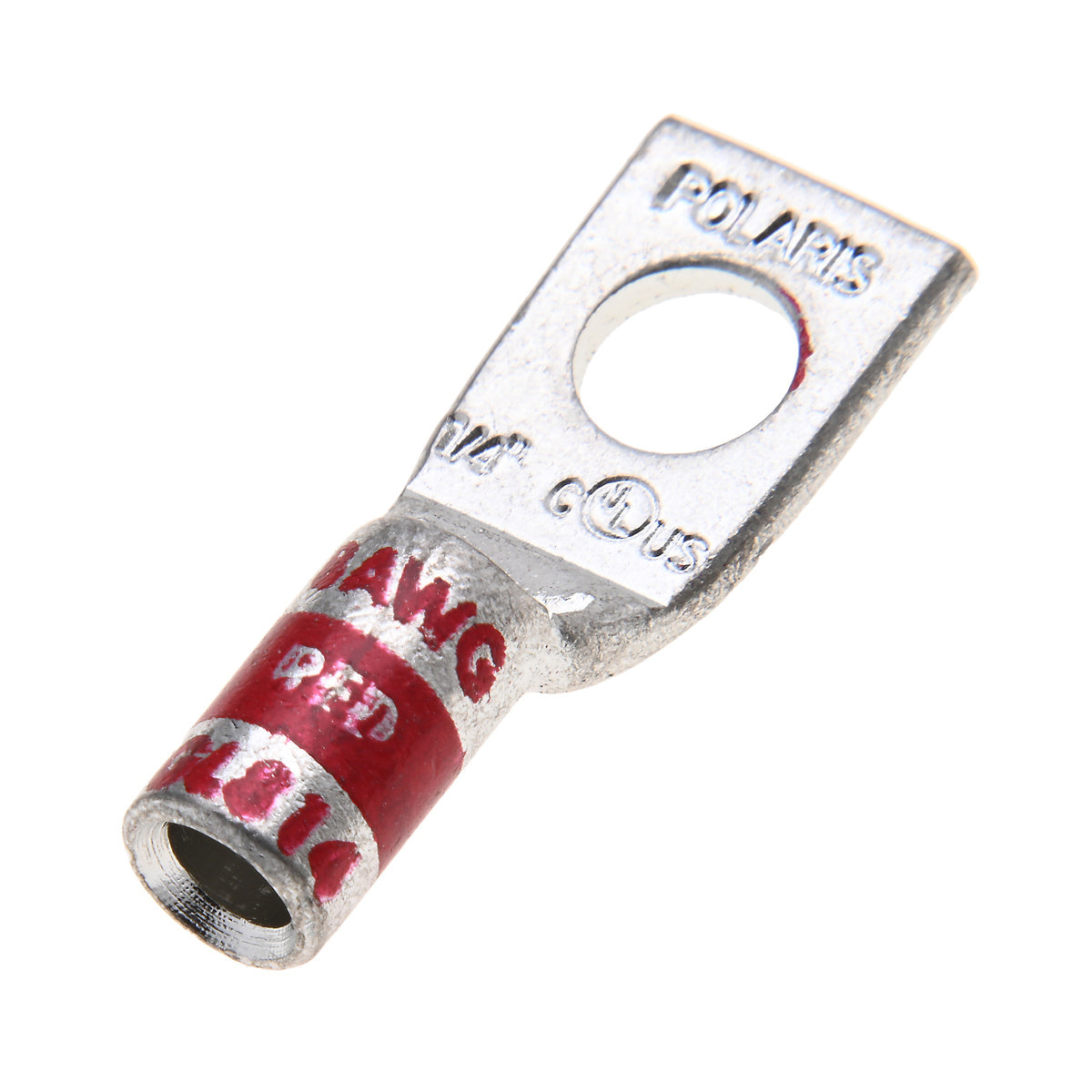

Nsi GL814 Polaris GL814 CMP Lug Cu Short 8 awg 1/4 Bolt Size

Product Description

The NSI GL814 Polaris compression lug creates a permanent, vibration-resistant connection with low contact resistance. It is suitable for power distribution, grounding, and data transmission. The lug is flex rated for use with K, H, G, I, M, and DLO cable. Easy inspection is enabled via a peephole that assures complete cable insertion.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Peep hole allows easy inspection of the termination
• Marked with die index and color coded

Product Highlights

The NSI GL814 copper compression lug ensures a reliable connection for various applications. Its durable construction and easy inspection features make it a dependable choice.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: GL814
• Country of Origin: United States

Technical Specifications

• Voltage Rating: 35kV
• Material: Copper
• Finish: Tin Plated
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.08
• Tang Length: 0.59
• Wire Range: 8 AWG
• Expanded Wire Range: 8 AWG
• Die Color Code: Red
• Mounting Bolt Size: 1/4
• Mounting Hole Diameter: 0.25
• Barrel Length: 1
• MPN: GL814
• Brand: NSI Tork
• UPC: Does Not Apply
• Country of Origin: United States
