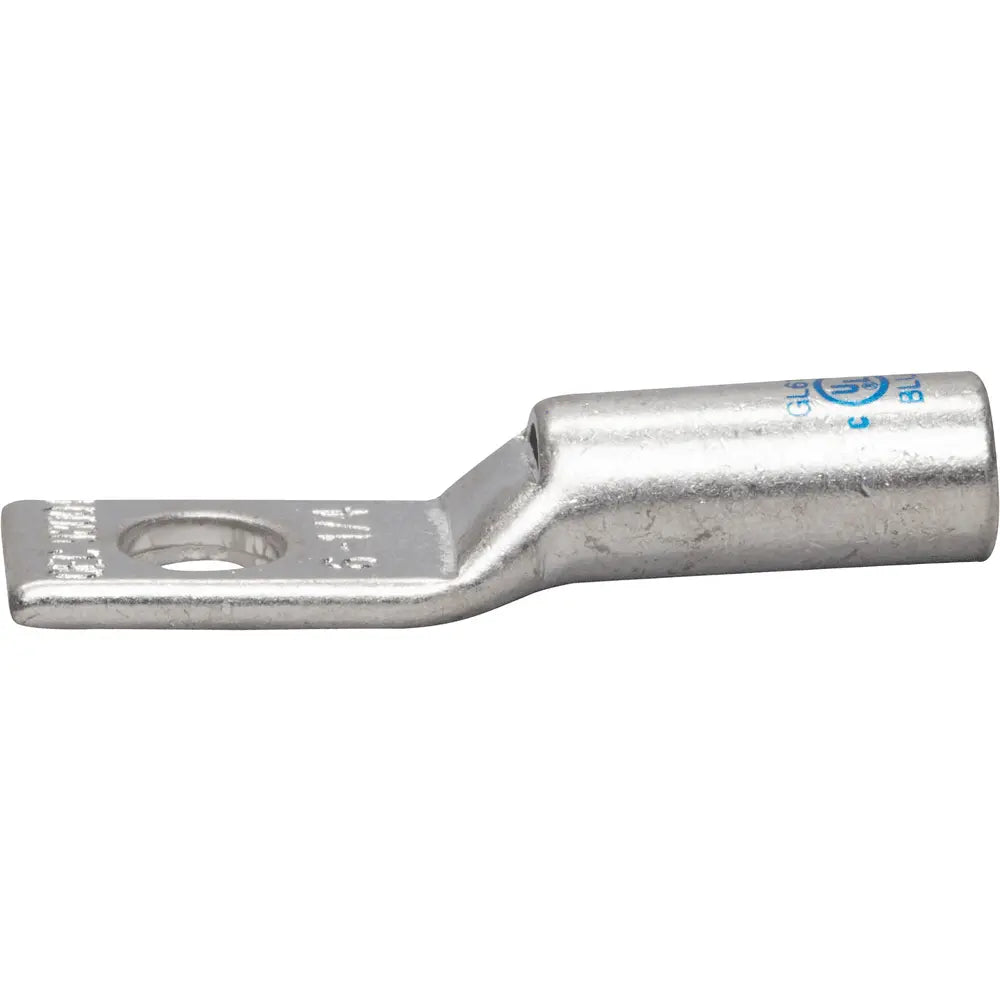

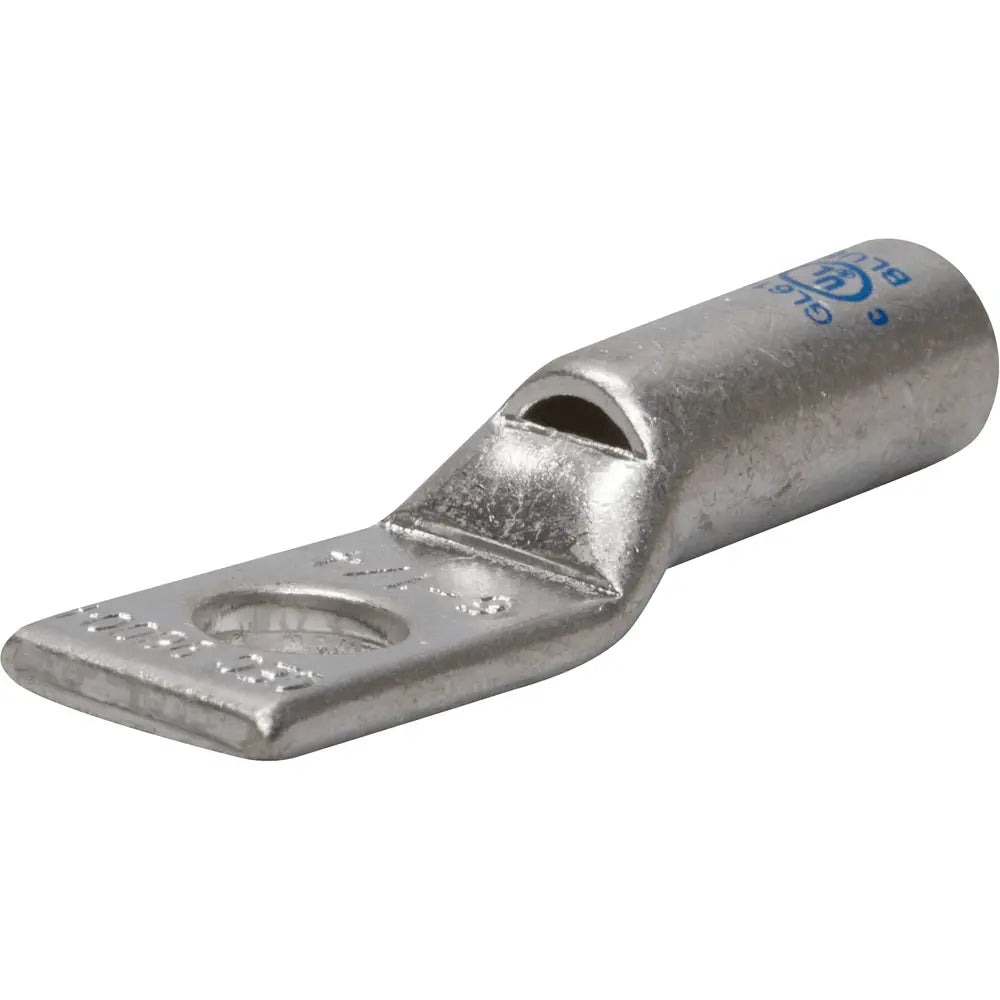

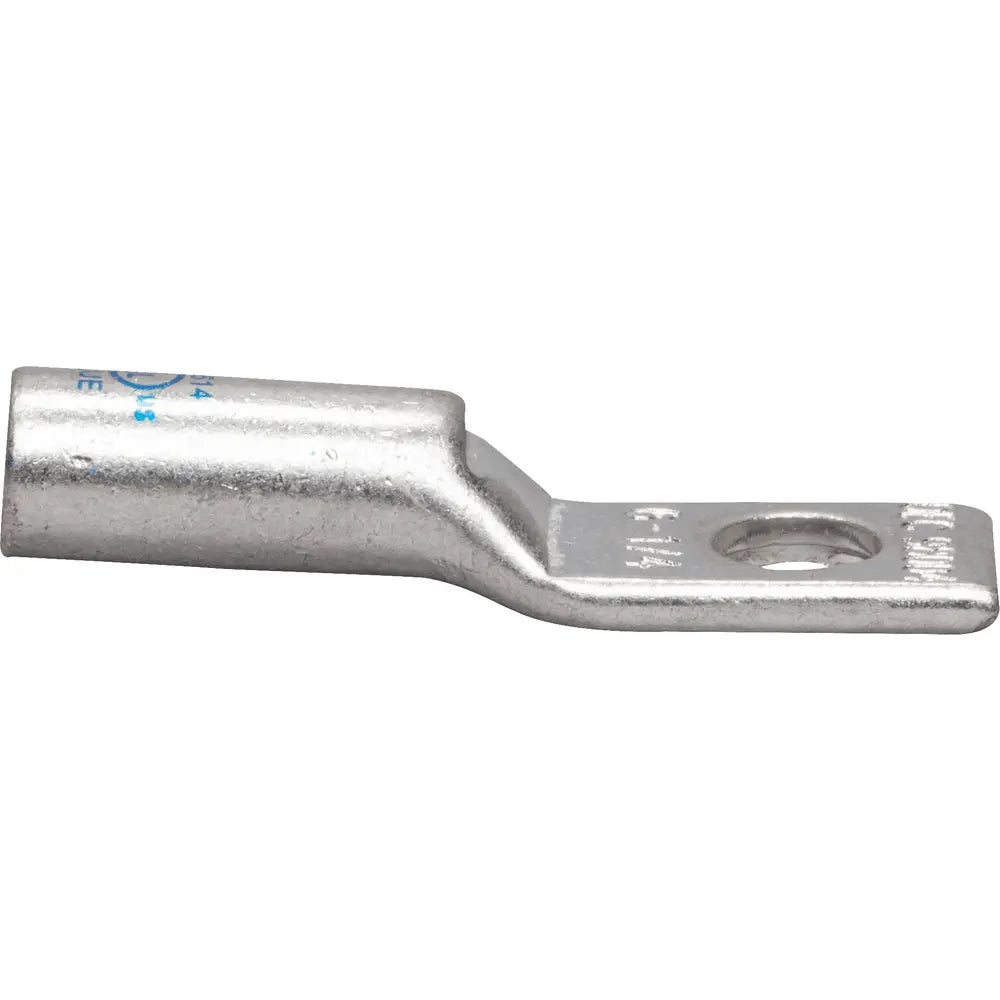

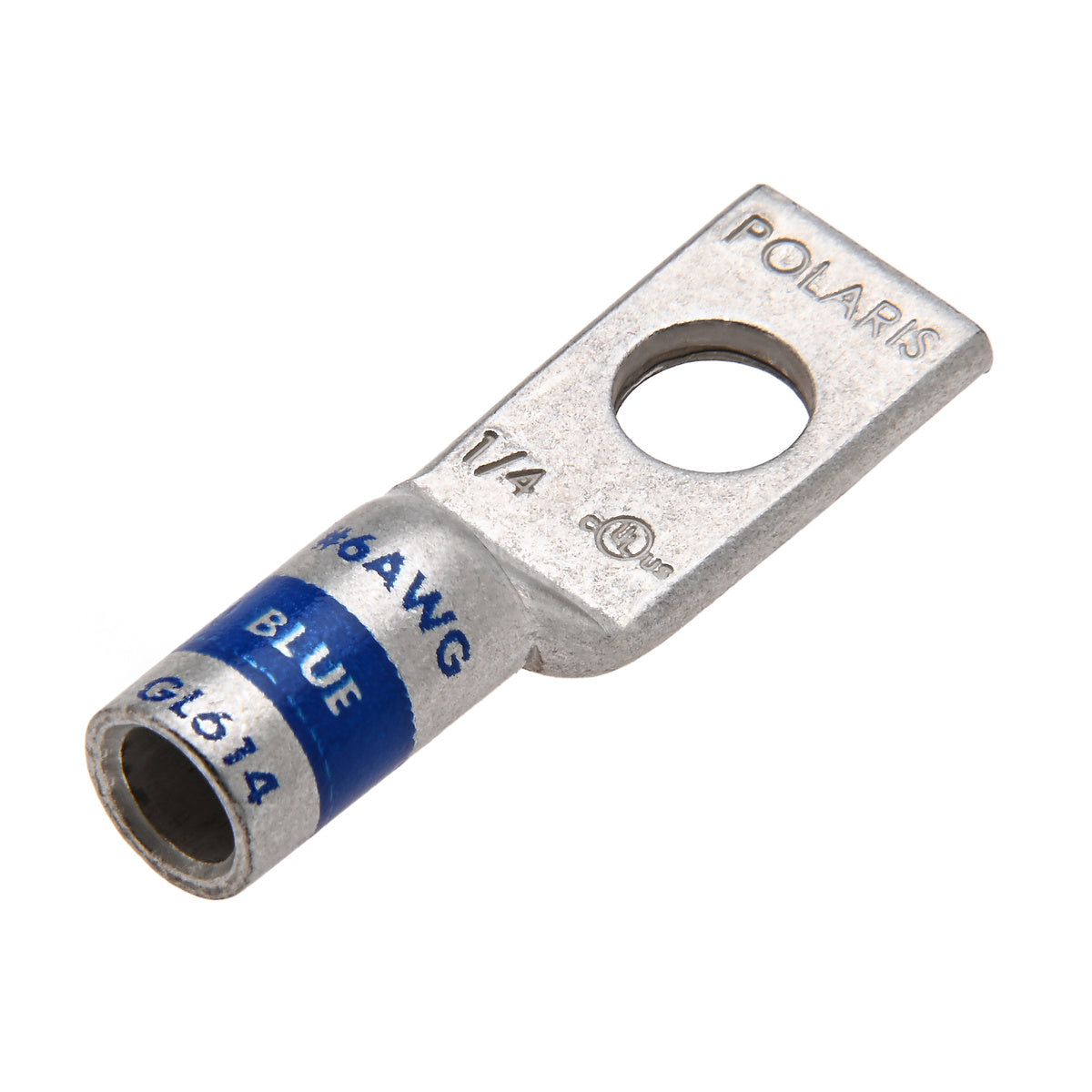

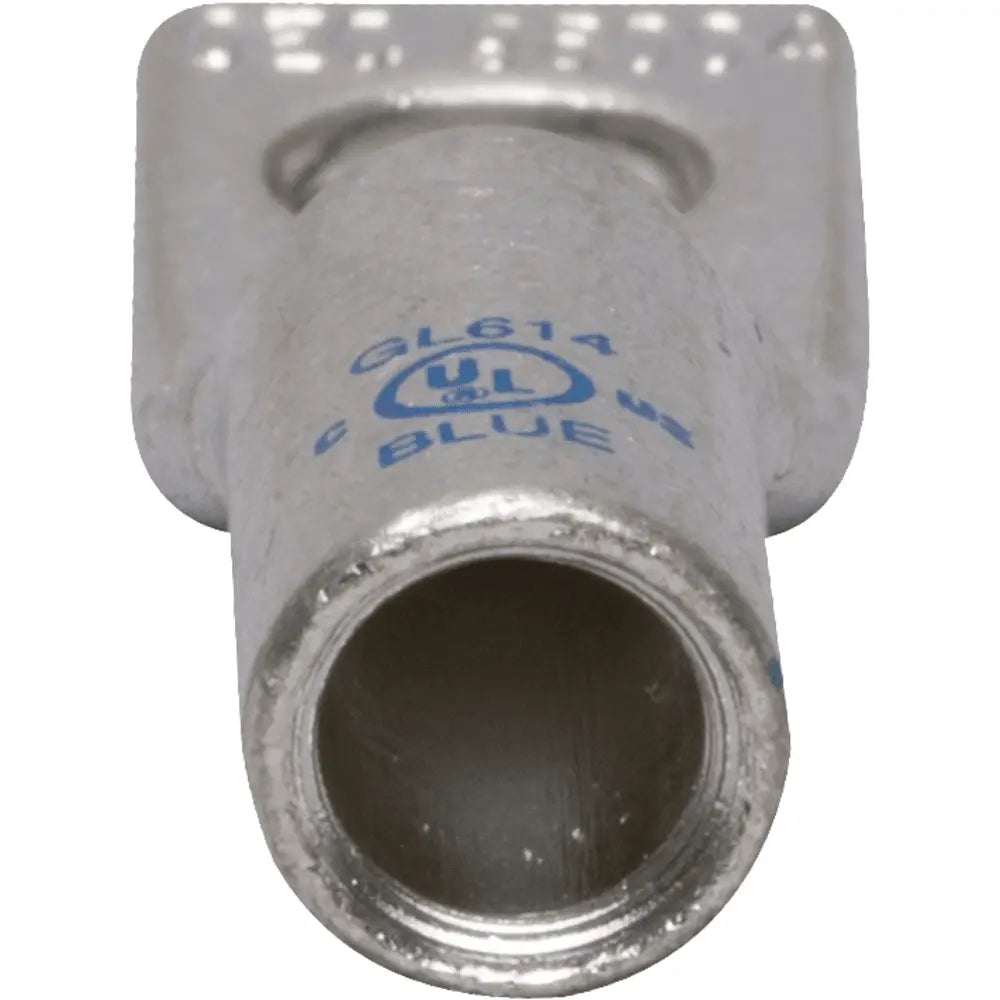

Nsi GL614 Polaris Copper Compression Short Lug 6AWG 1/4 inches Mount

Product Description

The NSI GL614 compression connectors terminate high-current wires safely, with a max voltage rating of 35kV when properly installed. Features a tin-plated copper body and chamfered entry. Suitable for power distribution, grounding, and data transmission. These compression lugs create a permanent, vibration-resistant connection with low contact resistance.

• Produced from high conductivity copper D tubing
• Tin-Plated to provide corrosion resistance
• Marked with die index and color coded

Product Highlights

NSI GL614 copper compression short lug ensures safe termination of high-current wires with a permanent, vibration-resistant connection.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: GL614
• Country of Origin: IN

Technical Specifications

• Type: Compression Lugs
• Length: 1.50 Inches
• Diameter: 0.30 Inches
• Material: Copper
• Mounting: Bolt-On
• Standard: cULus, UL Listed
• Cable Size: 6 AWG
• Connection: Compression
• Insulation: Non-Insulated
• Voltage Rating: 35kV
• Number Of Holes: 1
• Environmental Conditions: Dry Location
• Stud Size: 0.25 inch
• Finish: Tin Plated
• Ul Standard: UL 486A-486B, UL467
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.08
• Tang Length: 0.67
• Wire Range: 6 AWG
• Expanded Wire Range: 6 AWG – 8 AWG
• Die Color Code: Blue
• Mounting Bolt Size: 1/4
• Mounting Hole Diameter: 0.25
• Barrel Length: 1
