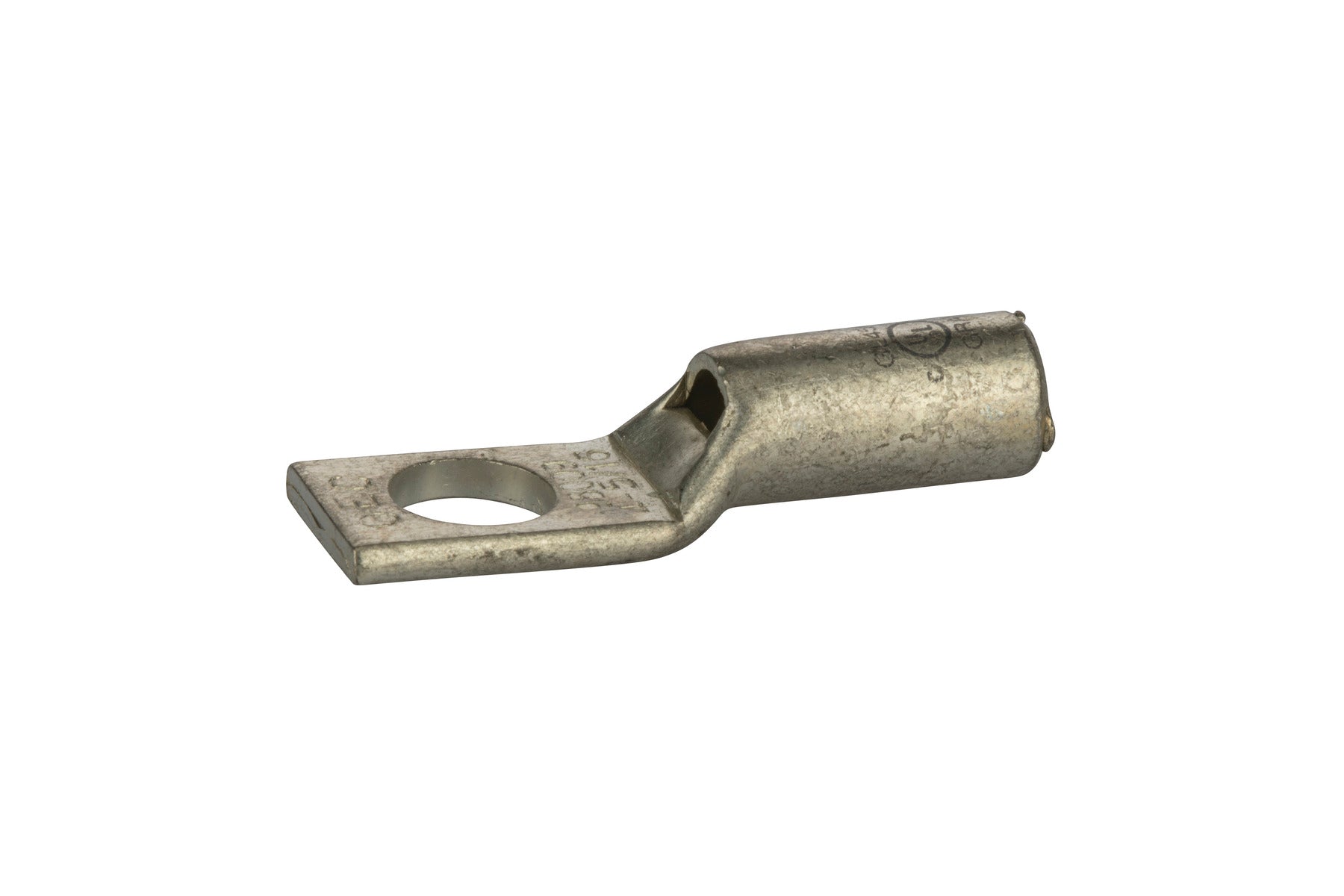

Nsi GL456 4 Awg Copper Compression Lug 5/16 inches Bolt Size

Product Description

The NSI GL456 is a 4 AWG copper compression lug with a 5/16" bolt size. It features high conductivity copper tubing and a corrosion-resistant tin-plated finish. The peep hole allows for easy inspection of the termination. Marked with die index and color coded for easy identification.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Peep hole allows easy inspection of the termination
• Marked with die index and color coded
• Flex rated for use with K, H, G, I, M and DLO cable
• Easy Inspection: Peephole allows easy inspection of the termination to assure complete cable insertion

Product Highlights

This copper compression lug ensures a reliable, vibration-resistant connection for power distribution, grounding, and data transmission applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: GL456
• Country of Origin: United States

Technical Specifications

• Voltage Rating: 35kV
• Material: Copper
• Finish: Tin Plated
• GTIN: 662381036032
• UPC: 662381036032
• EAN: 0662381036032
• UNSPSC: 39121405
• Ul Standard: UL 486A-486B, UL467
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.08
• Tang Length: 0.67
• Wire Range: 4 AWG
• Assortment: Copper Compression Terminations
• Expanded Wire Range: 4 AWG – 6 AWG
• Die Color Code: Gray
• Mounting Bolt Size: 5/16
• Mounting Hole Diameter: 0.33
• Barrel Length: 1
• Stud Size: 5/16 in
• Conductor Size: 4 AWG
• Barrel Type: Short
• Barrel Size: 0.25 in ID x 0.34 in OD x 0.71 in L
• Tongue Size: 0.67 in L x 0.49 in W x 0.08 in THK
• Temperature Rating: 90 deg C
• Mounting Hole Size: 5/16 in
• Overall Length: 1-1/2 in
• Color: Gray
• Type: 1-Hole
• Series: GL Series
• Die Index: 3/8/346/29
• Pad Size: 0.67 INCH L X 0.49 INCH W X 0.08 INCH THK
• Pad Holes: 1
• Inner Diameter: 0.25 INCH
• Outer Diameter: 0.34 INCH
• Application: TERMINATE SPLICE TAP POWER CONNECTORS
• Model: GL
• Includes: PEEP HOLE
• Applications: Terminate, Splice, Tap Power Connectors
• Cable Size: 4 AWG
• Max Temperature: 194 degrees F
• Mounting Type: 5/16 Mounting Hole
• Number of Holes: 1 Hole
• Size: L=1.50 - W=.490 - OD=.340 - ID=.250
• Standard: UL486
• Voltage: 600 Volt
• Brand: NSI Industries
• Sub Brand: Copper Compression
• 12-Digit UPC: 662381036032
• Environmental Conditions: 90 degrees C
• Height: 0.343 Inch
• Length: 0.71 Inch
• Width: 0.08 in
• Certifications and Standards: cULus, UL Listed, UL 486A-486B, UL467
