Nsi GL3038 cmp lug cu short 3/0 awg 3/8 bolt

Product Description

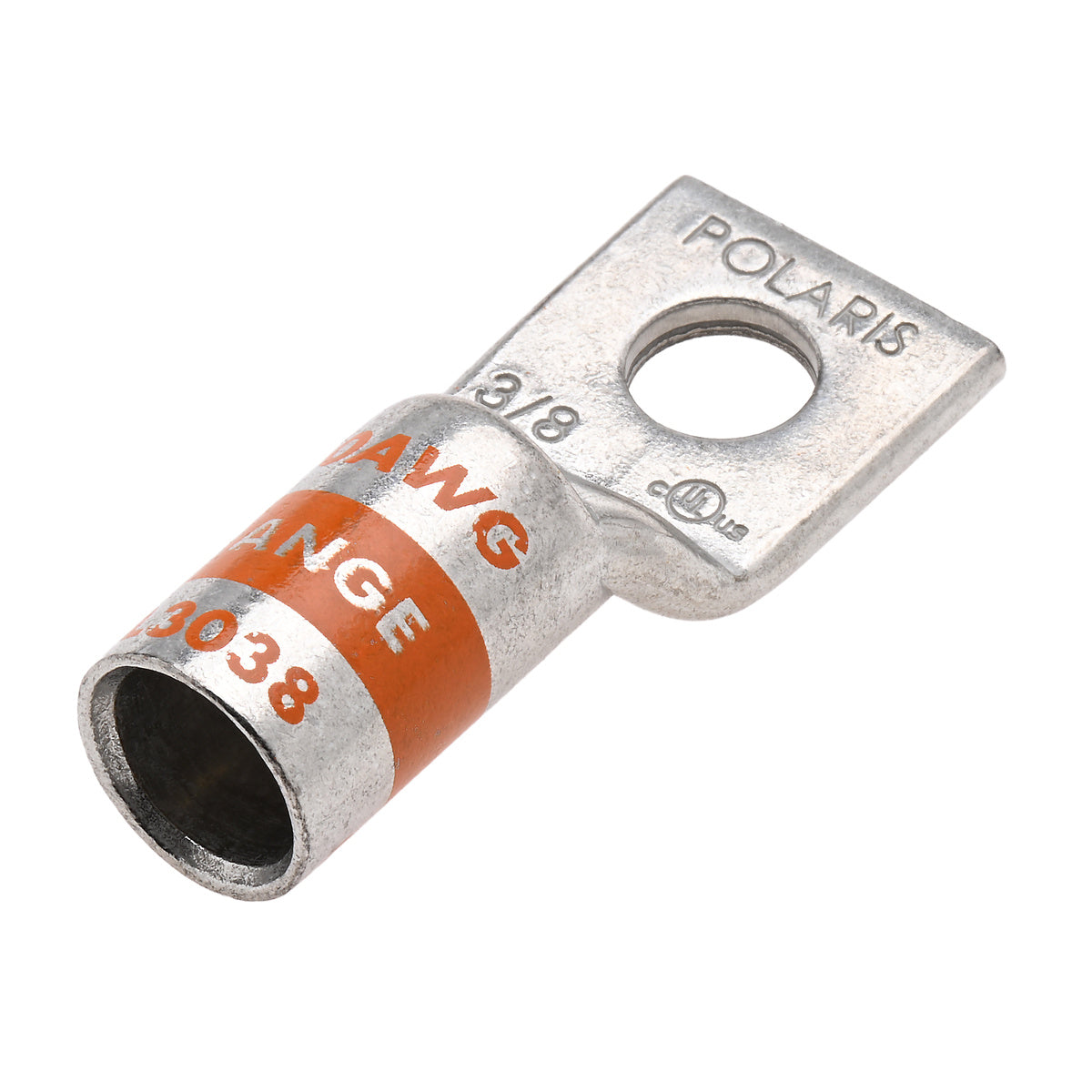

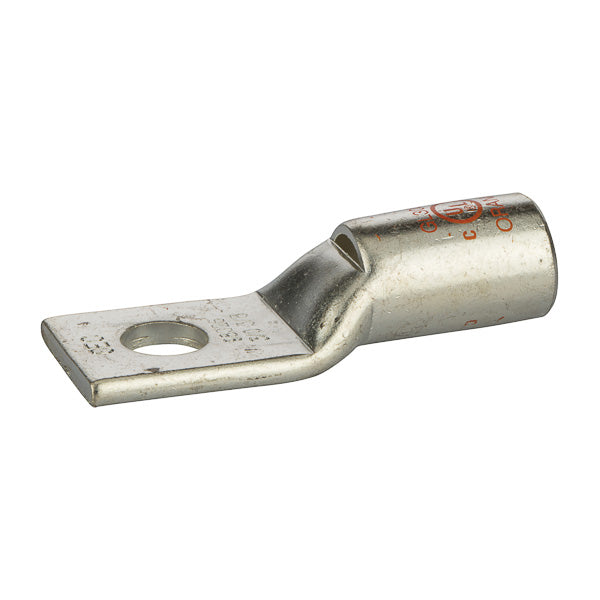

The NSI GL3038 POLARIS compression lug creates a permanent, vibration-resistant connection with low contact resistance. It is suitable for power distribution, grounding, and data transmission. The high conductivity copper tubing has a corrosion-resistant tin-plated finish. A peep hole allows easy inspection of the termination to assure complete cable insertion.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Peep hole allows easy inspection of the termination
• Marked with die index and color coded

Product Highlights

The NSI GL3038 is flex rated for use with K, H, G, I, M and DLO cable and listed for 35 kV maximum when properly installed.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: GL3038

Technical Specifications

• Voltage Rating: 600 VAC
• Material: Copper
• Finish: Tin Plated
• Ul Standard: UL 486A-486B, UL467
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded
• Tang Thickness: 0.13
• Tang Length: 1.06
• Wire Range: 3/0 AWG
• Expanded Wire Range: 3/0 AWG ">– 2 AWG
• Die Color Code: Orange
• Mounting Bolt Size: 3/8
• Mounting Hole Diameter: 0.41
• Barrel Length: 1
• Barrel Size: 0.49 in ID x 0.62 in OD
• Barrel Type: Short
• Mounting Hole Size: 3/8 in
• Overall Length: 2.36 in
• Temperature Rating: 90 deg C
• Tongue Size: 1.06 in L x 0.9 in W x 0.13 in THK
• Type: 1-Hole
• Conductor Size: 3/0 AWG
• Stud Size: 3/8 in
