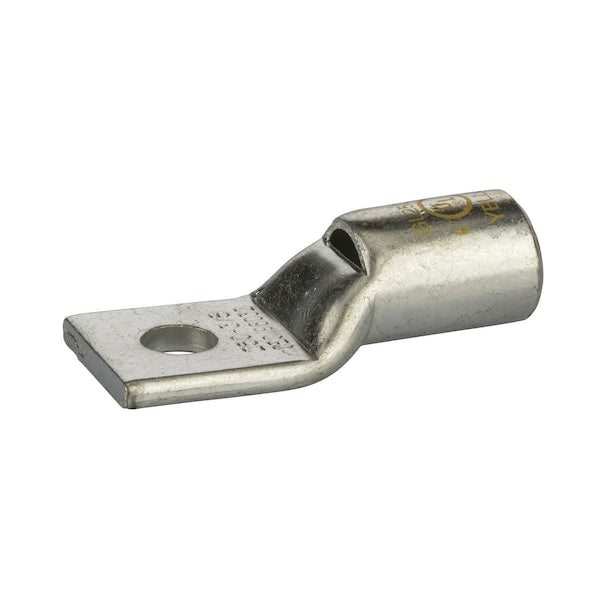

Nsi GL25038 250 MCM Copper Compression Lug 3/8 Bolt Size

Product Description

The NSI GL25038 is a 250 MCM copper compression lug with a 3/8 bolt size. These compression connectors terminate high-current wires safely. It has a tin-plated copper body and a chamfered entry. These lugs are suitable for power distribution, grounding, and data transmission applications.

• For Wire Size: 250 MCM
• For Conductor Material: Copper
• Material: Copper

Product Highlights

The NSI GL25038 copper compression lug ensures a secure and reliable connection for high-current wiring needs.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: GL25038
• Country of Origin: India

Technical Specifications

• MFR #: GL25038
• For Wire Size: 250 MCM
• Barrel Size: Short
• Width: 1.091"
• Length: 2.48"
• Cable Size: 250 MCM
• Barrel Length: 1
• Barrel Outside Diameter: 0.75
• Barrel Inside Diameter: 0.59
• Mounting Bolt Size: 3/8
• Tang Length: 1.06
• Tang Thickness: 0.15
• Item: One-Hole Compression Lug
• For Conductor Material: Copper
• Material: Copper
• Color Code: Yellow
• Standards: UL 486A-486B, cULus
• Connector Type: Short Barrel with Peep Hole
• Color: Yellow
• Environmental Conditions: 90 C
• Type: Short Barrel - One Hole
• Voltage Rating: 600 V
• Application: Terminate
• Number of Holes: 1
• Mounting: 3/8 Mounting Hole
• Finish: Tin Plated
• Conductor Type: Copper
• Ul File No: E155027
• Wire Cable Class: Class B, Class C
• Certifications: cULus
• Assortment: Copper Compression Terminations
• Expanded Wire Range: 250 MCM "> – 1/0 AWG
• Temp Rating: 90C, 9CU
• Ul Standard: UL 486A-486B, UL 467 (8 AWG "> – 3/0 AWG)
• Brand: NSI Industries
• Part Number: GL25038
• GTIN: 662381036438
• UPC: 662381036438
• EAN: 662381036438
• UNSPSC: 39121405
• Origin Country: IN
• Stud Size: 3/8
• Die Color Code: Yellow
• I.D.: 0.59
• O.D.: 0.75
• Wire Range: 250 MCM
• Operating temperature: 90 C
• Product Type: Copper Short Lug
• Manufacturer: NSI
• Al Conductor Max Amp: 230
• Cu Conductor Max Amp: 290
• Conductor Cu Size Range: 250 MCM-6 AWG
• Conductor Al Size Range: 250 MCM-6 AWG
• Env Temp: 90C, 9CU
• Max Torque: 360
