Nsi GL238 cmp lug cu short 2 AWG 3/8 bolt size

Product Description

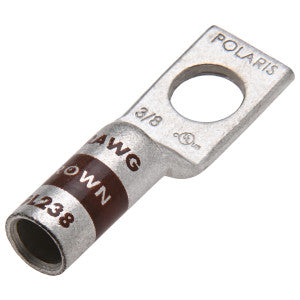

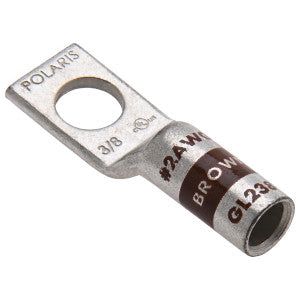

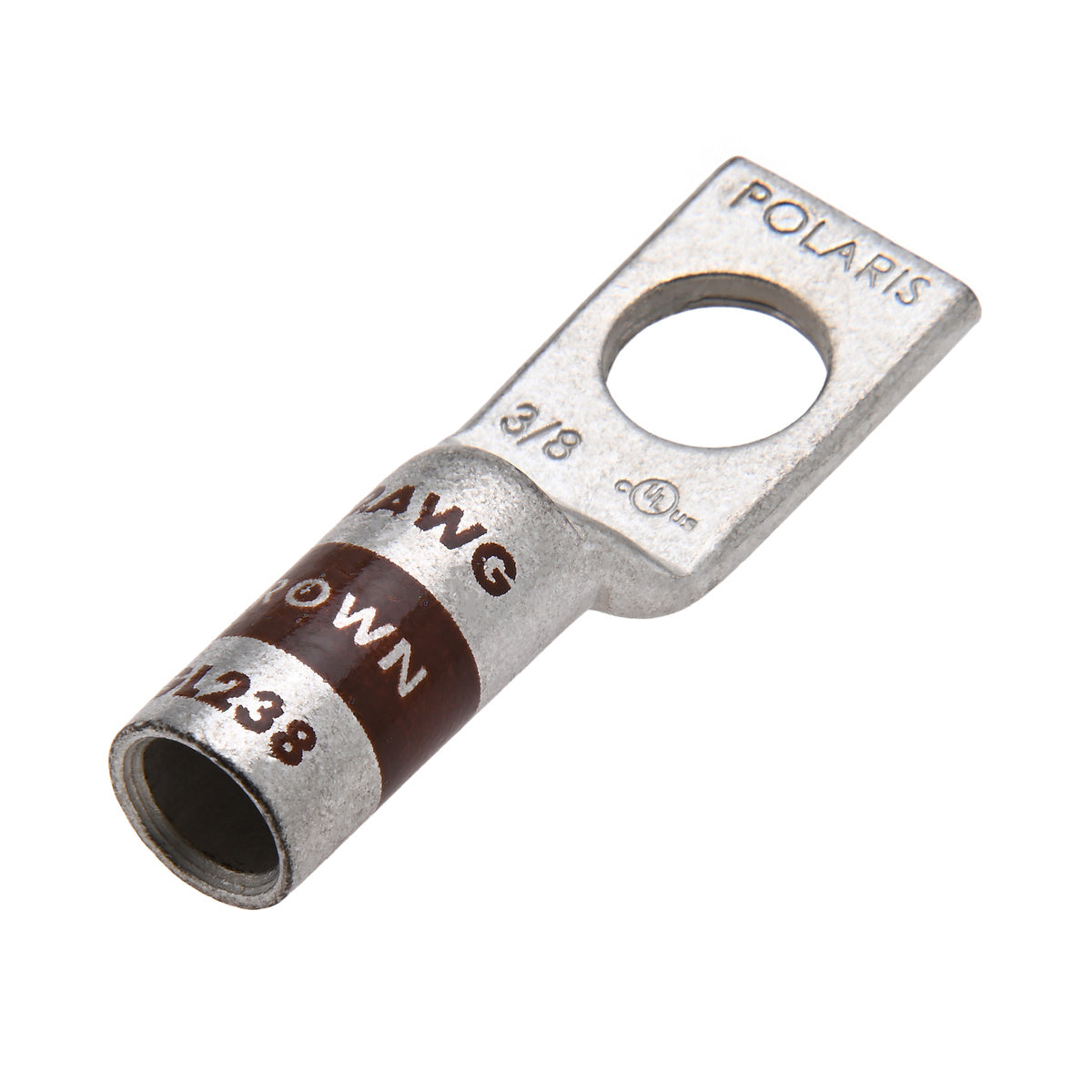

The NSI GL238 copper compression short lug features a standard installation hole, sized for 3/8"), mounting bolts, and a chamfered port to terminate a 2 AWG conductor. Connectors are made from tin-plated copper for improved conductivity and corrosion resistance. It creates a vibration-resistant, mechanically strong unit.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Peep hole allows easy inspection of the termination
• Marked with die index and color coded

Product Highlights

The compression lug is flex rated for use with K, H, G, I, M and DLO cable. Easy inspection with peep hole that allows easy inspection of the termination.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: GL238
• Country of Origin: India

Technical Specifications

• Material: Copper
• Finish: Tin Plated
• Ul Standard: UL 486A-486B, UL467
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.1
• Tang Length: 0.81
• Wire Range: 2 AWG
• Die Color Code: Brown
• Mounting Bolt Size: 3/8
• Mounting Hole Diameter: 0.41
• Barrel Length: 1
• Application: Terminate, Splice, Tap Power Connectors
• Rated Voltage: 600 V
• Stud Size: 3/8 in.
• Lug Wire Size: 2 AWG
• No. of Holes: 1
• Overall Length: 1.8 in
• Temperature Rating: 90 deg C
• Type: 1-Hole
• Standard & Approvals: UL 486 Listed, RoHS Compliant
• Conductor Size: 2/0 AWG
• Barrel Style: Short
• Barrel Size: 0.31 in ID x 0.42 in OD
• Brand: NSI Industries
• MPN: GL238
• UPC: 66238103605
• Manufacturer: NSI Industries
• Dimensions: 0.6 in W
• Tongue Size: 0.81 in L x 0.6 in W x 0.1 in THK
