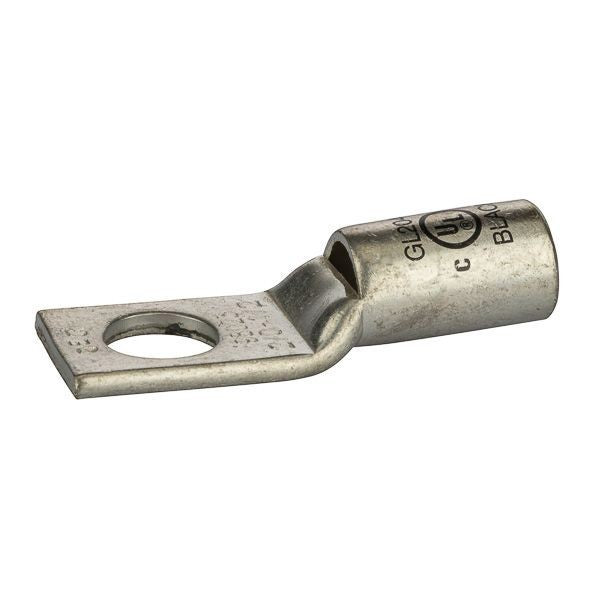

Nsi GL2048 2/0 Awg Copper Compression Lug 1/2 Bolt Size

Product Description

The NSI GL2048 is a 2/0 Awg copper compression lug with a 1/2 bolt size. These short barrel copper compression lugs are made from high conductivity copper tubing and tin-plated for corrosion resistance. They are marked with die index and color coded for easy reference and listed for 35KV maximum when properly installed.

• Produced from high conductivity copper tubing
• Peep hole allows easy inspection of the termination to assure complete cable insertion
• Tin plated to provide corrosion and low contact resistance

Product Highlights

The NSI GL2048 copper compression lug offers a dependable, high-performance solution for secure electrical terminations in grounding, bonding, and power distribution applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: GL2048

Technical Specifications

• Material: Copper
• Series: GL Series
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Type: 1-Hole
• Voltage Rating: 600 VAC
• Application: Terminate, Splice and Tap Power Connector Applications
• Standard & Approvals: UL 486, KM Approved, cULus 155027
• Conductor Size: 2/0 AWG
• Barrel Type: Short
• Conductor Type: Stranded
• Tongue Size: 1.06 in L x 0.81 in W x 0.12 in THK
• Overall Length: 2.24 in
• Mounting Hole Size: 1/2 in
• Barrel Size: 0.44 in ID x 0.56 in OD x 0.94 in L
• Product Name: NSI 2/0 AWG Copper Compression Lug 1/2 Bolt Size (GL2048)
• Brand: NSI
• SKU: NSI-GL2048
• Mfr. Part Number: GL2048
• Body Material: Copper
• UPC Code: #662381036100
• UL Listing: Yes
