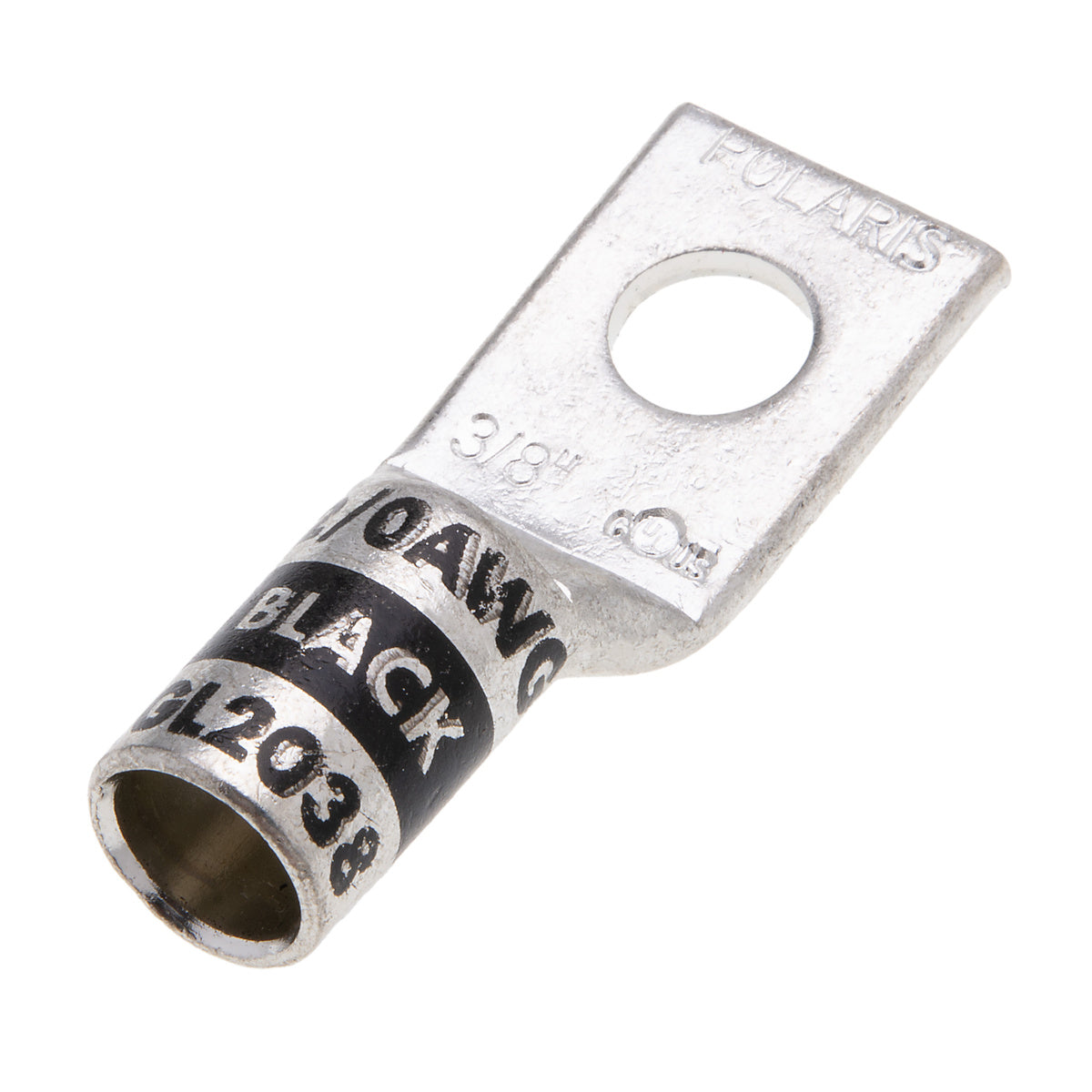

Nsi GL2038 polaris cmp lug cu short 2/0 awg 3/8 bolt

Product Description

The NSI GL2038 Polaris compression lug creates a permanent, vibration-resistant connection with low contact resistance. It is suitable for power distribution, grounding, and data transmission. Constructed from high conductivity copper tubing with a corrosion-resistant tin-plated finish. The peep hole allows easy inspection of the termination to assure complete cable insertion.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Peep hole allows easy inspection of the termination
• Marked with die index and color coded
• Flex rated for use with K, H, G, I, M and DLO cable
• Easy Inspection: Peephole allows easy inspection of the termination to assure complete cable insertion

Product Highlights

The NSI GL2038 lug is flex rated for use with K, H, G, I, M and DLO cable.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: GL2038
• Country of Origin: India

Technical Specifications

• Voltage Rating: 600V
• Material: Copper
• Finish: Tin Plated
• GTIN: 662381036094
• UPC: 662381036094
• EAN: 0662381036094
• UNSPSC: 39121405
• Ul Standard: UL 486A-486B, UL467
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.12
• Tang Length: 1.06
• Wire Range: 2/0 AWG
• Assortment: Copper Compression Terminations
• Expanded Wire Range: 2/0 AWG – 4 AWG
• Die Color Code: Black
• Mounting Bolt Size: 3/8
• Mounting Hole Diameter: 0.41
• Barrel Length: 1
• Stud Size: 3/8 in
• Barrel Length/Type: Short
• Stud Holes: 1
• Conductor Size - Code: 2/0 AWG STR
• Screw/Stud Size: 3/8 in.
• Color Code: Black
• Country of Origin: India - Subject to change
