Nsi GL138 Cmp Lug Cu Short 1 Awg 3/8 Bolt Size

Product Description

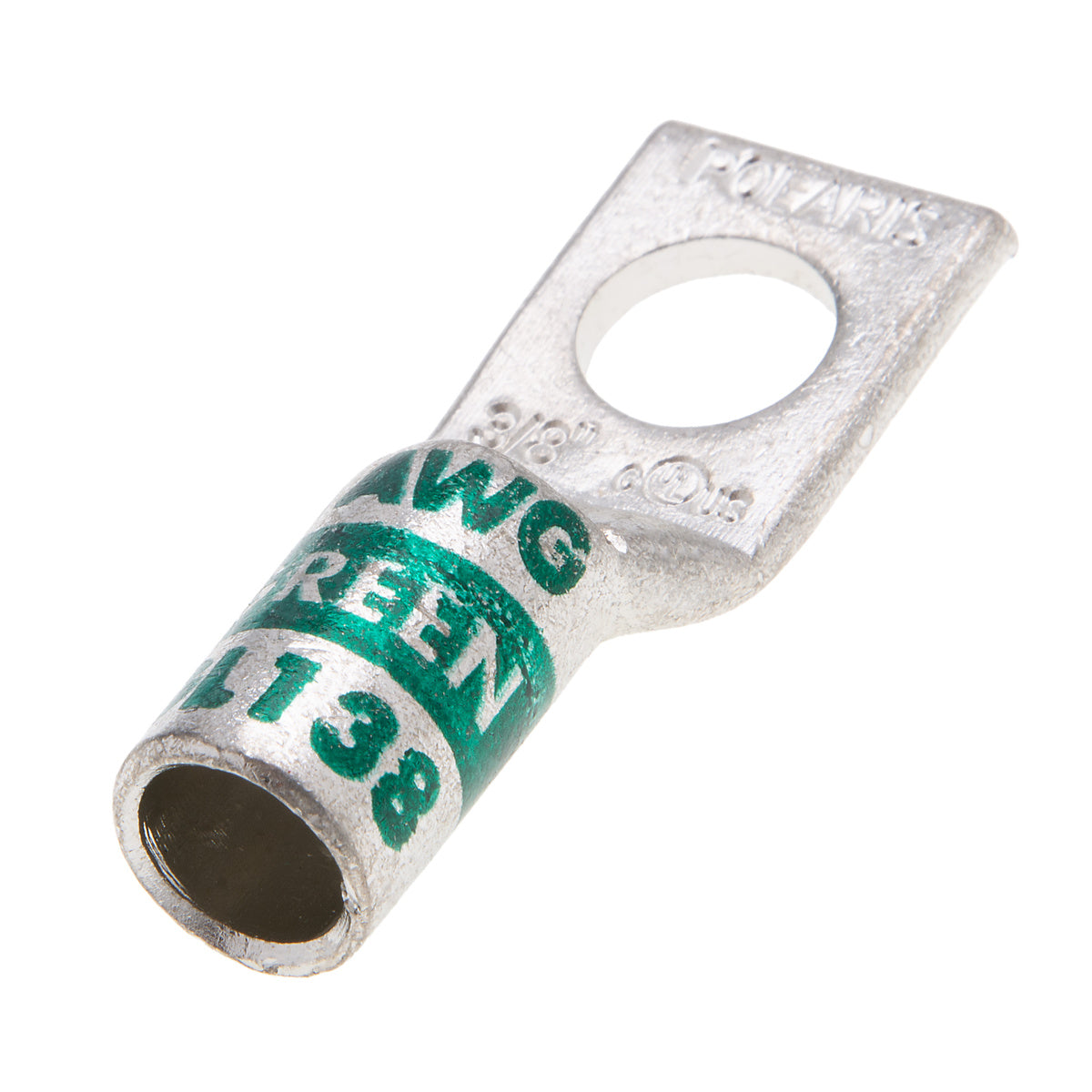

The NSI GL138 POLARIS compression lug creates a permanent, vibration-resistant connection with low contact resistance. It is suitable for power distribution, grounding, and data transmission. Constructed from high conductivity copper tubing with a corrosion-resistant tin-plated finish. A peep hole allows for easy inspection of the termination.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Peep hole allows easy inspection of the termination
• Marked with die index and color coded

Product Highlights

The NSI GL138 is flex rated for use with K, H, G, I, M and DLO cable.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: GL138

Technical Specifications

• Voltage Rating: 35kV
• Material: Copper
• Finish: Tin Plated
• Pack Qty: 50
• UNSPSC: 39121405
• Ul Standard: UL 486A-486B, UL467
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.11
• Tang Length: 0.81
• Wire Range: 1 AWG
• Conductor Size: 1/0 AWG
• Die Color Code: Green
• Mounting Bolt Size: 3/8
• Mounting Hole Diameter: 0.41
• Barrel Length: 1
• Stud Size: 3/8 in
• Barrel Type: Short
• Barrel Size: 0.36 in ID x 0.47 in OD
• Tongue Size: 0.81 in L x 0.67 in W x 0.11 in THK
• Temperature Rating: 90 deg C
• Overall Length: 1.83 in
• Type: 1-Hole
