NSI Nsi GL114 Polaris GL Series CMP Lug Cu Short 1 AWG 1/4 Bolt Size
NSI Nsi GL114 Polaris GL Series CMP Lug Cu Short 1 AWG 1/4 Bolt Size

Nsi GL114 Polaris GL Series CMP Lug Cu Short 1 AWG 1/4 Bolt Size

Brand: NSI
SKU: GL114
Availability: In Stock

Ships same day if ordered by 12 pm
$15.35
$15.35
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

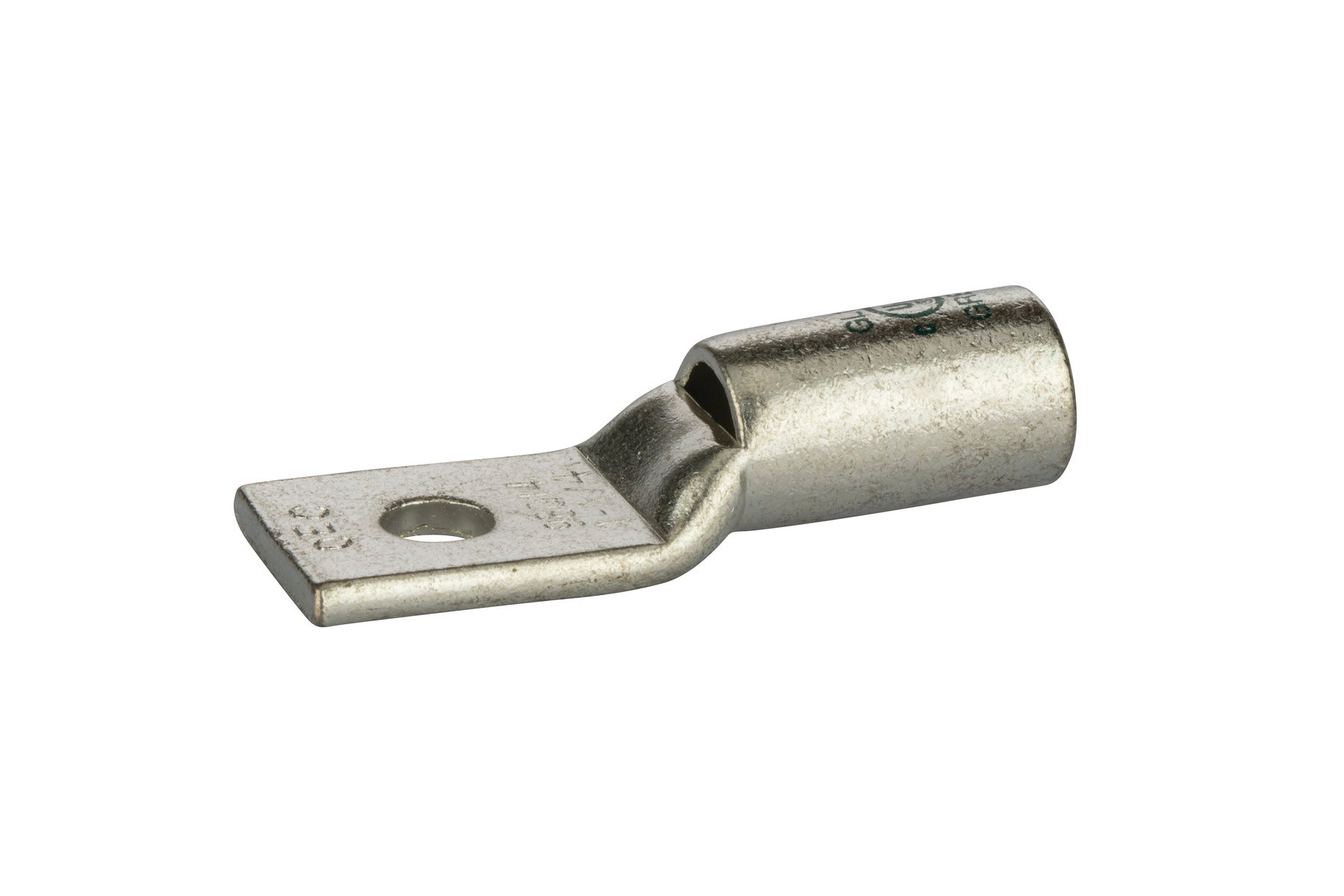

The NSI GL114 Polaris GL Series compression lug creates a permanent, vibration-resistant connection with low contact resistance. It is suitable for power distribution, grounding, and data transmission. Made from high conductivity copper tubing with a corrosion-resistant tin-plated finish. A peep hole allows easy inspection of the termination.

  • High conductivity copper tubing and corrosion resistant tin-plated finish
  • Peep hole allows easy inspection of the termination
  • Marked with die index and color coded

Product Highlights

The NSI GL114 lug is flex rated for use with K, H, G, I, M and DLO cable and UL listed to 35kV when properly installed.

Product Information

Standard Information

  • Brand: NSI
  • Manufacturer Part Number: GL114
  • Country of Origin: India
Technical Specifications
Voltage Rating
600 VAC
Material
Copper
Finish
Tin Plated
Ul Standard
UL 486A-486B, UL467
Wire Cable Class
Class B, Class C
Conductor Type
Copper
Tang Thickness
0.11
Tang Length
0.81
Wire Range
1 AWG
Expanded Wire Range
1 AWG – 6 AWG
Die Color Code
Green
Mounting Bolt Size
1/4
Mounting Hole Diameter
0.25
Barrel Length
1
Product Name
NSI 1 AWG Copper Compression Lug 1/4 Bolt Size (GL114)
Brand
NSI
SKU
NSI-GL114
Mfr. Part Number
GL114
Body Material
Copper
UL Listing
Yes
Barrel Size
0.36 in ID x 0.47 in OD x 0.83 in L
Barrel Type
Short
Color
Green
Conductor Size
1 AWG
Overall Length
1.83 in
Series
GL Series
Stud Size
1/4 in
Temperature Rating
90 deg C
Tongue Size
0.81 in L x 0.67 in W x 0.11 in THK
Type
1-Hole
Cable Size
1 AWG
Barrel Outside Diameter
0.47
Barrel Inside Diameter
0.36
Item
One-Hole Compression Lug
For Conductor Material
Copper
Standards
cULus
Connector Type
Short Barrel with Peep Hole
Mounting
1/4 Mounting Hole
Application
Terminate, Splice, Tap Power Connectors
Environmental Conditions
90 C
Certifications
cULus
Ul File No
E155027
Temp Rating
90C, 9CU
