Nsi GL10N-38 GL-N Compression Peep Hole Lug, 2 Hole, 3/8 inches Stud Size

Product Description

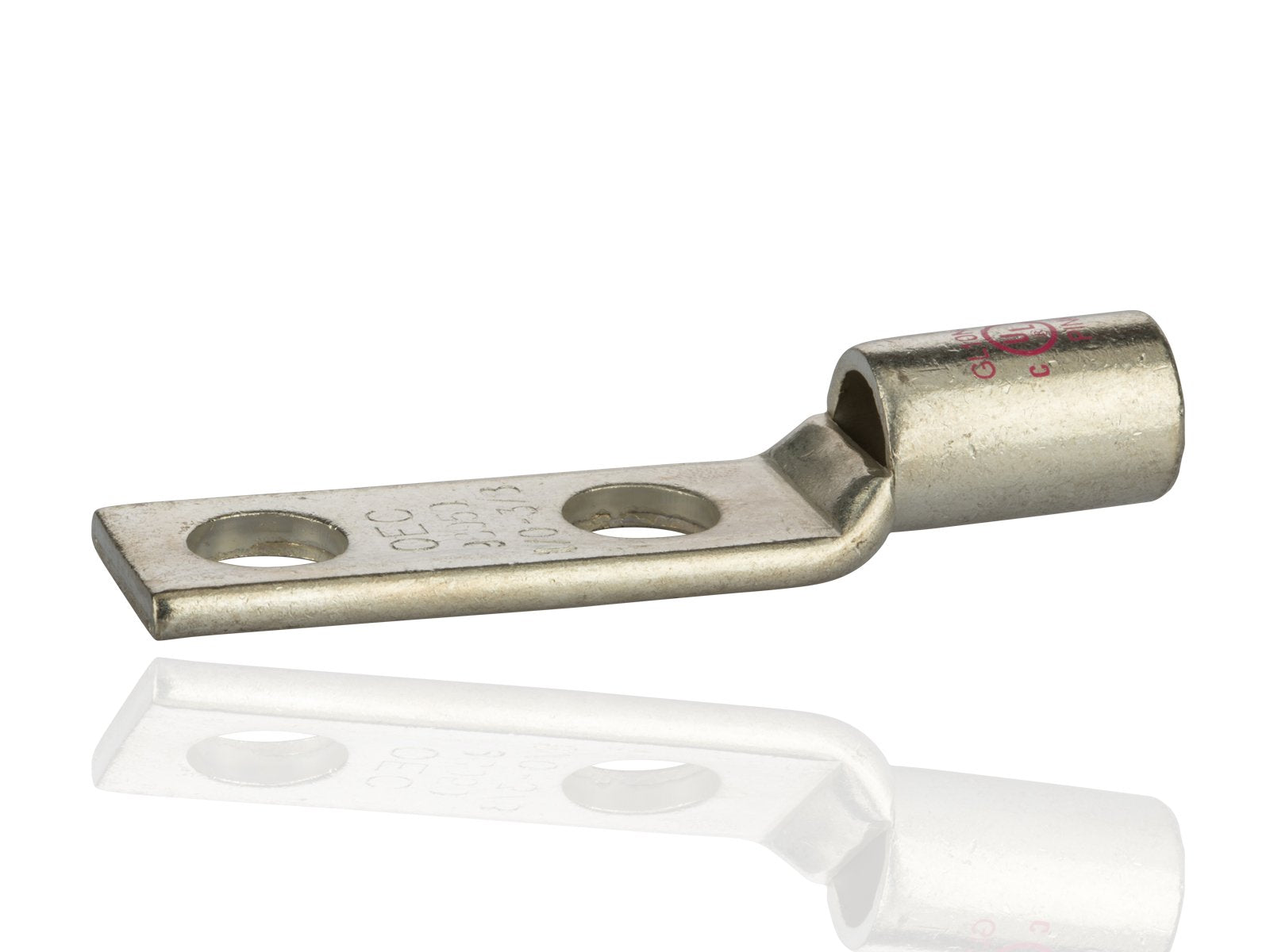

The NSI GL10N-38 copper lug is produced from high conductivity copper tubing. It allows easy inspection of the termination to assure complete cable insertion. This lug is tin-plated to provide corrosion resistance and marked with die index and color code. It is listed for 35 KV maximum when properly installed and for applications greater than 2000 volts.

• Produced from high conductivity copper tubing
• Allows easy inspection of the termination to assure complete cable insertion
• Tin-plated to provide corrosion resistance

Product Highlights

The NSI GL10N-38 copper compression lug ensures secure termination with easy inspection and corrosion resistance. Ideal for high-voltage applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: GL10N-38

Technical Specifications

• Stud Size: 3/8"
• Width: 0.74"
• Length: 2.83"
• Thickness: 0.13"
• Manufacturer: NSi Industries
• Body Material: Copper
• UL Listing: Yes
