Nsi GL1038 compression lug 1/0 AWG 3/8 in stud

Product Description

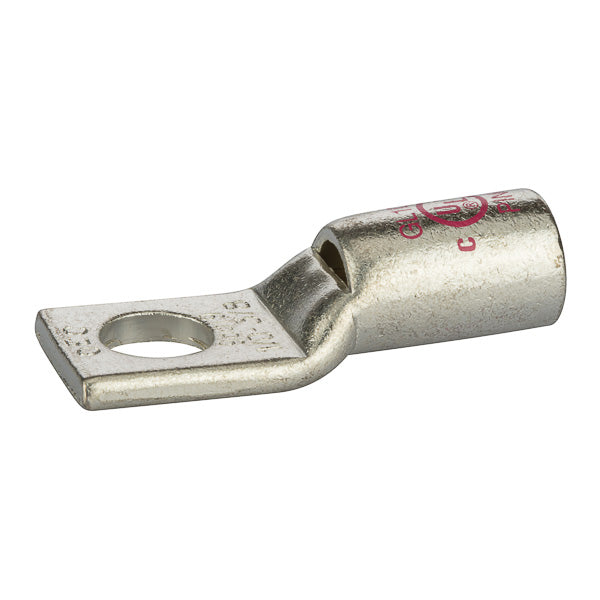

The NSI GL1038 is a 1-hole compression lug designed for stranded conductors. Constructed from high conductivity copper tubing, it is tin plated for corrosion resistance and marked with die index and color coded for easy reference. It accommodates 1/0 AWG conductors and has a 3/8 inch stud. Listed for 35 kV maximum when properly installed.

• Made from high conductivity copper tubing
• Tin plated to provide corrosion resistance
• Marked with die index and color coded for easy reference

Product Highlights

The NSI GL1038 compression lug ensures secure electrical connections with its durable construction and easy identification features.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: GL1038
• Country of Origin: United States

Technical Specifications

• Barrel Size: 0.389 in ID x 0.519 in OD
• Barrel Type: Short
• Color: Pink
• Mounting Hole Size: 3/8 in
• Overall Length: 1.83 in
• Temperature Rating: 90 deg C
• Tongue Size: 0.81 in L x 0.739 in W x 0.13 in THK
• Type: 1-Hole
• Voltage Rating: 600 VAC
• Conductor Size: 1/0 AWG
• Conductor Type: Stranded
• Stud Size: 3/8 in
• Material: Copper
• Standards: UL486, CUL Listed
• No. of Holes: 1
• Country of Origin: United States
