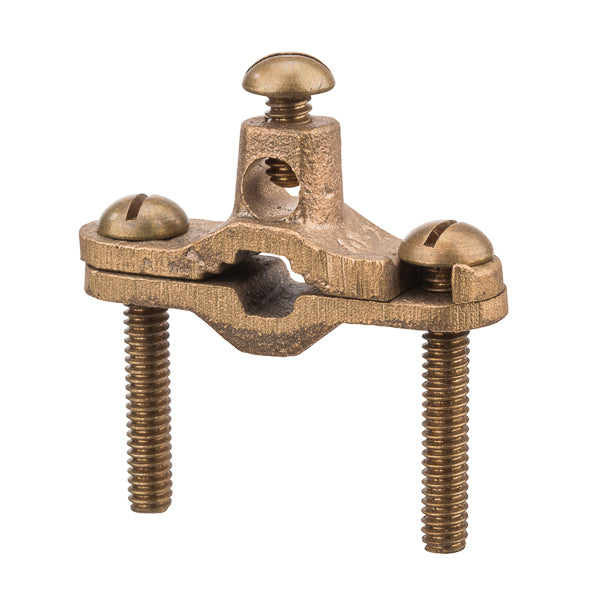

NSI G-1-SDBR Heavy Duty Grounding Clamp 3/8 to 1 in Rod 10 to 2 AWG Conductor

Product Description

The NSI G-1-SDBR Heavy Duty Grounding Clamp is designed for effective grounding applications. This clamp accommodates rods from three-eighths to one inch and can handle conductors ranging from ten to two AWG. Made from silicon bronze, it offers durability and reliability for various electrical bonding tasks.

• Provides strong bonding for grounding wire and copper pipes.
• Compatible with both solid and stranded conductors.
• Easy installation with tough stainless steel screws.

Product Highlights

This clamp is suitable for connecting grounding wires to copper water pipes. It is a necessary component for effective grounding in electrical systems.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Conductor Type: Solid/Stranded
• Dimensions: 2.28 in L x 0.65 in W x 1.4 in H
• Pipe Size: 3/8 to 1 in
• Rod Size: 3/8 to 1 in
• Conductor Size: 10 to 2 AWG
• Material: Silicon Bronze
• Series: G-S DBR
• Type: Heavy Duty
