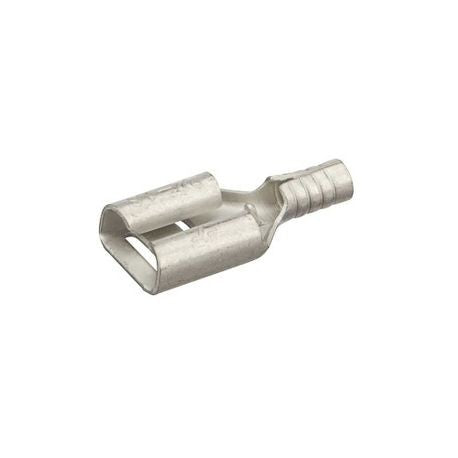

NSI F22-250-3V Miniterms Female Disconnect 22 to 18 AWG

Product Description

The NSI Miniterms F22-250-3V is a female disconnect designed for wire termination. This connector accommodates twenty-two to eighteen American Wire Gauge (AWG) conductors. It features a copper tab with dimensions of 0.25 inches wide and 0.032 inches thick.

• Designed for twenty-two to eighteen AWG conductors
• Insulated for safety
• Constructed from durable copper material

Product Highlights

This connector is ideal for securely terminating wiring in various electrical applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Series: F
• Type: Insulated
• Color: Red
• Voltage Rating: 300 VAC
• Dimensions: 0.826 inches long x 0.259 inches wide
• Temperature Rating: 105 degrees Celsius
• Tab Size: 0.25 inches x 0.032 inches
• Conductor Size: 22 to 18 AWG
• UPC: 662381069542
• Material: Vinyl
• UNSPSC: 39121432
• Minimum Order Quantity: 1
• Order Interval: 1
• Standard & Approvals: cULus Listed
