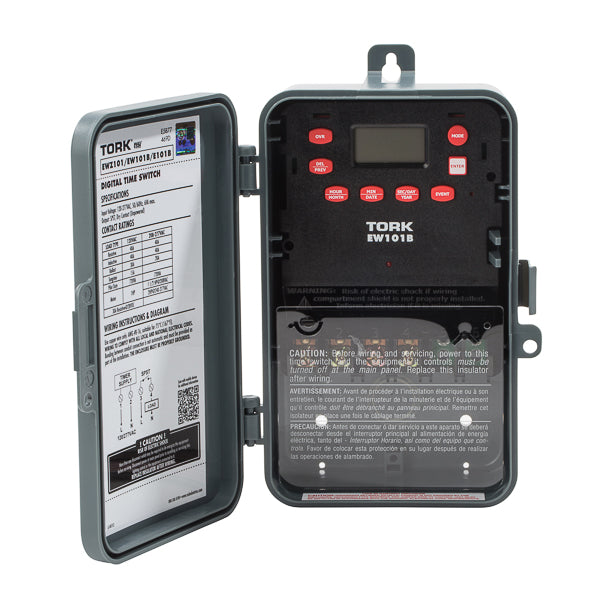

Nsi EW101B Series EW Tork Multipurpose Control 7 Day Time Switch, 120-277 VAC Input Supply, 1 Channel, SPST Output Dry Contact, 8 - #16 AWG

Product Description

The NSI EW101B Series EW Tork Multipurpose Control is a 7 Day Time Switch with a 120-277 VAC input supply. It features 1 channel and a SPST output dry contact, with wiring compatibility for 8 - #16 AWG. Suitable for outdoor signs, lighting security, heating and air conditioning.

• 20 On and Off set points for individual programs for each day of the week, minimum setting is 1 min
• Automatic adjustment (can be omitted)
• Automatic leap year compensation

Product Highlights

This NSI time switch offers versatile control with automatic adjustments and a super capacitor for real-time backup.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: EW101B
• Country of Origin: US

Technical Specifications

• Input Supply: 120-277 VAC
• Channel: 1
• Output: SPST Output Dry Contact
• Wiring: 8 - #16 AWG
• Amperage Rating: 40 A
• Display Type: Digital LED
• Enclosure Type: NEMA 3R
• Mounting Type: Threaded
• Number of Channels: 1
• Operation Mode: 7 days
• Series: EW Series
• Temperature Rating: -40 to 149 deg F
• Time Setting: 1 min to 24 hr
• Voltage Rating: 120 to 277 VAC
• Horsepower: 1 hp, 1-1/2 hp, 2 hp
• Contact Form: SPST
• Number of Poles: 1
• Current Rating: 40 Ampere at 120 to 277 VAC (General Purpose, NO), 30 Ampere at 120 VAC, 20 Ampere at 208 to 277 VAC (Ballast, NO), 15 Ampere at 120 VAC (Tungsten, NO), 30 Ampere at 28 VDC (Resistive, NO), 40 Ampere at 120 to 277 VAC (Inductive, NO)
• Power Rating: 1 HP at 120 VAC, 1-1/2 HP at 208 VAC, 2 HP at 240 to 277 VAC (Motor Load, NO), 720 VA at 120 to 277 VAC (Pilot Duty, NO)
• Reserve Power: Super Capacitor 4 Days
• Material: Polycarbonate
• Application: Outdoor Signs, Lighting Security, Heating and Air Conditioning
• Approval: UL (Canada and US)
• Input Voltage: 120 - 277 VAC, 50/60Hz (automatic detection)
• Terminal Range: #8 - #16 AWG
• Operating Temperature: -40 to +149 degrees
• Power Consumption: 6 VA maximum
• Catalog Number: EW101B
• Standards: cULus Listed
• Brand: TORK®
• Manufacturer: NSi Industries, LLC
