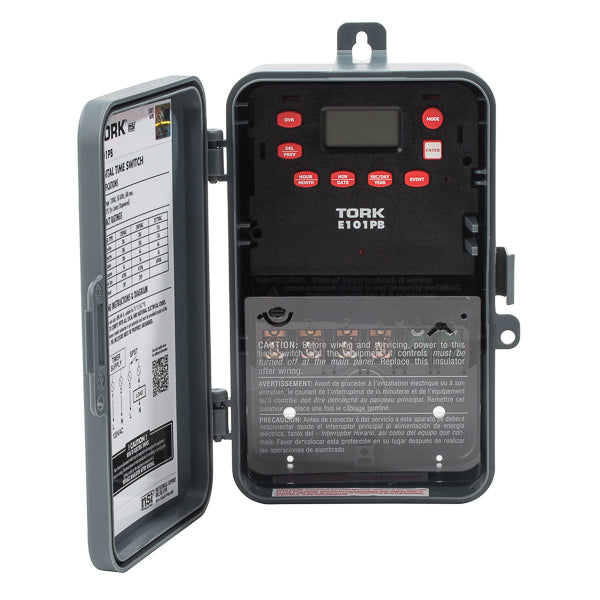

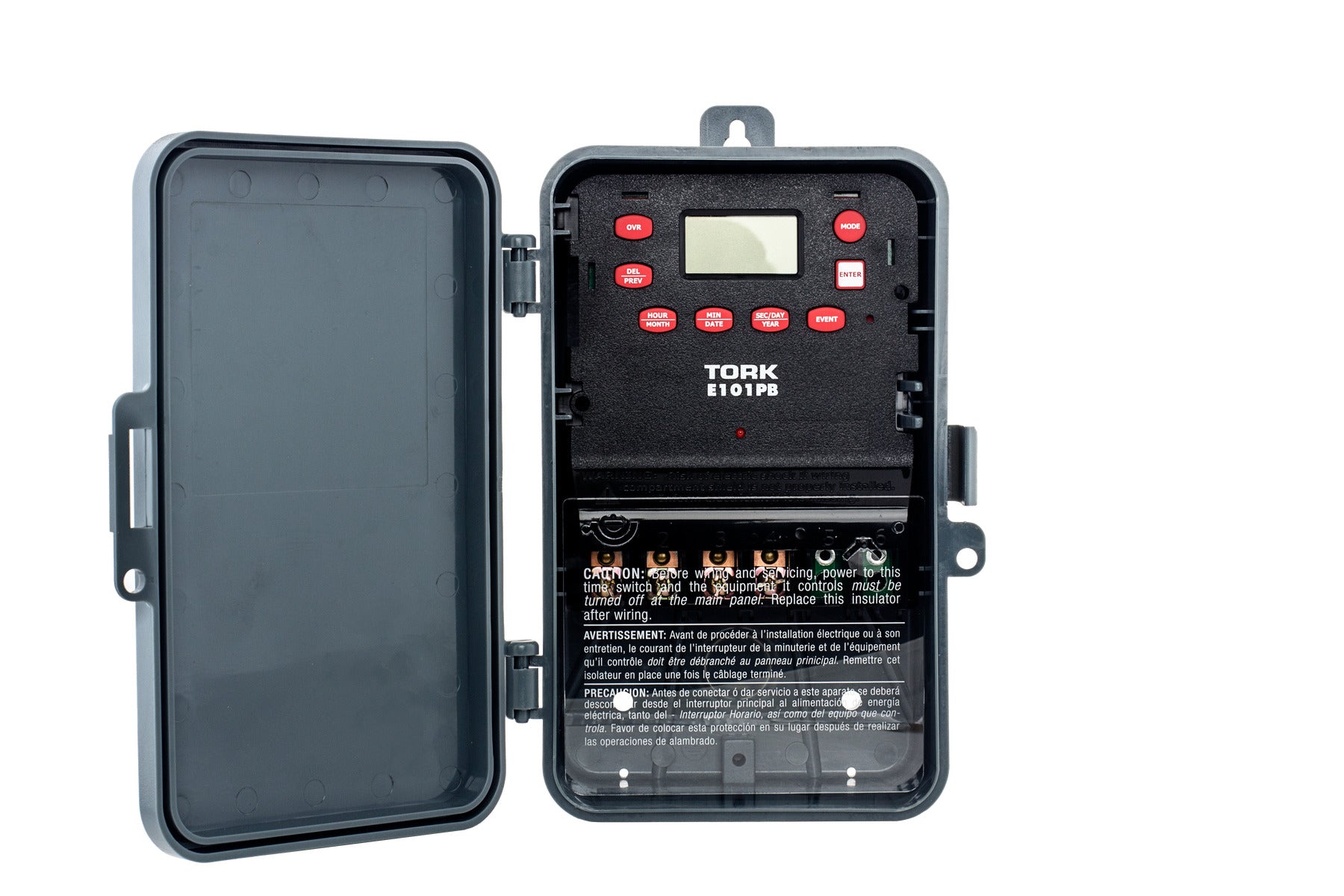

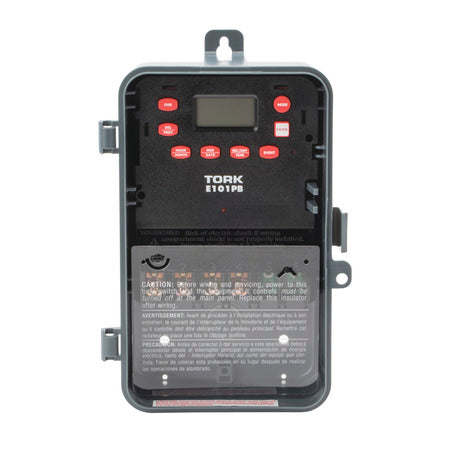

Nsi E101PB TORK Electronic Timer 1-Phase Multi-Purpose

Product Description

The NSI E101PB TORK Electronic Timer is a 1-Phase Multi-Purpose timer from the E Series, designed for on/off operation. It operates at 120 VAC with an amperage rating of 12/30 A and a power rating of 1 hp to 2 hp. This timer features a digital display and a NEMA 3R enclosure, suitable for temperatures ranging from -40 to 149 deg F.

• Scheduling 20 ON-OFF set points repeat each day, minimum setting 1 min
• Daylight saving automatic adjustment (can be omitted)
• Leap year automatic compensation

Product Highlights

Automate lights, heaters, air conditioners, and more with this versatile timer. Features a 4-day power outage backup and automatic daylight savings time adjustment.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: E101PB
• Country of Origin: China

Technical Specifications

• Amperage Rating: 12/30 A
• Display Type: Digital
• Enclosure Type: NEMA 3R
• Mounting Type: Threaded
• Number of Channels: 1
• Operation Mode: On/Off
• Series: E Series
• Temperature Rating: -40 to 149 deg F
• Type: 1-Phase Multi-Purpose
• Time Setting: 1 min to 24 hr
• Voltage Rating: 120 VAC
• Horsepower: 1 hp, 2 hp
• Contact Form: SPST
• Number of Poles: 1
• Maximum Number of Operations: 20 per Day
• Switch Type: SPST
• Current Rating: 40 Ampere at 120 to 277 VAC (General Purpose, NO), 30 Ampere at 120 to 277 VAC (General Purpose, NO/NC), 40 Ampere at 120 to 277 VAC (Inductive, NO), 30 Ampere at 120 to 277 VAC (Inductive, NO/NC), 30 Ampere at 120 VAC (Ballast, NO), 10 Ampere at 120 VAC (Ballast, NC), 15 Ampere at 120 VAC (Tungsten, NO/NC), 30 Ampere at 28 VDC (Resistive, NO/NC)
• Power Rating: 720 VA at 120 to 277 VAC (Pilot Duty, NO/NC), 1 HP at 120 VAC (Motor, NO/NC), 1-1/2 HP at 208 VAC (Motor, NO/NC), 2 HP at 240 to 277 VAC (Motor, NO/NC)
• Reserve Power: Super Capacitor 4 Days
• Material: Polycarbonate
• Application: Signs, Air Conditioning, Lighting, Sump Pumps, Ventilating Fans
• Approval: UL (Canada and US)
• Frequency Rating: 50-60 Hz
• Standard: UL917
• Timing Range: 24 Hour
