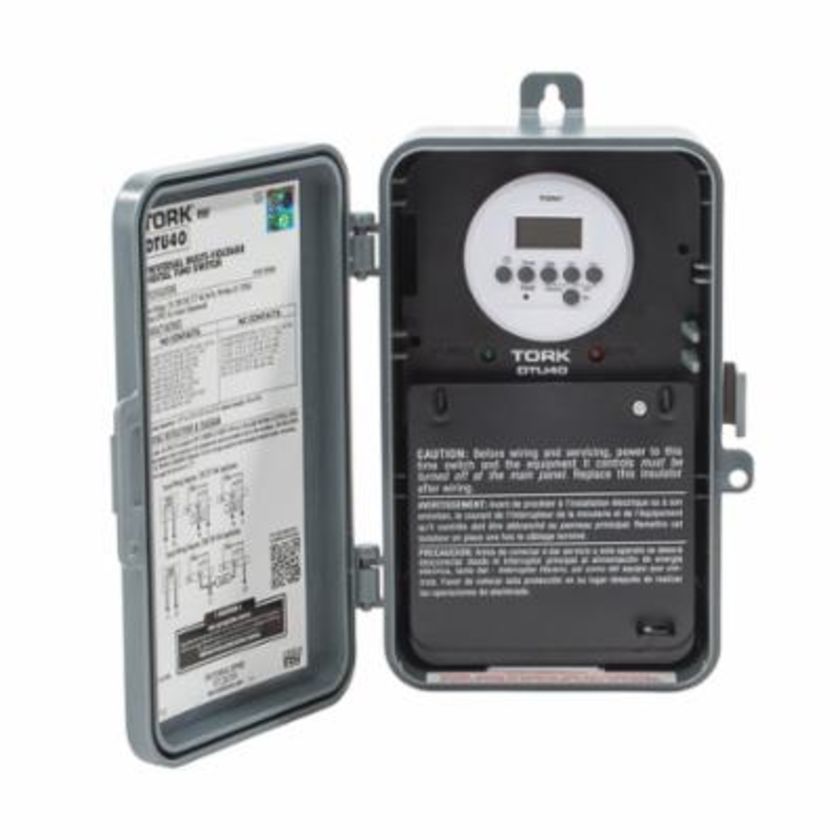

NSI DTU40 1-Phase Automatic Voltage Detection Time Switch 120/208/240/277 VAC 1/4 to 1 hp 1/2 to 2 hp DPDT Contact 2 Poles

Product Description

The NSI Tork® DTU40 is a 1-Phase Automatic Voltage Detection Time Switch with a voltage rating of 120/208/240/277 VAC. This product is suitable for various applications, including pumps, motors, fans, signs, and lighting control. It features DPDT contacts and is capable of handling loads ranging from one-fourth to two horsepower. The timer supports seven on and off pairs for daily programs, ensuring flexibility in scheduling.

• Automatic voltage detection for optimal performance.
• Manual button for immediate one-hour adjustments.
• Compatible with multiple applications, including HVAC systems and lighting controls.

Product Highlights

The DTU40 features a user-friendly AM/PM clock format and a battery backup system that retains the time and schedule during power outages. It is designed with a durable polycarbonate enclosure suitable for indoor and outdoor use.

Product Information

Standard Information

• Brand: NSI
• Manufacturer: NSi Industries

Technical Specifications

• Voltage Rating: 120/208/240/277 VAC
• Amperage Rating: 40 A
• Temperature Rating: -31 to 116 deg F
• Dimensions: 5.625 inches L x 4.5 inches W x 8.312 inches H
• Contact Configuration: DPDT
• Enclosure Type: Polycarbonate, NEMA 3R
• Frequency Rating: 50/60 Hz
• Timing Range: 7 Days
