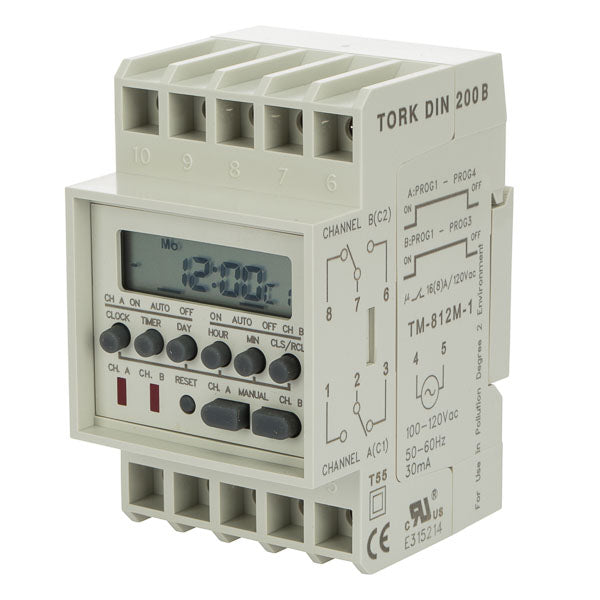

Nsi DIN200B Digital Time Switch 120 VAC

Product Description

The NSI DIN200B TORK® Digital Time Switch features on/off operation mode. This 2-channel, 7-day time switch has SPDT contact form and an 8-pair on/off ratio. Operating within a temperature range of 14 to 131 deg F, it supports threaded mounting and is sized at 2.066 in L x 2.362 in W x 3.346 in H.

• Scheduling 8 ON/OFF pairs of set points for DIN100B, 4 ON/OFF (CH A) and 3 ON/OFF (CH B) pairs of set points for DIN200B, Individual programs on each day of the week, minimum setting is 1 min
• Manual override until the next regularly scheduled ON/OFF, automatic operation then resumes
• Clock format AM/PM

Product Highlights

This NSI digital time switch offers 7-day scheduling and is suitable for panel builders, indoor/outdoor lighting, security systems, and HVAC equipment.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: DIN200B

Technical Specifications

• Amperage Rating: 16 A
• Dimensions: 2.066 in L x 2.362 in W x 3.346 in H
• Mounting Type: Threaded
• Number of Channels: 2
• On/Off Ratio: 8-Pair
• Operation Mode: On/Off
• Series: DIN
• Temperature Rating: 14 to 131 deg F
• Time Setting: 7 days
• Voltage Rating: 120 VAC
• Contact Form: SPDT
• Number of Poles: 1
• Brand: NSI
• Voltage (V): 120 VAC, 50/60 Hz
• Amperage: 16A
• Switch Type: SPDT
• Mounting: Screw Mount
• Operates: Panel Builders-Indoor-Outdoor Lighting-Security Systems-HVAC Equipment
• Type: 7 Day Din Rail Time Switch
• Start Temp. (Min): 14 °F (-10 °C)
• Start Temp. (Max): 113 °F (+45 °C)
• Voltage: 120V
