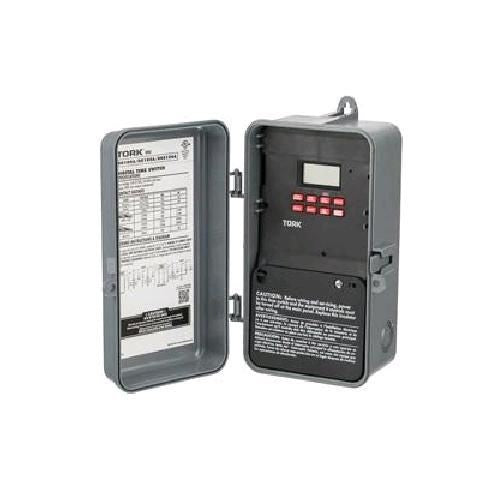

Nsi DG100A Tork Time Switch, 120 to 277 VAC, 2 Poles

Product Description

The NSI DG100A Tork Time Switch features a setting range from 1 minute to 7 days and operates between 120 to 277 VAC. It includes a 1NO-1NC/DPDT contact and 2 poles. Suitable for indoor and outdoor lighting, HVAC equipment, and traffic lights. The digital time switch has a NEMA 3R enclosure and is cULus Listed.

• Offers 56 ON/OFF set points, allowing individual programs for each day of the week with a minimum of 1 minute apart.
• Features 2-second contact closures for on and off control of mechanically held contactors or latching relays.
• Includes 9 holiday blocks that can be set for individual days or for a duration of any number of days.

Product Highlights

Digital time switch with 56 ON/OFF settings, holiday blocks, and a NEMA 3R enclosure for indoor/outdoor use.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: DG100A

Technical Specifications

• Mounting Type: Screw
• Number of Channels: 1
• Number Of Poles: 2
• Operation Mode: Astro 365-7 Days
• Amperage Rating: 20/10 A
• Contact Form: NO-NC DPDT
• Display: LED
• Enclosure Type: NEMA 3R
• Series: DG100
• Temperature Rating: -31 to 131 deg F
• Type: Digital
• Voltage Rating: 120 to 277 VAC
• Application: Indoor/Outdoor Lighting, HVAC Equipment, School Warning and other Traffic Lights, Water Heaters in Offices, Churches and Factories
• Standard & Approvals: cULus Listed
• Time Setting: 1 min to 7 days
• Horsepower: 0.25 to 1 hp at 120 VAC/0.25 to 2 hp at 240 VAC
• Volts AC Range: 120 - 277
• IP/NEMA Rating: NEMA 3R
