Nsi DE713 terminal lug 4 to 3/0 AWG

Product Description

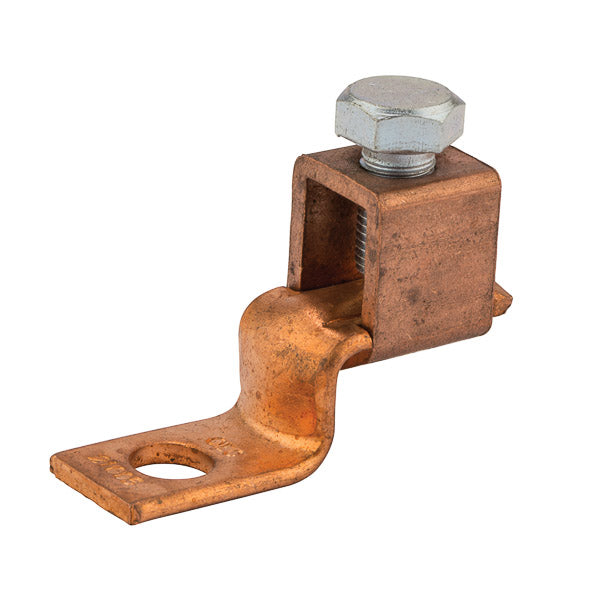

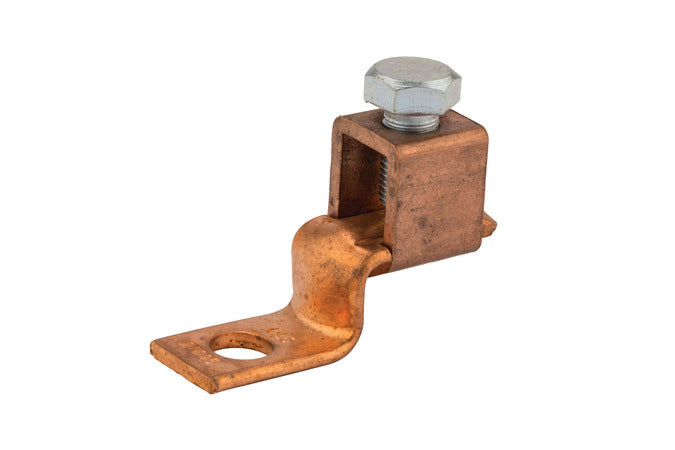

The NSI DE713 terminal lug is a mechanical single solderless lug designed for copper conductors. It accommodates 4 to 3/0 AWG conductors and features a 3/8 inch stud. This lug is suitable for applications requiring a secure and reliable electrical connection. Rated to 600 VAC and 175A.

• Made of 99.98% pure electrolytic copper
• Steel plated screws to prevent rusting
• 25 to 70 A sizes have slotted head screws

Product Highlights

The NSI DE713 lug ensures a robust connection for copper conductors, with a focus on preventing corrosion and maintaining conductivity.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: DE713

Technical Specifications

• Type: Mechanical Single Solderless
• Series: DE Series
• Material: Electrolytic Copper
• Stud Size: 3/8 in
• Tongue Size: 0.44 in L x 0.13 in THK
• Conductor Size: 4 to 3/0 AWG
• Conductor Type: Copper
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Number of Bolt Holes: 1
• For Use With: Copper wire only
• Brand: NSI
• Body Material: Copper
• UL Listing: Yes
• Amperage Rating: 175
