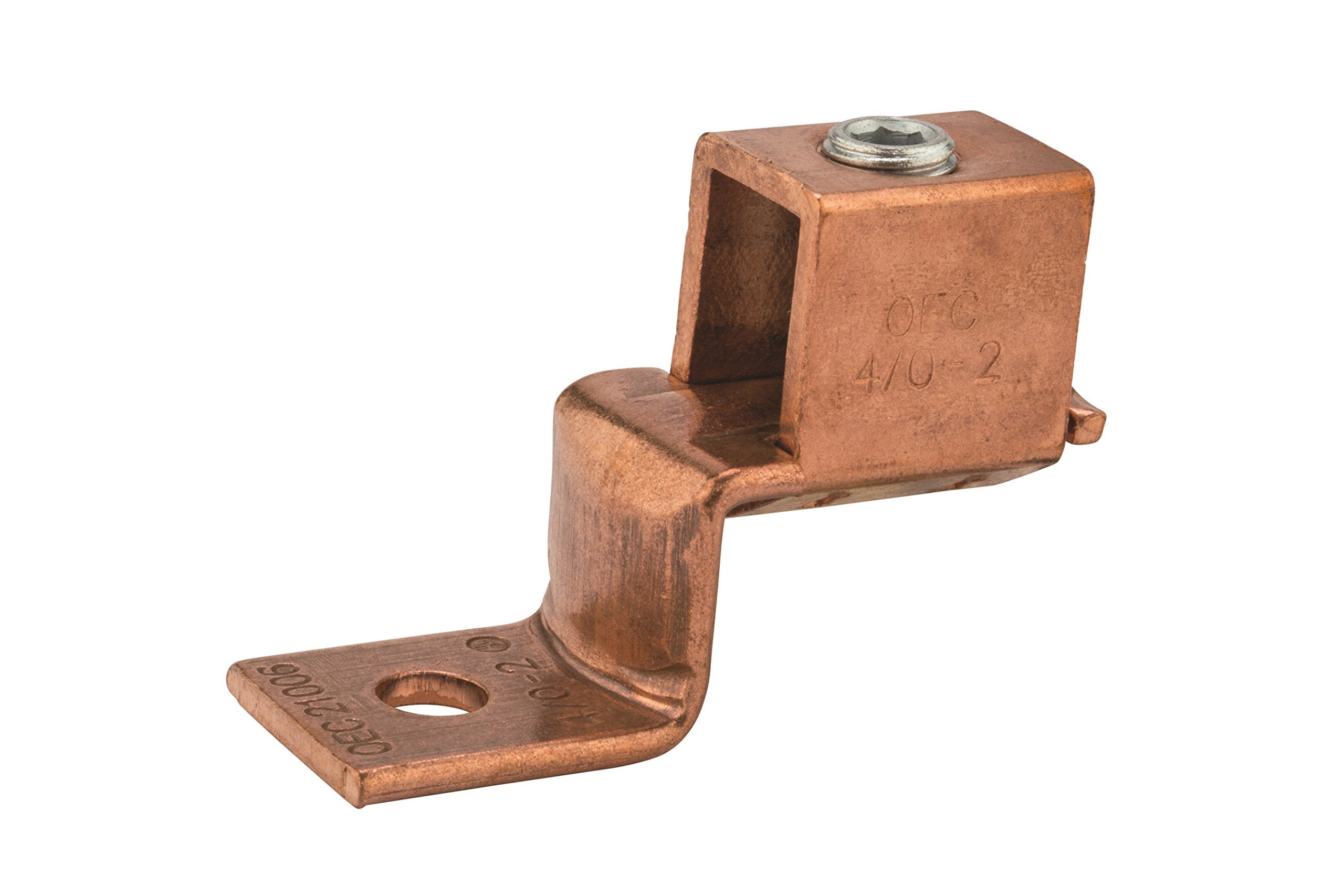

Nsi DE707 Lug Compression Connector 2 to 4/0 AWG

Product Description

The NSI DE707 lug compression connector is a single solderless connector from the DE Series, designed for 2 to 4/0 AWG conductors. It features a 1/2 inch stud and one bolt hole, with a tongue size of 0.47 in L x 1 in W x 0.13 in THK. Rated to 600V and 90 degrees C.

• Made of 99.98% pure electrolytic copper
• Steel plated screws to prevent rusting
• 25 to 70 A sizes have slotted head screws

Product Highlights

This copper lug compression connector ensures secure connections and NEC compliance for grounding and bonding applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: DE707
• Country of Origin: US

Technical Specifications

• Series: DE Series
• Type: Single Solderless
• Conductor Size: 2 to 4/0 AWG
• Stud Size: 1/2 in
• Number of Bolt Holes: 1
• Voltage Rating: 600 V
• Temperature Rating: 90 deg C
• Material: Copper
• Rated Voltage: 600 Volts Max
• Mounting Options: 5/16 in. mounting hole
