Product Description

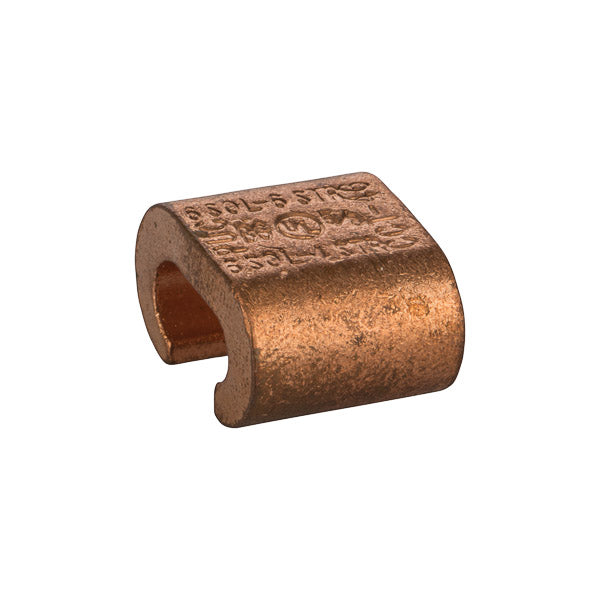

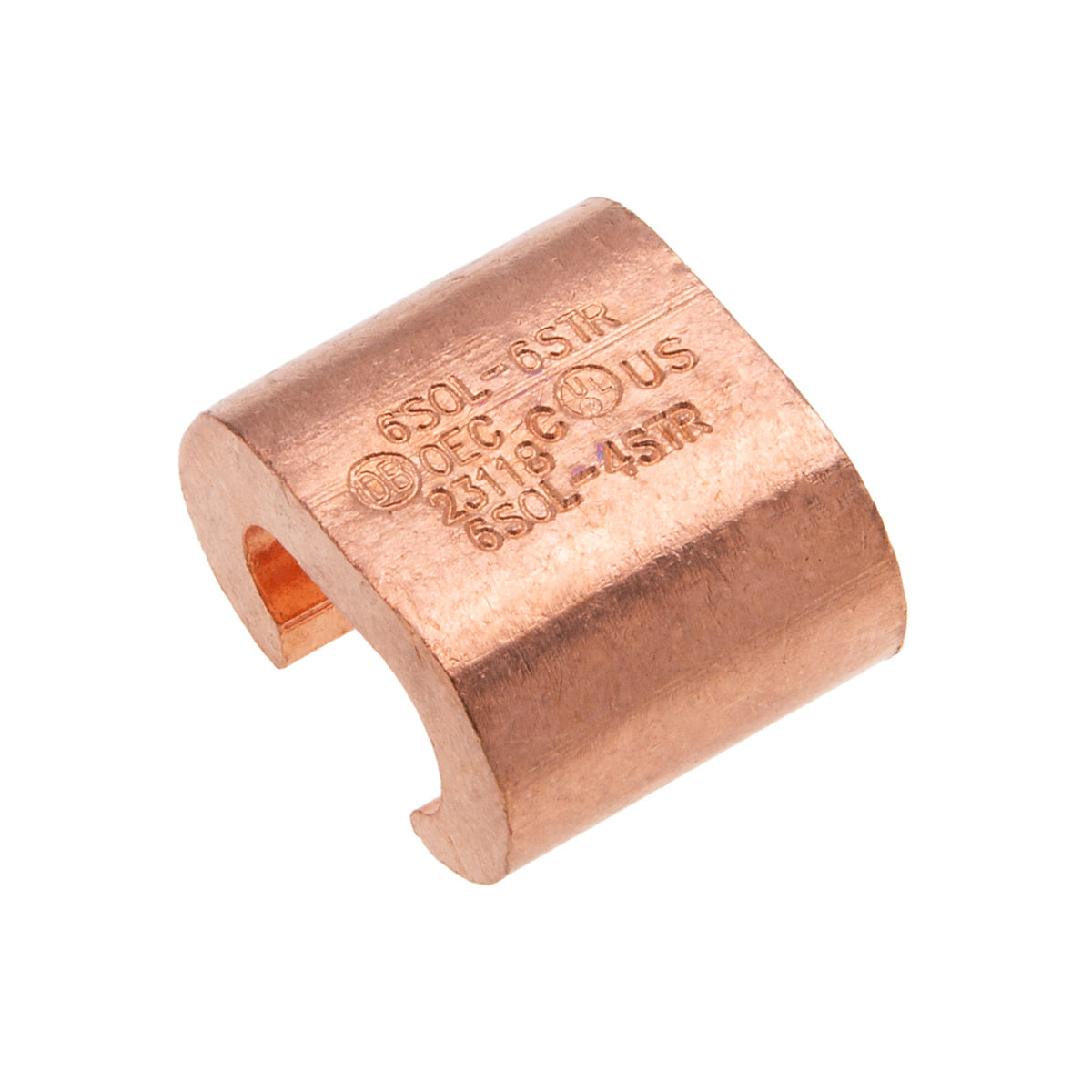

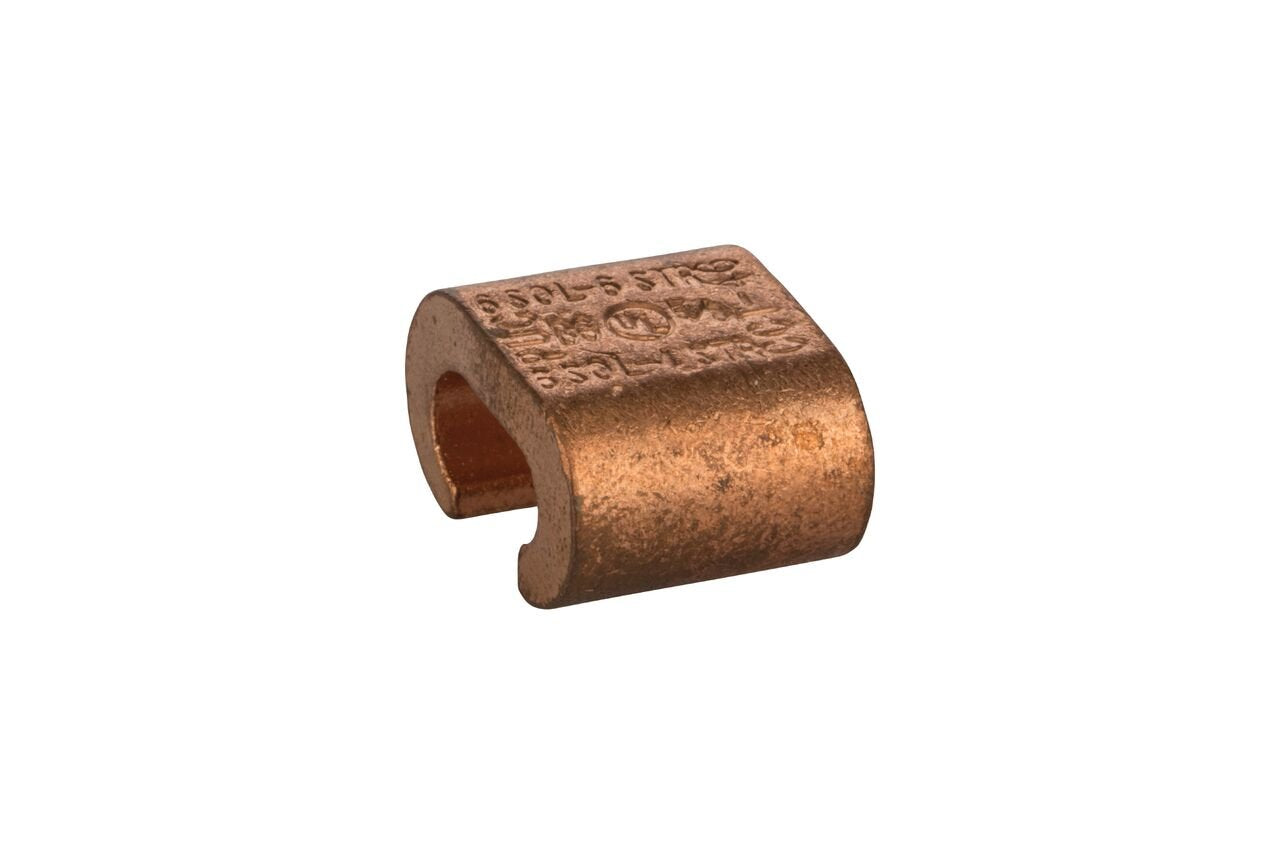

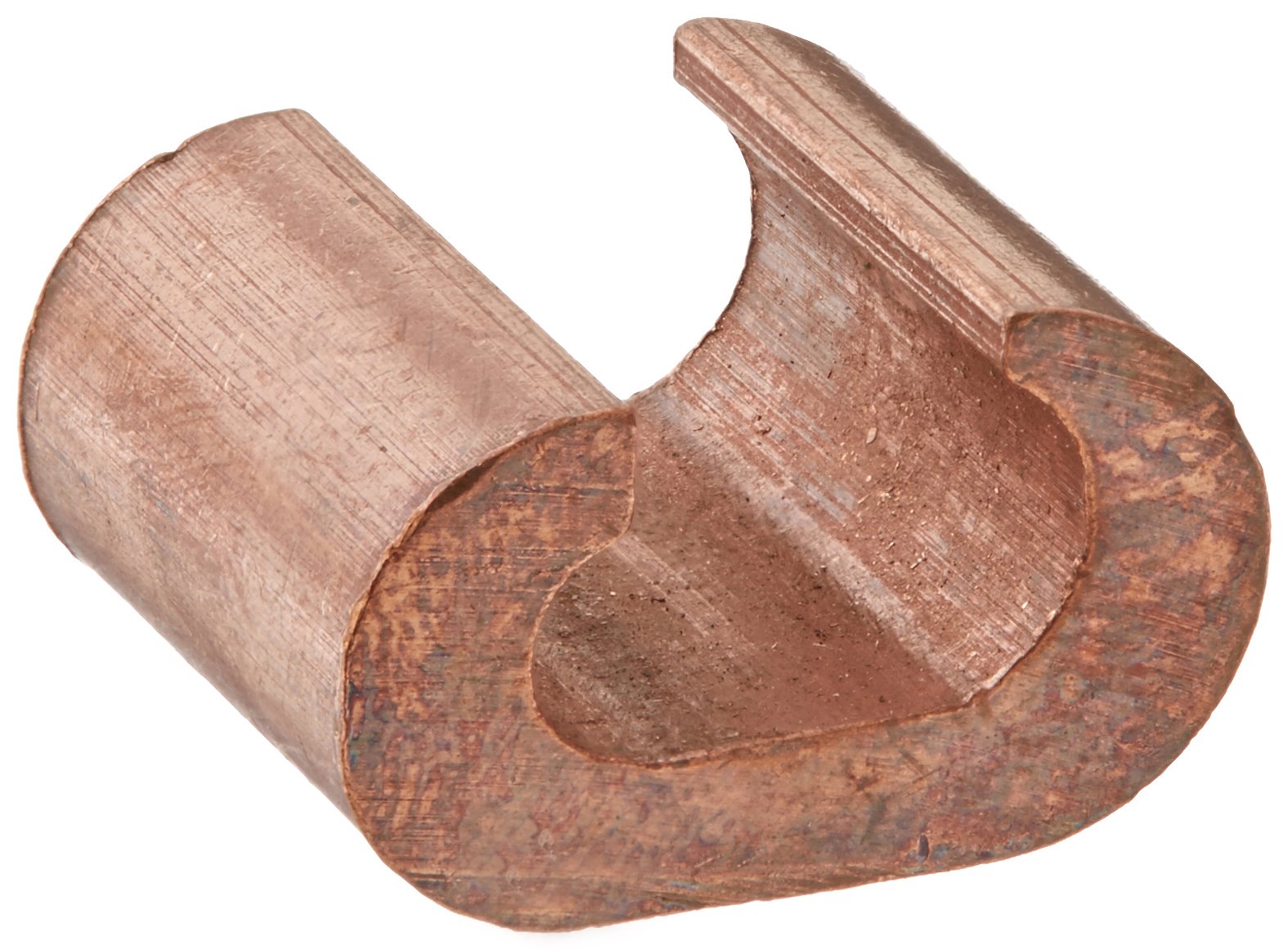

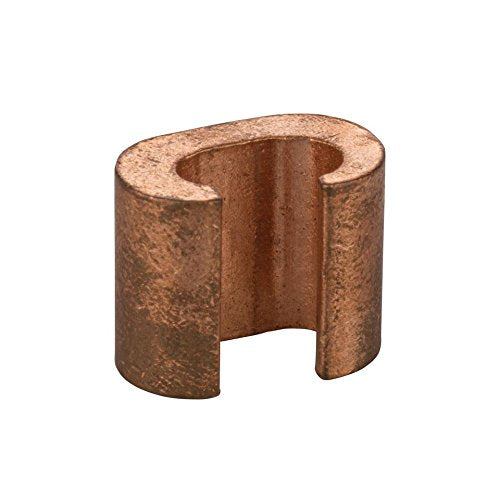

The NSI CTH-46 C-Tap Compression Connector is a heavy-duty connector designed for making tap or parallel copper connections. Constructed from high conductivity copper alloy, it ensures consistent reliability. The C shape reduces installation time. It accommodates 6 to 4 AWG main/run and 6 AWG tap, with a voltage rating of 600 VAC and a temperature rating of 90 degrees C.
- Made from high conductivity copper alloy
- Ideal for making tap or parallel copper connections from 8 AWG solid to 4/0 AWG stranded conductors
- Heavy wall construction prevents relaxation of the joint after installation
Product Highlights
The CTH-46 is a reliable compression connector for copper conductors, suitable for various power connection applications.
Product Information
Standard Information
-
Brand: NSI
-
Manufacturer Part Number: CTH-46
-
Country of Origin: USA
Technical Specifications
-
Conductor Type: Solid/Stranded
-
Finish: Copper
-
Series: CTH Series
-
Temperature Rating: 90 deg C
-
Type: Heavy Duty
-
Voltage Rating: 600 VAC
-
Shape: C
-
Main/Run Size: 6 to 4 AWG
-
Tap Size: 6 AWG
-
Material: Copper
-
Die Index: BG
-
Approval: UL 486A, UL 486B, UL (Canada and US)
-
Application: Terminate, Splice, Tap Power Connectors
-
Conductor range run: 6 sol - 4 str
-
Conductor range tap: 6 sol - 6 str
-
Suitable for: Direct burial and CSA rated electrical and grounding
-
UL: CU486A, 467
-
Max Temperature: 194 degrees F
-
Voltage: 600 Volt
-
Certifications and Standards: cULus, UL Listed, UL 486A, UL 467
