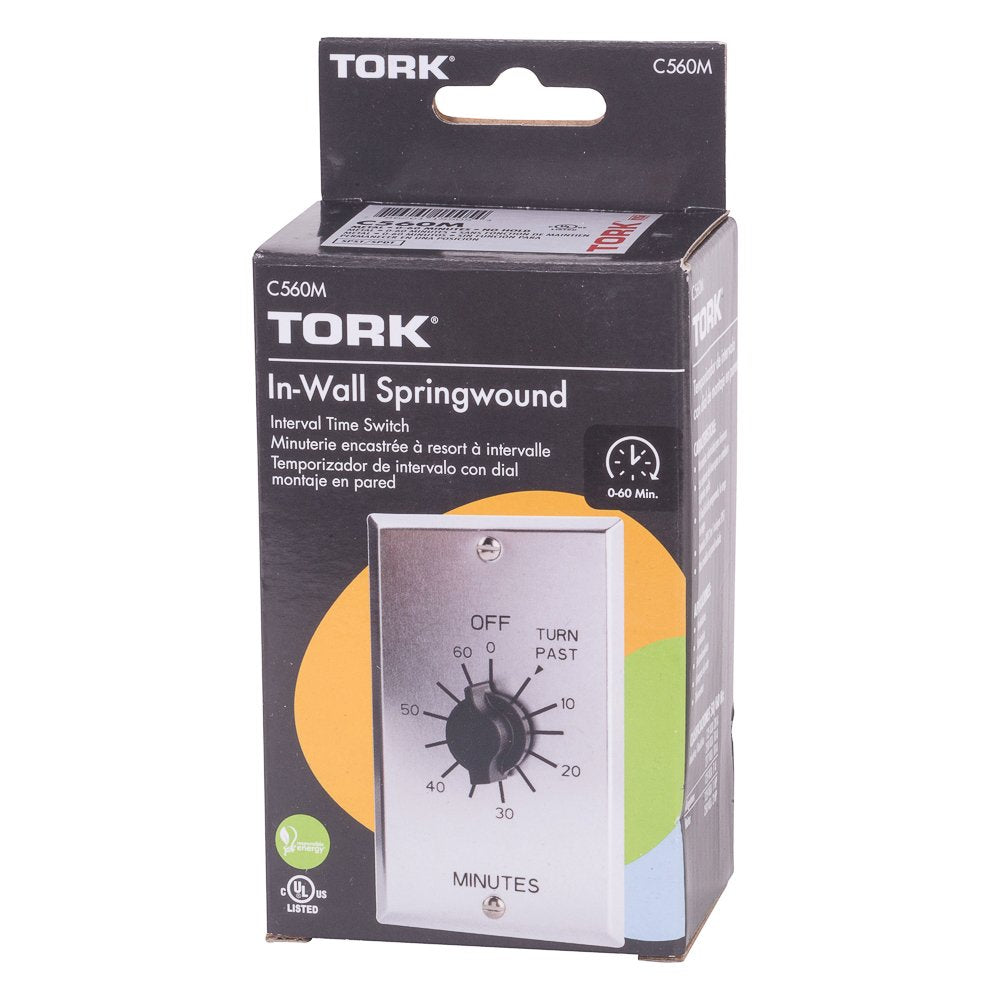

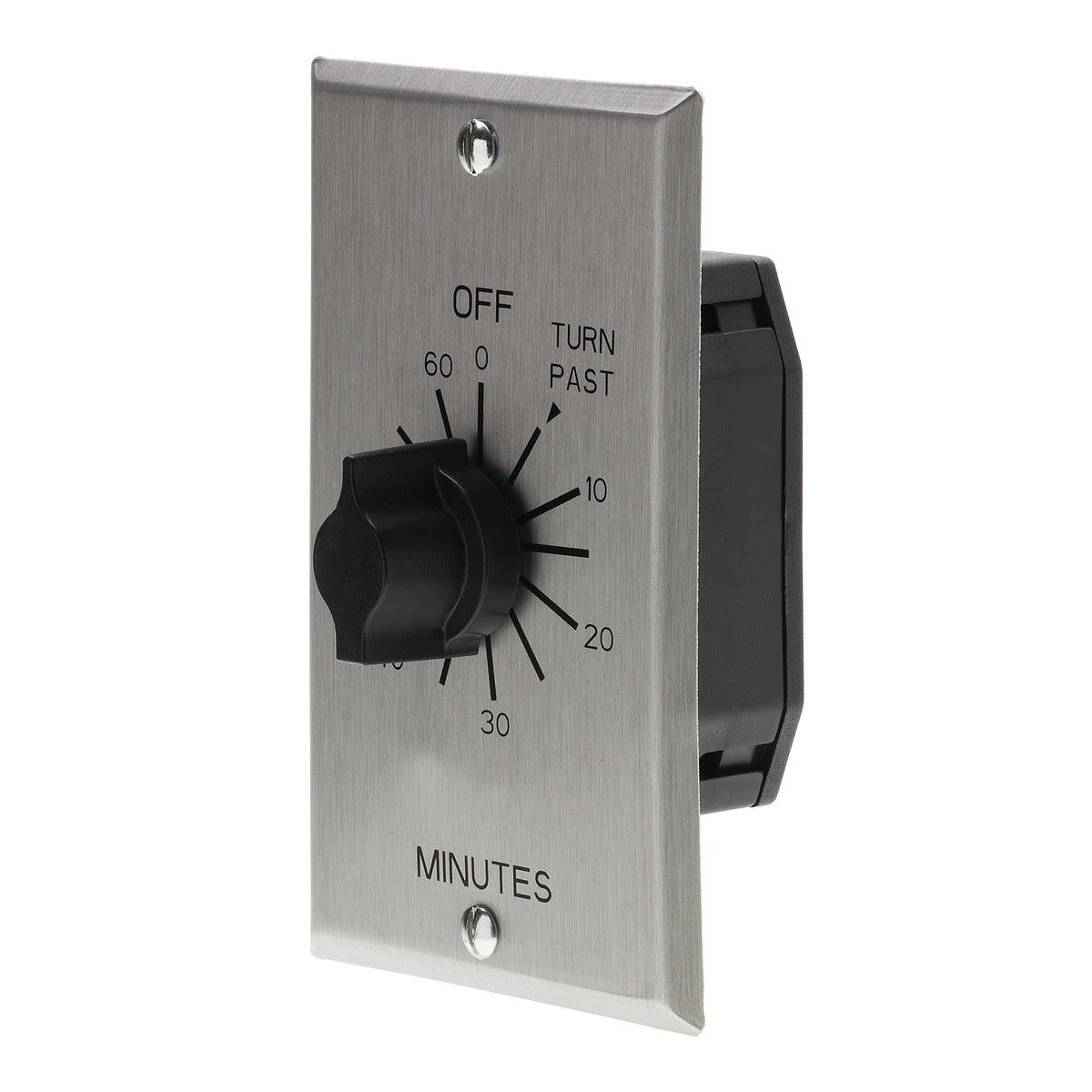

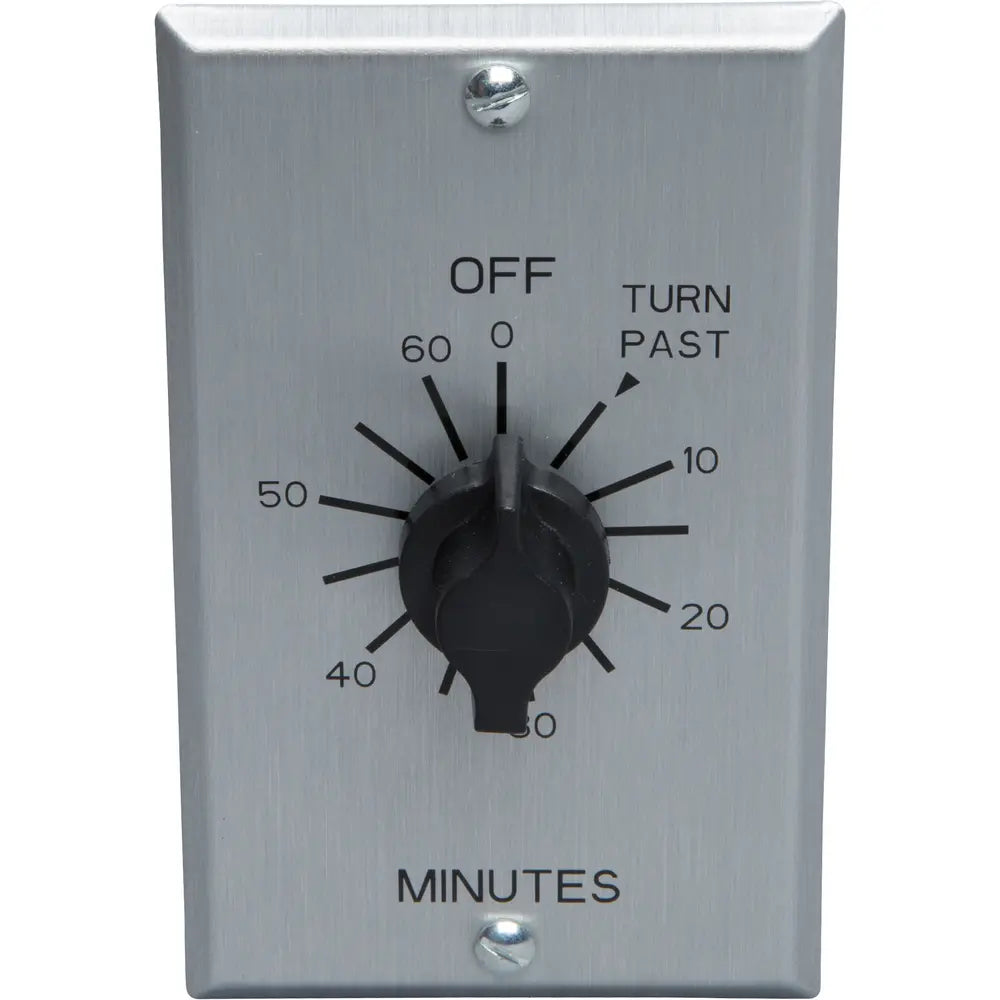

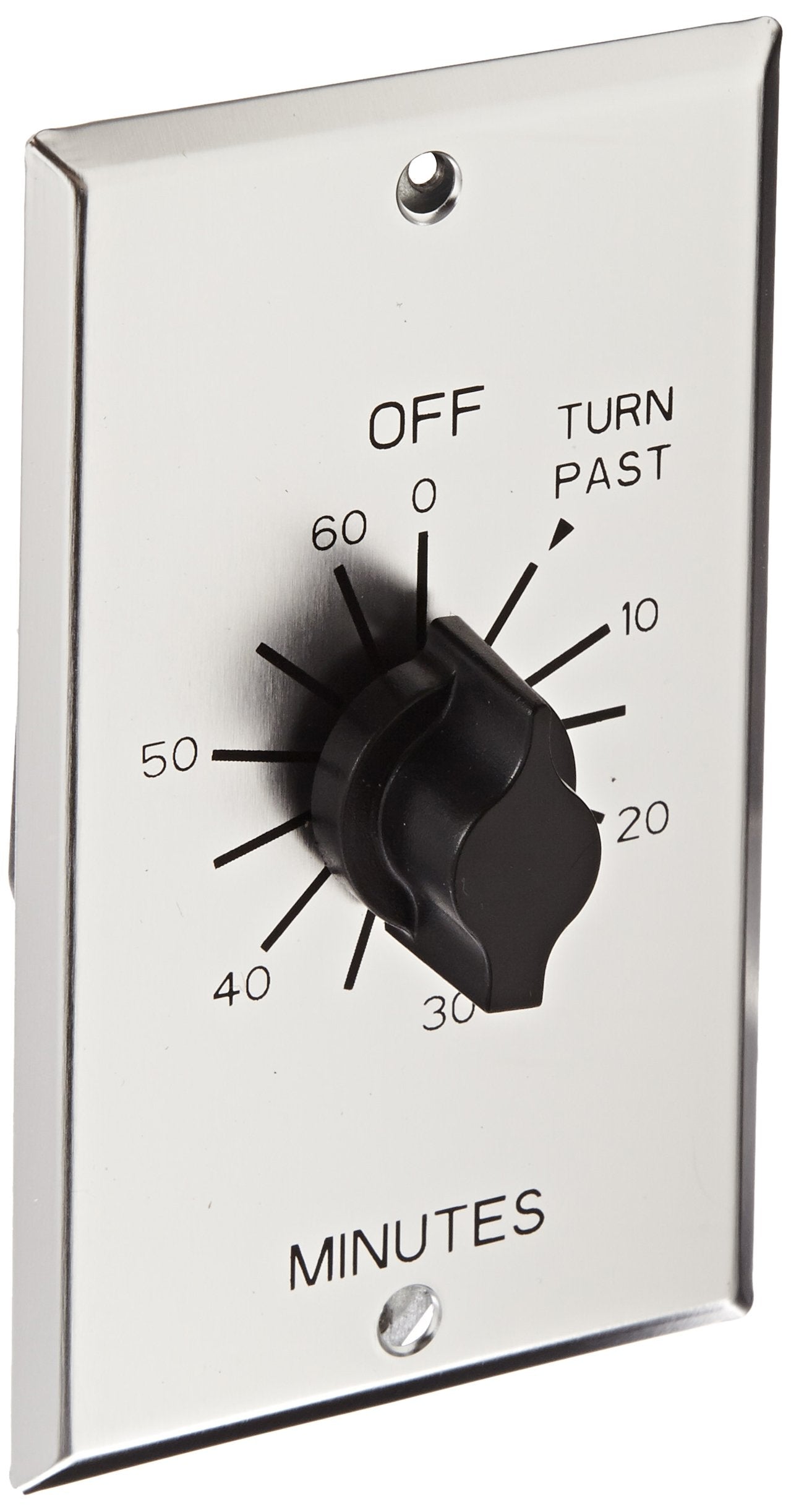

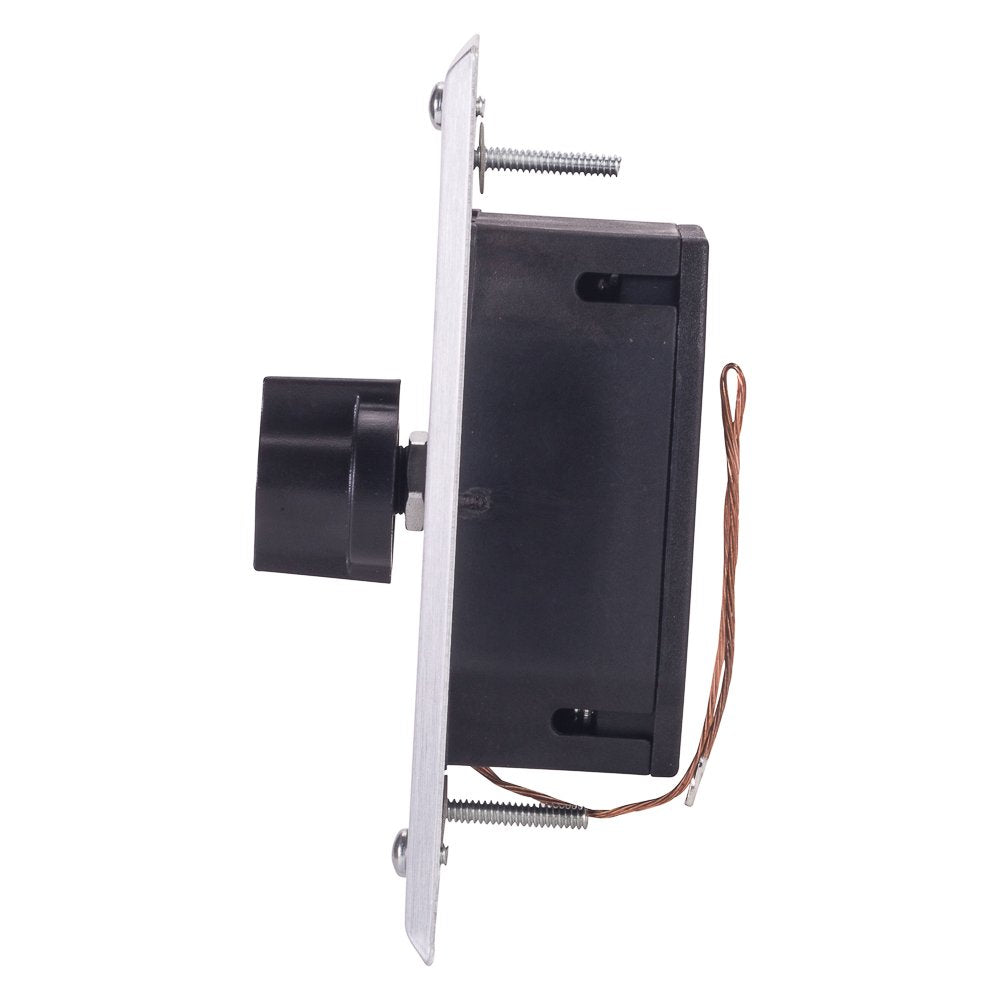

The NSI C560M is a TORK In-Wall Timer that provides a simple way to control automation for your home or office. The spring-wound twist mechanical knob provides reliable control in a variety of situations from a standard electrical box with in-wall mounting. Pack of 1 Unit.
Provides variable timing of twist knob for time ON setting, Time ON lengths from 15 min to 12 hr vary by model
No neutral required, great for retrofit use as single or in multi-gang box with no de-rating
Interval timer
Product Highlights
This in-wall twist timer is ideal for automatically shutting off appliances or lighting, saving you energy. Suitable for ventilating fans, HVAC, whirlpools, motors, and pumps.
Product Information
Standard Information
Brand: NSI
Manufacturer Part Number: C560M
Country of Origin: CN
Technical Specifications
Type
Mechanical In-Wall Countdown Timers
Phase
Single-Phase
Width
3 Inches
Height
5 Inches
Mounting
Surface
Standard
cULus
Connection
Screw terminal
Initiation
On/Off
Timing Range
0 to 60 Minutes
Number Of Poles
Single-Pole
Frequency Rating
50/60 Hertz
Contact Configuration
SPDT
Operating Temperature
32°F to 122°F
Environmental Conditions
Dry Location
Amperage Rating
20/10 A
Mounting Type
Wall
Operation Mode
60 min
Series
C Series
Temperature Rating
32 to 122 deg F
Voltage Rating
125/250/277 VAC
Horsepower
1 hp, 2 hp hp
Contact Form
SPDT
Time Setting
60 min
Switch Type
SPDT, SPST
Contact Current Rating
20 Ampere at 125 VAC 50/60 Hz (Resistive/Inductive), 10 Ampere at 250/277 VAC 50/60 Hz (Resistive/Inductive), 7 Ampere at 125 VAC 50/60 Hz (Tungsten)
Contact Power Rating
1 HP at 125 VAC, 2 HP at 250 VAC (Motor)
Application
Ventilating Fans, HVAC, Whirlpools, Self Storage, Motors and Pumps
Approval
UL (Canada and US)
Voltage Range
125-277VAC
Terminal Size
12AWG
Maximum Runtime
60 minutes
Maximum Load Capacity
Resistive And Inductive: 20 Amp At 125 Volt, 10 Amp At 250-277 Volt, Tungsten: 7 Amp At 125 Volt, Motor: 1 hp At 125 Volt, 2 hp At 250 Volt
