Product Description

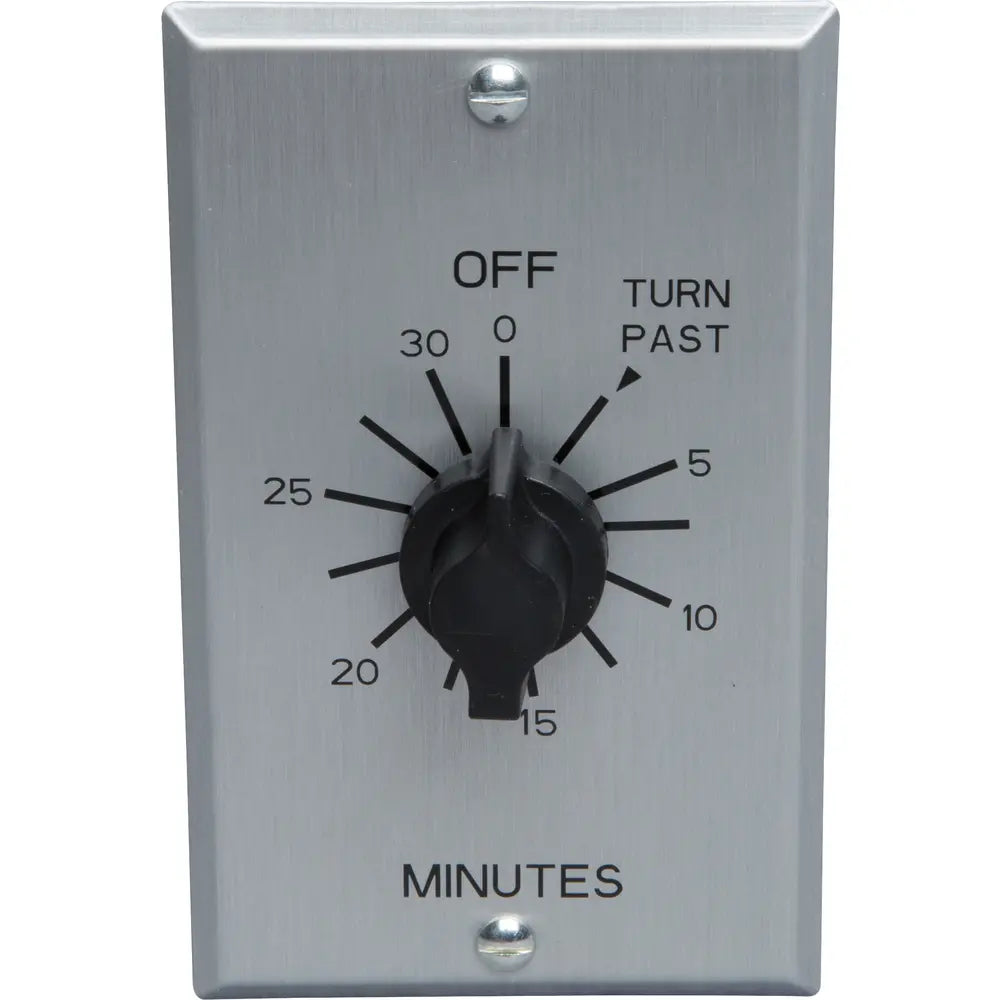

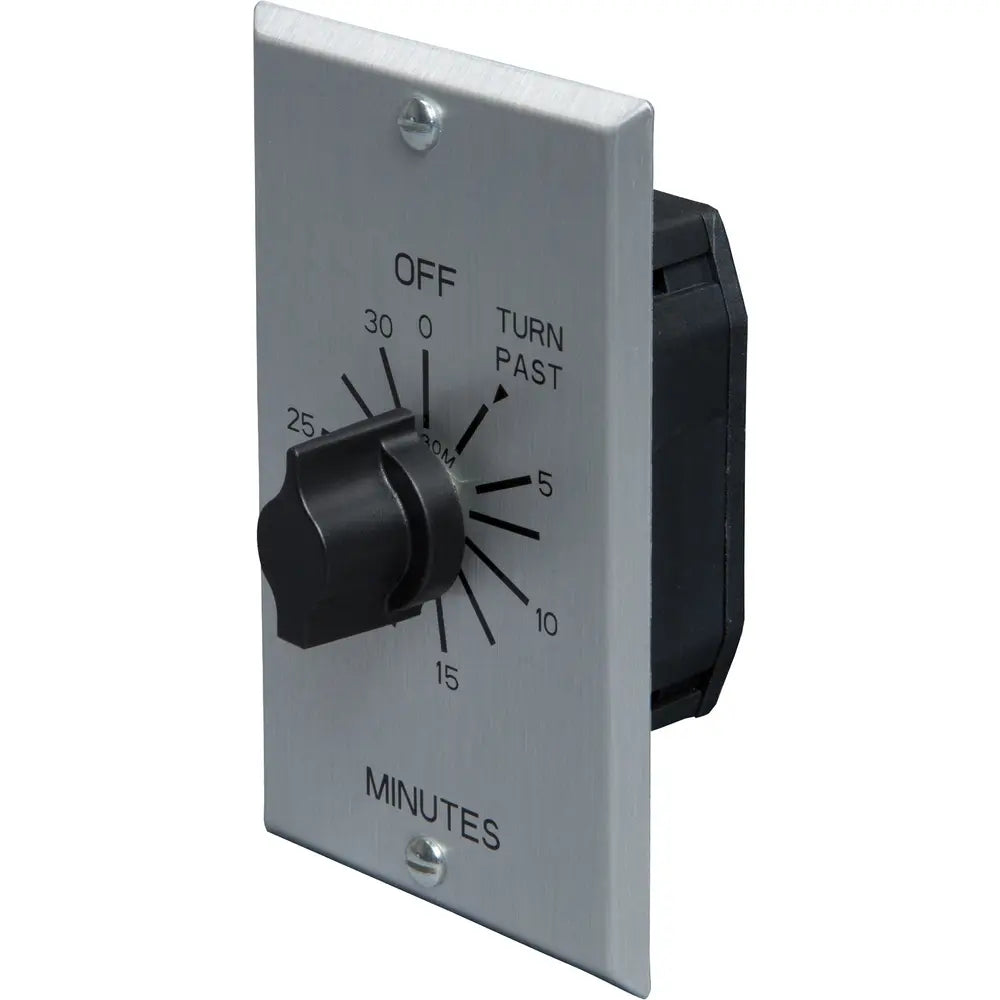

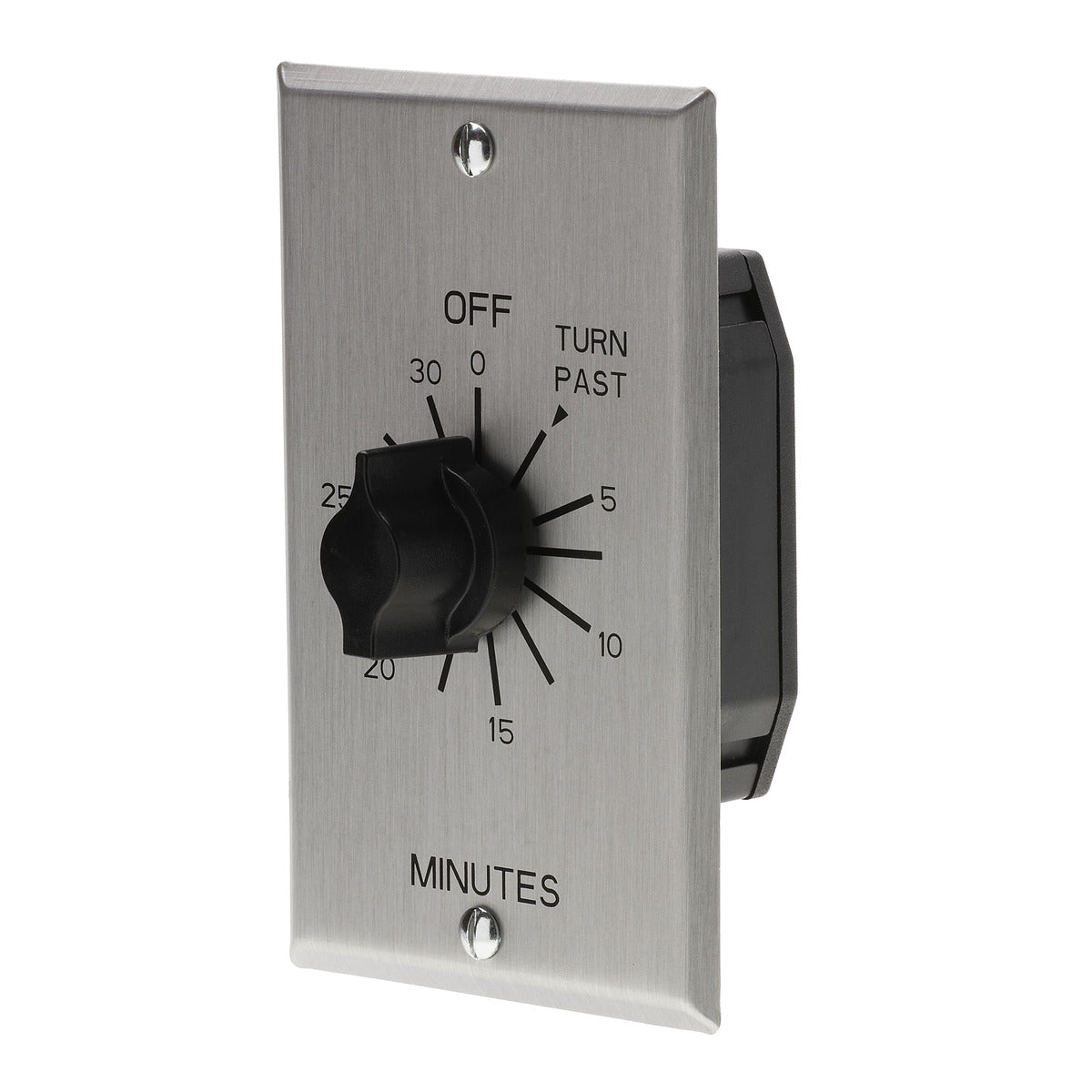

The NSI C530M is a TORK In-Wall Timer that provides a simple way to control automation for your home or office. The spring-wound twist mechanical knob provides reliable control in a variety of situations from a standard electrical box with in-wall mounting. It is designed to control indoor appliances, motors, and lights.
- Timing range of 0 to 30 minutes
- No neutral required, great for retrofit use as single or in multi-gang box with no de-rating
- Fits inside a standard electrical box for in-wall mounting
Product Highlights
The NSI C530M in-wall timer is ideal for automating ventilation fans, lighting, HVAC systems, motors, and pumps.
Product Information
Standard Information
-
Brand: NSI
-
Manufacturer Part Number: C530M
-
Country of Origin: CN
Technical Specifications
-
Type: Mechanical In-Wall Countdown Timers
-
Phase: Single-Phase
-
Width: 3 Inches
-
Height: 5 Inches
-
Mounting: Surface
-
Standard: cULus
-
Connection: Screw terminal
-
Initiation: On/Off
-
Timing Range: 0 to 30 Minutes
-
Number Of Poles: Single-Pole
-
Frequency Rating: 50/60 Hertz
-
Contact Configuration: SPDT
-
Operating Temperature: 32°F to 122°F
-
Environmental Conditions: Dry Location
-
Amperage Rating: 20/10 A
-
Series: C Series
-
Voltage Rating: 125/277V
-
Horsepower: 1 hp, 2 hp hp
-
Contact Form: SPDT
-
Time Cycle: 30 Min
-
Operation Type: Without Hold
-
Switch Type: SPDT, SPST
-
Contact Current Rating: 20 Ampere at 125 VAC 50/60 Hz (Resistive/Inductive), 10 Ampere at 250/277 VAC 50/60 Hz (Resistive/Inductive), 7 Ampere at 125 VAC 50/60 Hz (Tungsten)
-
Contact Power Rating: 1 HP at 125 VAC, 2 HP at 250 VAC (Motor)
-
Application: Ventilating Fans, HVAC, Whirlpools, Self Storage, Motors and Pumps
-
Approval: UL (Canada and US)
-
Action: SPDT
-
Contact Rating: Resistive:20A at 125V, 10A at 250V, 10A at 277V, Inductive:20A at 125V, 10A at 250V, 10A at 277V, Tungsten:7A at 125V, Motor:1 HP at 125V, 2 HP at 250V
-
Enclosure: Single Gang Wall Plate
-
Mounting Type: Wall
-
Operating Temperature Range: 32 to 122 Deg F
-
Standards: cULus Listed
-
Applications: For Use With Ventilating Fans, HVAC, Whirlpools, Self Storage, Motors, Pump Control
-
Termination: Wall Termination
-
Poles: 1
