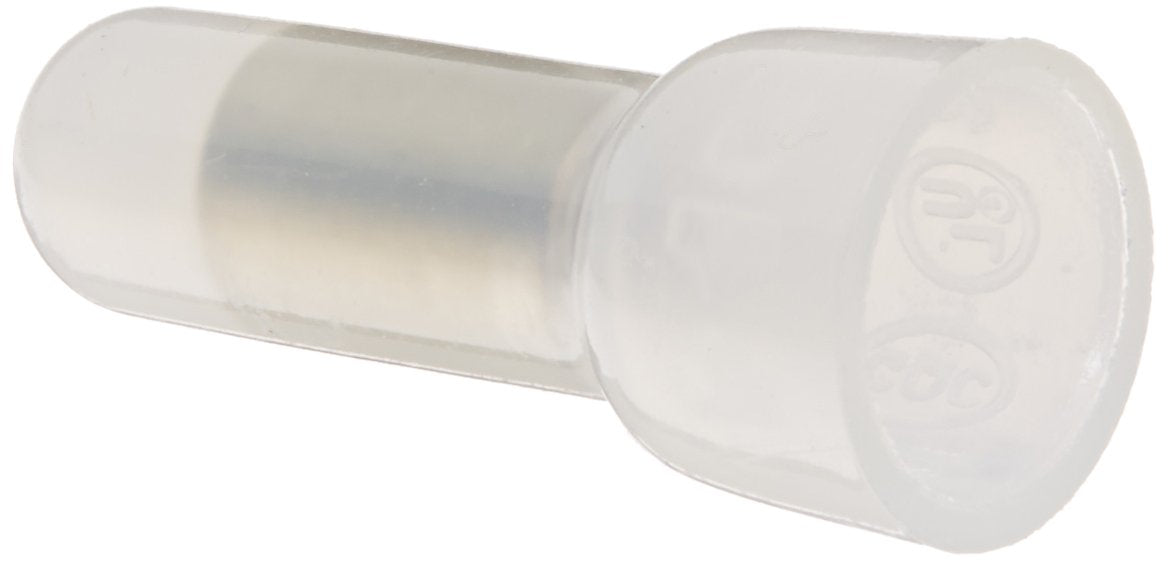

Nsi C22-N-S Easy-Twist Closed End Connector 22 to 18 AWG (25 Pack)

Product Description

The NSI C22-N-S Easy-Twist Closed End Connector is designed for creating secure connections between 22 to 18 AWG wires. Constructed from Nylon 6/6, this connector features excellent electrical and heat-resistant properties. It is UL and CSA approved and rated for up to 300V and a maximum temperature of 105 degrees Celsius.

• Suitable for 22 to 18 AWG copper wires
• Constructed from durable Nylon 6/6 material
• Features an internal crimp sleeve for a secure join

Product Highlights

This closed-end connector provides a safe and reliable solution for bonding wires in various applications, ensuring a stable connection.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: C22-N-S
• Country of Origin: China

Technical Specifications

• Series: C-N Series
• Temperature Rating: 105 deg C
• Voltage Rating: 300 V
• Conductor Size: 22 to 18 AWG
• Length: 0.709 in
• Opening Diameter: 0.102 in
• Material: Nylon 6/6
• Wire Type: Copper
• Minimum Wire Combination Size: (2) #22
• Maximum Wire Combination Size: (2) # 20, (1) #18
• Insulation Material: Nylon
• Approval: UL, CSA
• Width: 0.244"
• Product Type: ELECTRONIC_COMPONENT_TERMINAL
• Wire Range: 22 AWG – 18 AWG
