Nsi C16-N-S Easy Twist Closed End Connector 25 Pack

Product Description

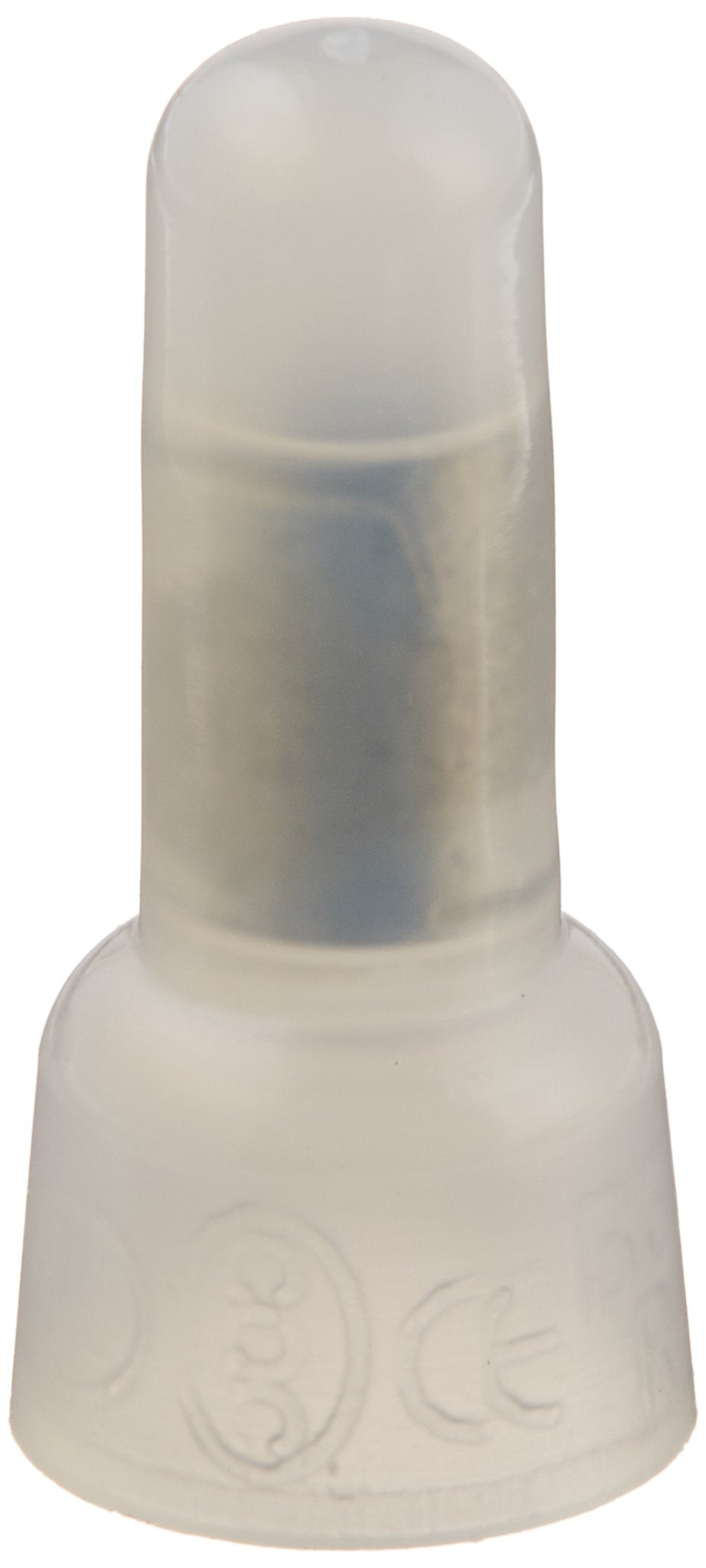

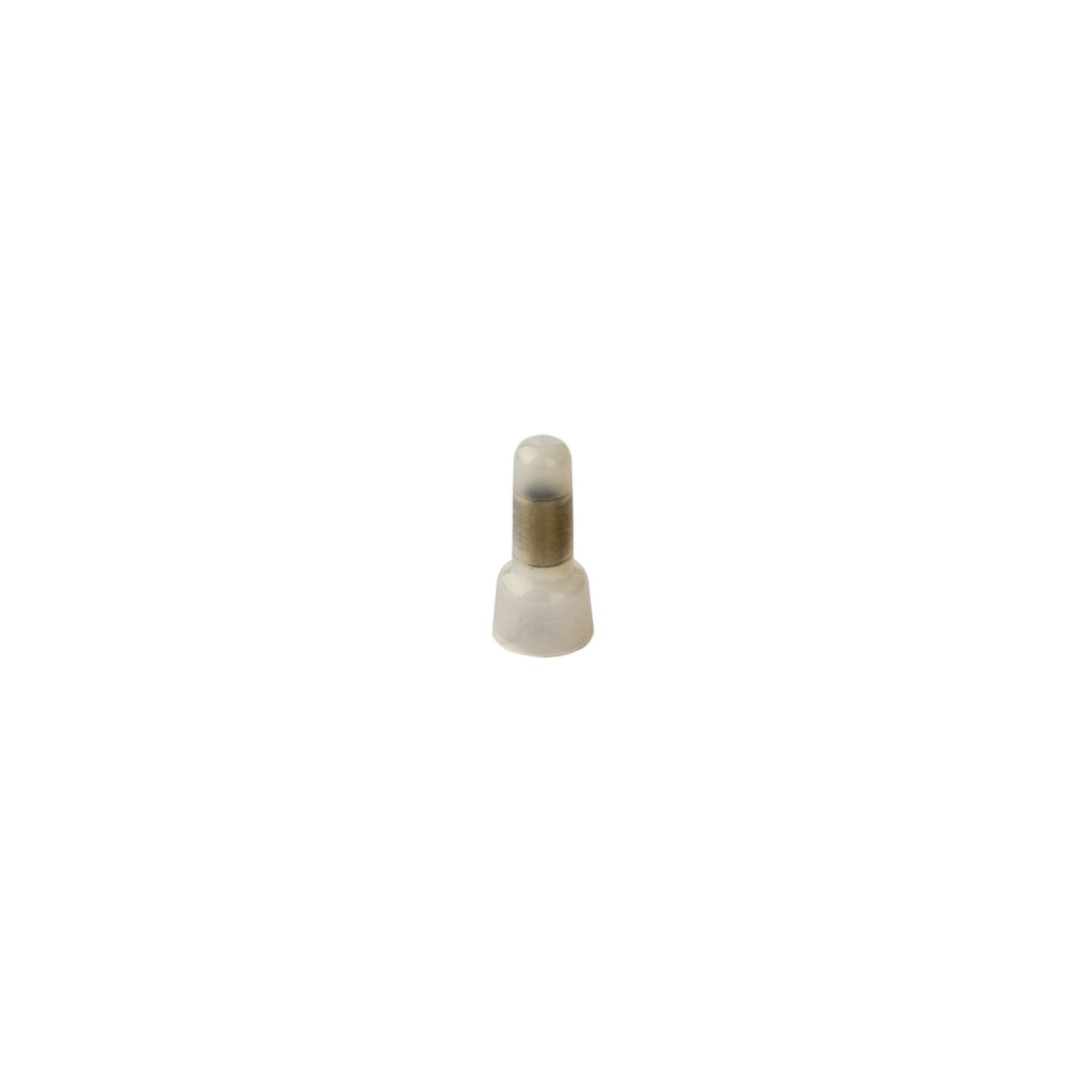

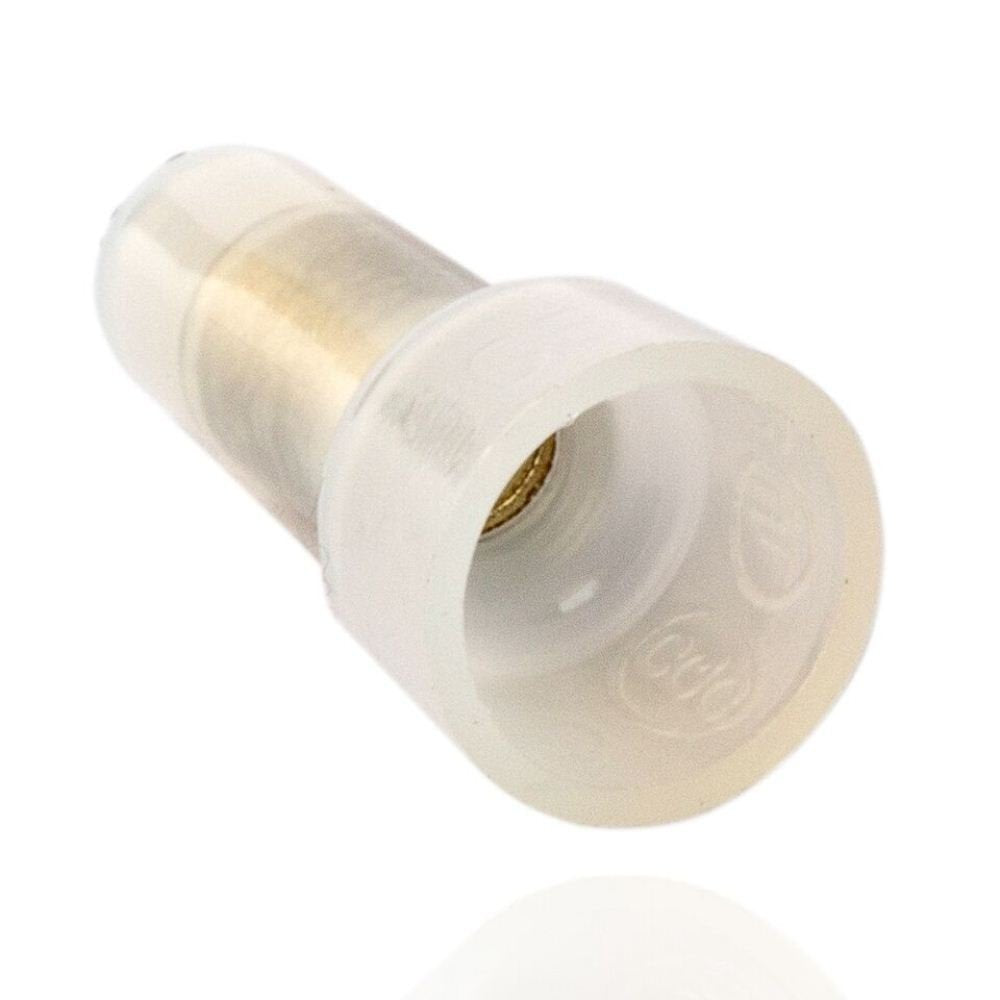

The NSI C16-N-S Easy Twist closed end connector is a nylon twist-on connector for 16-14 AWG wires, supplied in a pack of 25. These connectors are suitable for copper wires and feature a twist-on connection type. They are UL and CSA approved for insulated connections.

• Twist-On connection type
• Nylon composition
• UL and CSA Listed

Product Highlights

The NSI C16-N-S connectors provide a secure and insulated connection for a range of electrical applications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: C16-N-S
• Country of Origin: CHN

Technical Specifications

• Brand: NSi
• Composition: Nylon
• Connection Type: Twist-On
• CSA Listing: Yes
• CUL Listed: No
• EAN: 0662381068118
• Height: 0.276 in
• Length: 0.787 in
• Package Quantity: 25
• Prop 65: Yes
• Type: Closed End Connectors
• UL Listed: Yes
• UPC: 662381068118
• Width: 0.787 in
• Wire Gauge: 14 AWG
• Series: C-N Series
• Temperature Rating: 105 deg C
• Voltage Rating: 300 V
• Conductor Size: 22 to 14 AWG
• Opening Diameter: 0.118 in
• Material: Nylon 6/6
• Minimum Wire Combination Size: (2) #22
• Maximum Wire Combination Size: (1) #18, (1) #14
• Insulation Material: Nylon
• Wire Type: Copper
• Wire Size: 16 to 14 AWG
• Ul Standard: UL 467
• Wire Range: 22 AWG – 14 AWG
• Approval: UL, CSA
