Nsi C-500 tinned copper splice - long barrel 500 MCM

Product Description

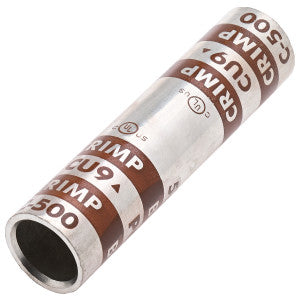

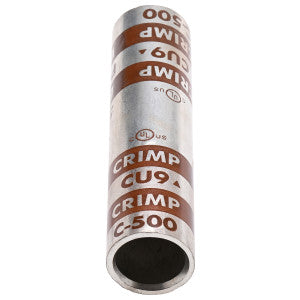

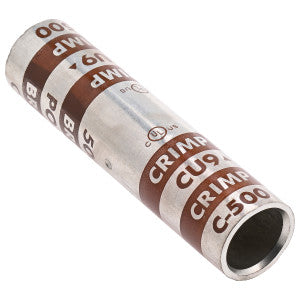

The NSI C-500 is a tinned copper splice with a long barrel, designed for 500 MCM conductors. It is produced from high conductivity copper tubing and tin-plated for corrosion resistance. The splice is marked with a die index and color-coded for easy reference. It is UL listed for up to 35KV when properly installed.

• Produced from high conductivity copper tubing
• Serrations indicate proper crimp locations
• Tin-plated to provide corrosion resistance
• Marked with die index and color coded

Product Highlights

High-conductivity copper tubing, tin-plated, and color-coded for easy identification.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: C-500
• Country of Origin: United States

Technical Specifications

• Brand: NSI Industries
• MPN: C-500
• UPC: 66238103763
• Manufacturer: NSI Industries
• Type: Long Barrel - CU Splice
• Applications: Terminate, Splice, Tap Power Connectors
• Conductor Size: 500 kcmil
• Material: Copper
• Max Temperature: 194 degrees F
• Number of Conductors: 2
• Number of Poles: 1 Pole
• Standard: UL486
• Temperature Rating: 90 degrees C
• Voltage: 600 Volt
• Sub Brand: Copper Compression
• 12-Digit UPC: 662381003768
• Color: Brown
• Environmental Conditions: 90 degrees C
• Finish: Tin Plated
• Certifications and Standards: cULus, UL Listed, UL 486A
• Series: C Series
• Specifications: 2-Conductor, 1-Pole
• Application: Terminate, Splice and Tap Power Connector Applications
• Conductor Type: Stranded
• Catalog ID: NSIC-500
• UNSPSC: 39121400
• Approval: UL (Canada and US)
• Color Code: Brown
• Barrel Type: Long
• Body Material: Tin Plated Copper
• Inner Diameter: 0.835 Inch
• Outer Diameter: 1.063 Inch
