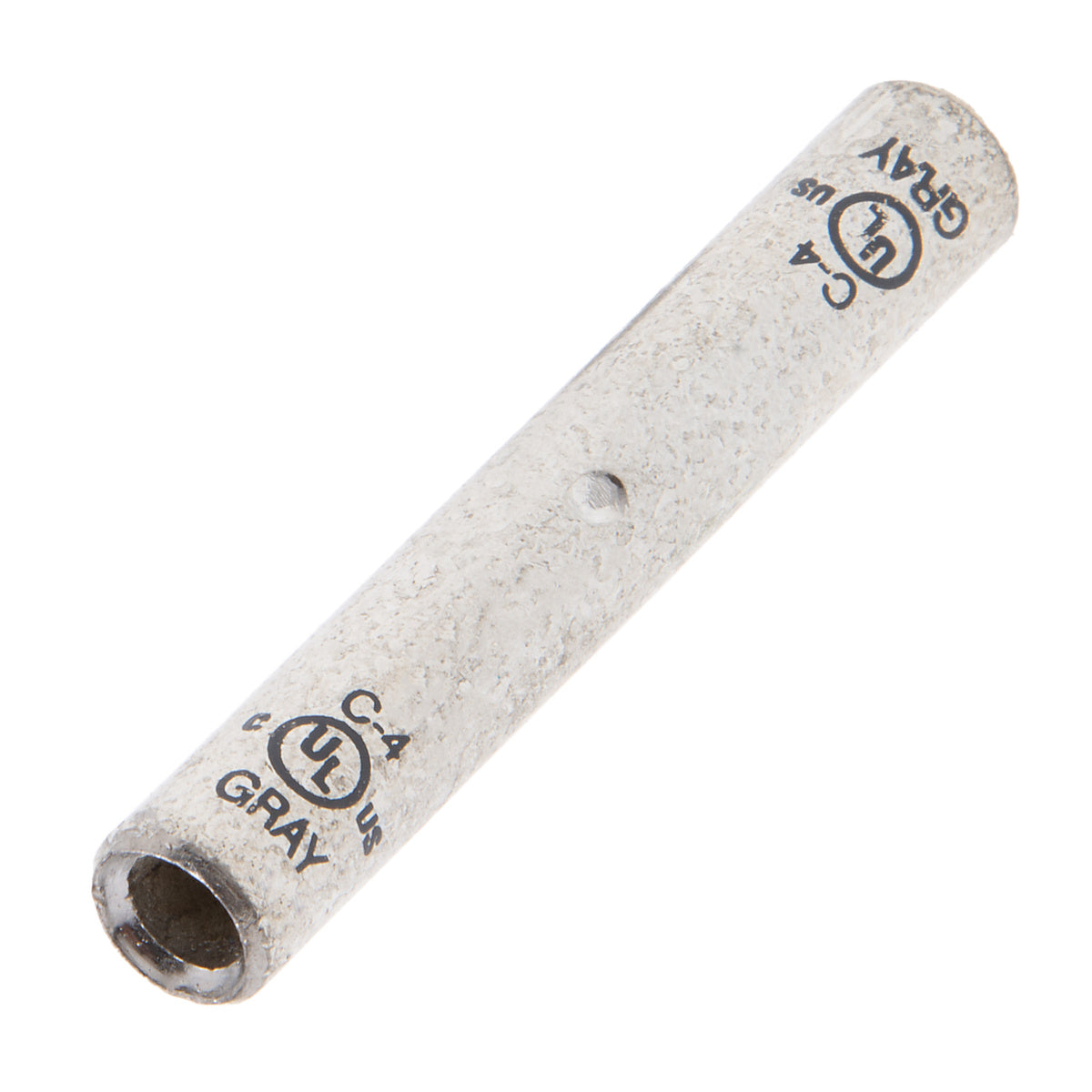

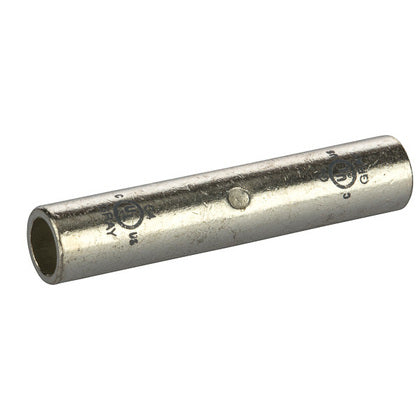

Nsi C-4 Polaris Tinned Copper Splice- Long Barrel, 4 Awg

Product Description

The NSI C-4 splicing conductors are the professional’s choice for making quick in-line connections and repairing damaged wiring. Use Polaris splice connectors for bonding solid or fine stranded UL-listed wires in harsh environments. They are produced from high conductivity copper tubing and corrosion resistant tin-plated finish.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Serrations indicate proper crimp locations
• Die cast color-coded identification

Product Highlights

Pre-filled with oxide inhibitor and capped with color coded cap. Suitable for use at voltages up to 35kV provided connector is properly installed to cable manufacturer voltage stress relief instructions, 5KV is the maximum voltage in all bare splices.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: C-4
• Country of Origin: United States

Technical Specifications

• Voltage Rating: 600V
• Material: Copper
• Finish: Tin Plated
• Pack Qty: 100
• UNSPSC: 39121449
• Ul Standard: UL 486A, UL 467
• Wire Cable Class: Class B, Class C
• Conductor Cu Size Range: 250 MCM – 6 AWG
• Conductor Al Size Range: 250 MCM – 6 AWG
• Conductor Type: Copper
• Wire Range: 4 AWG
• Assortment: Copper Compression Splices
• Expanded Wire Range: 4 AWG – 6 AWG
• Die Color Code: Gray
• Barrel Length: 1.75
• Length: 1-3/4 in
• Single pole: 2-Conductor
• Temperature Rating: 90 deg C
• Type: Dual Rated
• Application: For Splice, Terminate, Tap Power Connectors
• Standard & Approvals: UL486 Listed
• Conductor Size: 4 AWG
• Barrel Size: 0.25 in ID x 0.34 in OD
• Barrel Type: Long
• Color: Gray
• Manufacturer: NSi
• Catalog #: C-4
• NorthEast Part #: 227367
• Brand: NSI Industries
• MPN: C-4/0
