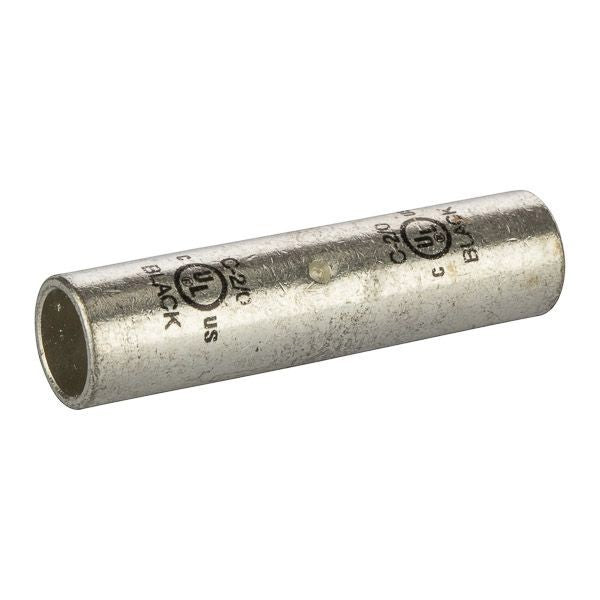

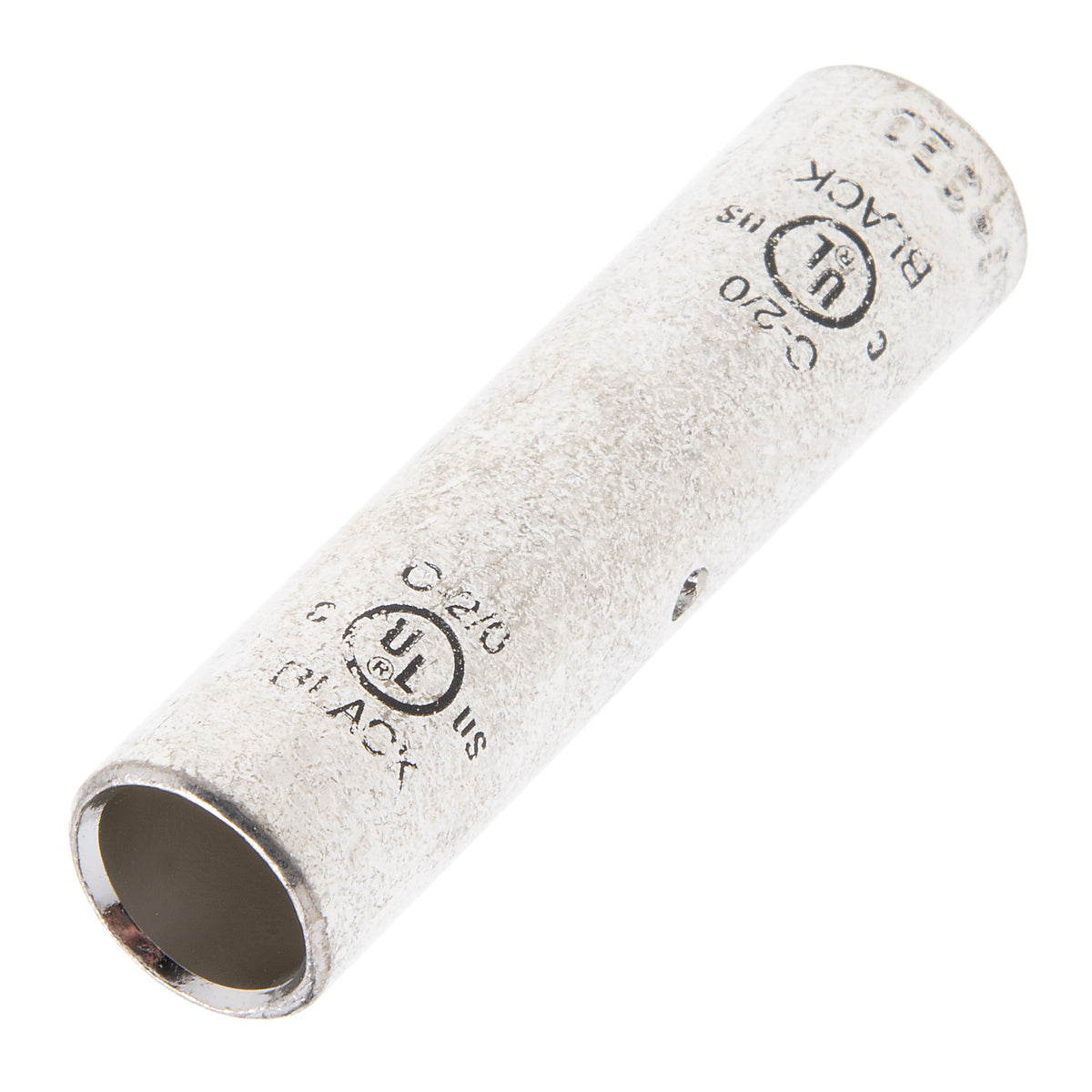

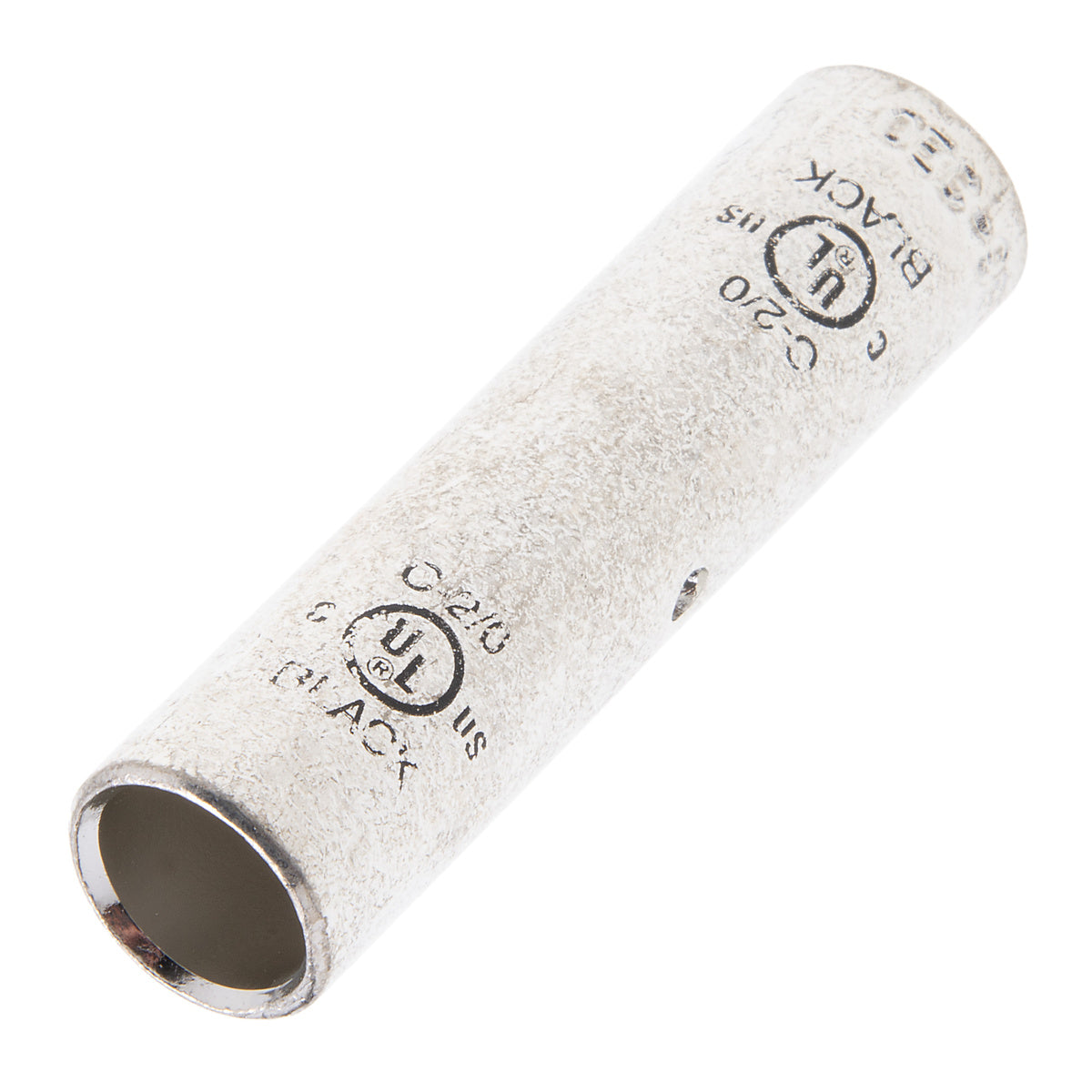

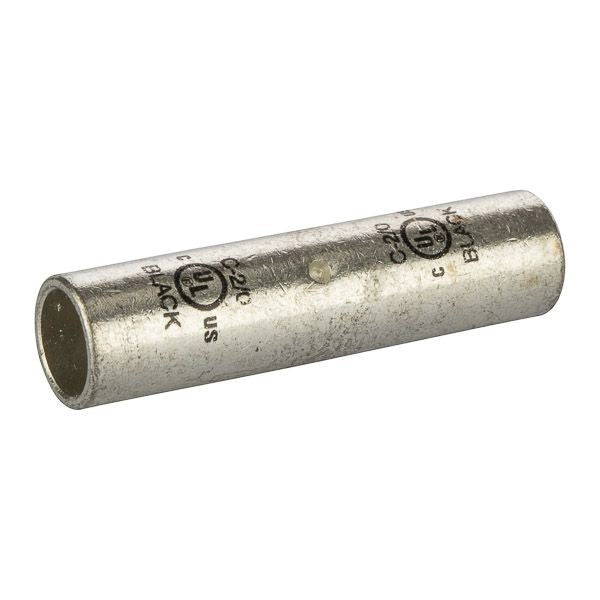

Nsi C-2/0 Polaris Tinned Copper Splice- Long Barrel, 2/0 Awg

Product Description

The NSI C-2/0 Polaris tinned copper splice is the professional choice for making quick in-line connections and repairing damaged wiring. Use Polaris splice connectors for bonding solid or fine stranded UL-listed wires in harsh environments. Suitable for use at voltages up to 35kV.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Serrations indicate proper crimp locations
• Die cast color-coded identification

Product Highlights

The NSI C-2/0 is pre-filled with oxide inhibitor and capped with color coded cap. It is suitable for use at voltages up to 35kV.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: C-2/0

Technical Specifications

• Voltage Rating: 600V
• Material: Copper
• Finish: Tin Plated
• Pack Qty: 25
• GTIN: 6.62381E+11
• UPC: 662381037565
• EAN: 6.62381E+11
• UNSPSC: 39121449
• Ul Standard: UL 486A, UL 467
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Wire Range: 2/0 AWG
• Assortment: Copper Compression Splices
• Expanded Wire Range: 2/0 AWG – 4 AWG
• Die Color Code: Black
• Barrel Length: 2.25
• Length: 2-1/4 in
• Minimum Order Qty: 1
• Order Interval: 1
• Series: C Series
• Specifications: 2-Conductor, 1-Pole
• Temperature Rating: 90 deg C
• Application: Terminate, Splice and Tap Power Connector Applications
• Standard & Approvals: cULus Listed, UL 486A/467, NEC 310.15, KM Approved
• Dimensions: 0.44 in ID x 0.56 in OD
• Catalog ID: NSIC-2/0
• Type: Long Barrel
• Conductor Size: 2/0 AWG
