Nsi C-1/0 Series C Copper Compression Long Barrel Tinned Splice 1/0 Awg

Product Description

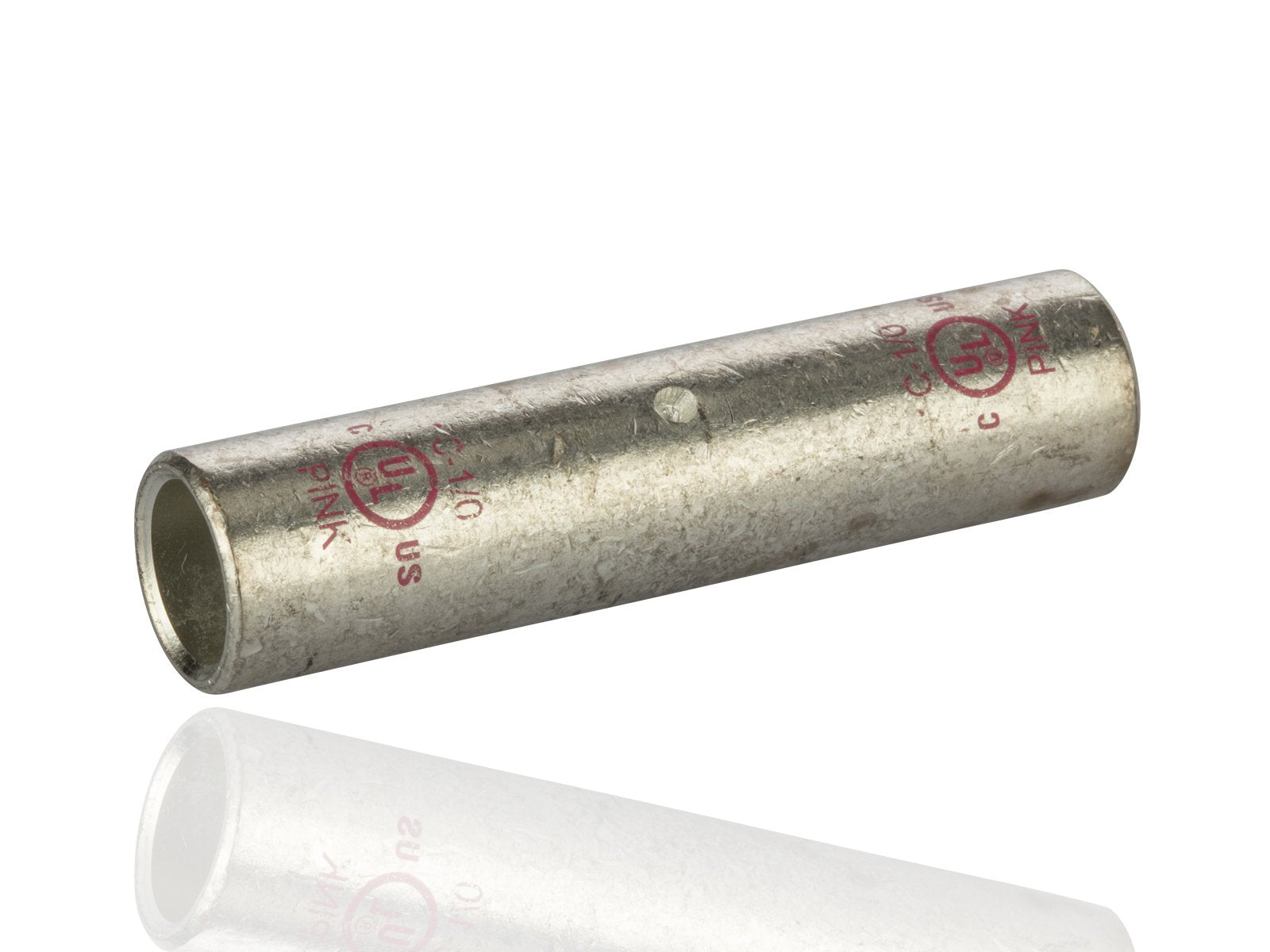

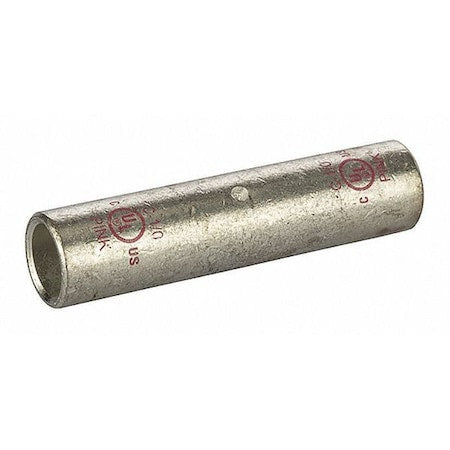

The NSI INDUSTRIES C-1/0 is a copper compression connector produced from high conductivity copper tubing. Serrations indicate proper crimp locations. It is tin plated to provide corrosion resistance and marked with die index and color code. Suitable for use at voltages up to 35 KV provided connector is properly taped. 5 KV is the maximum voltage in all bare splices.

• Produced from high conductivity copper tubing
• Serrations indicate proper crimp locations
• Tin plated to provide corrosion resistance

Product Highlights

The NSI C-1/0 copper compression connector is ideal for making quick in-line connections and repairing damaged wiring. Use for bonding solid or fine stranded UL-listed wires in harsh environments.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: C-1/0
• Country of Origin: India

Technical Specifications

• Brand: NSI
• Manufacturer: NSi Industries
• Model / MPN: C-1/0
• Material: Copper
• Finish: Tin Plated
• Pack Qty: 50
• UPC: 662381037558
• Ul Standard: UL 486A, UL 467
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded
• Wire Range: 1/0 AWG
• Expanded Wire Range: 1/0 AWG – 6 AWG
• Die Color Code: Pink
• Barrel Length: 2.2
• Temperature Rating: 90 deg C
• Voltage Rating: 600V
• Length: 2.2 in
• Series: C Series
