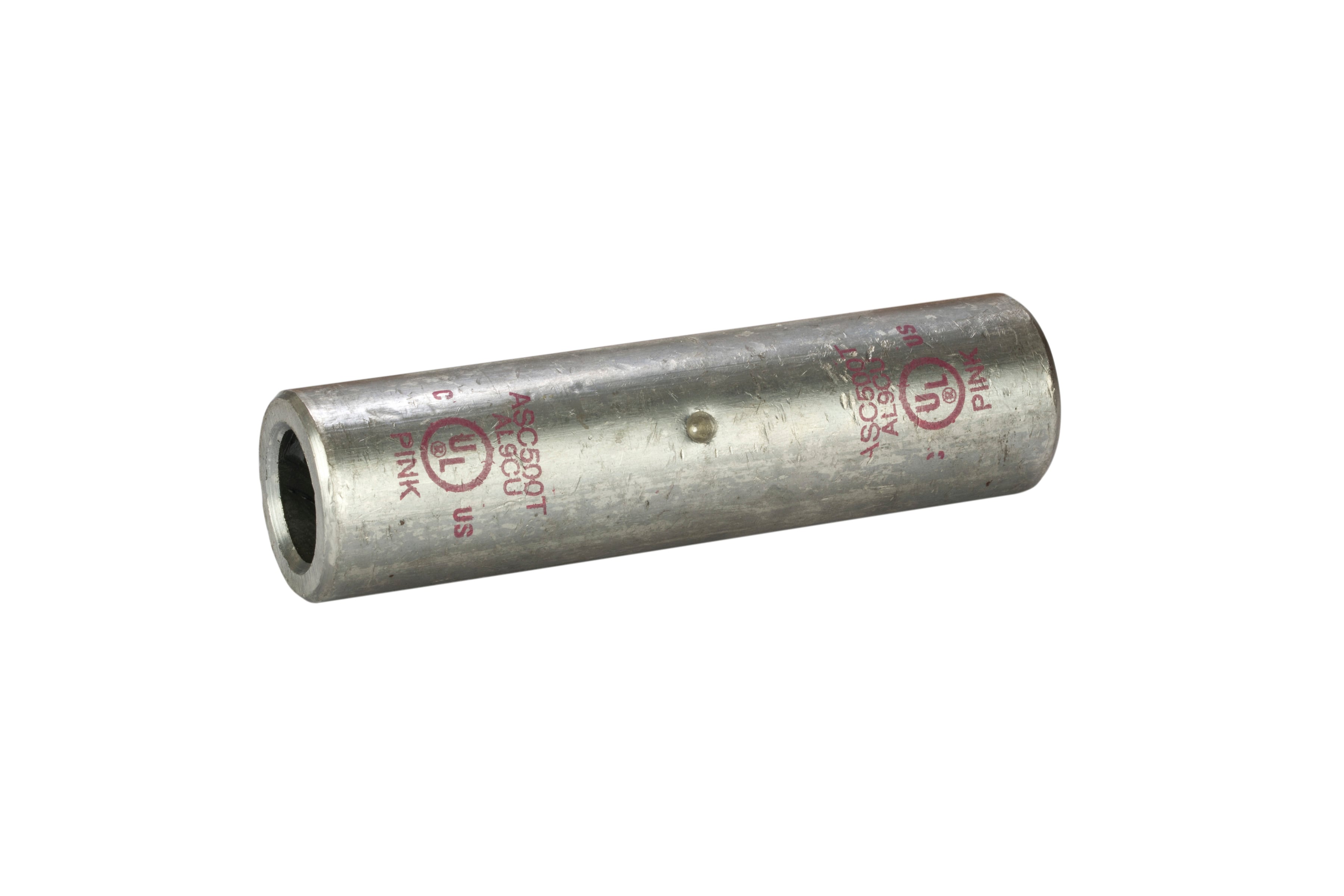

Nsi ASC500T 500 MCM Alum Compression Splice(Al/Cu)

Product Description

The NSI ASC500T is a professional choice for making quick in-line connections and repairing damaged wiring. These POLARIS splice connectors are used for bonding solid or fine stranded UL-listed wires in harsh environments. It is produced from high conductivity aluminum tubing with a corrosive resistant tin-plated finish.

• High conductivity aluminum tubing and corrosive resistant tin-plated finish
• Center stop assures proper cable installation
• Die cast color-coded identification

Product Highlights

The NSI ASC500T aluminum compression splice is flex rated for use with K, H, G, I, M and DLO cable.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: ASC500T
• Country of Origin: IN

Technical Specifications

• Voltage Rating: 600V
• Material: Aluminum
• Finish: Tin Plated
• Pack Qty: 6
• GTIN: 662381032126
• UPC: 662381032126
• EAN: 6.62381E+11
• UNSPSC: 39121449
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Aluminum, Copper
• Wire Range: 500 MCM
• Assortment: Aluminum Compression Splices
• Expanded Wire Range: 500 MCM – 250 MCM
• Die Color Code: Pink
• Barrel Length: 5
• MANUFACTURER: NSI Industries
• TEMPERATURE RATING: 90C, AL9CU
• UL File #: E155027
• PRODUCT HEIGHT (IN): 1.32
• PRODUCT LENGTH (IN): 5
• PRODUCT WIDTH (IN): 1.32
• APPLICATION: Splice
• PRODUCT SERIES: ASC-T
• PRODUCT GROUP: Power Connectors and Grounding
• PRODUCT CATEGORY: Compression Connectors
• PRODUCT LINE: Compression Splices
• TYPE: Dual Rated Standard Barrel
• CONDUCTOR RATING: AL9CU
• BARREL ID (in): 0.84
• BARREL OUTSIDE DIAMETER (IN): 1.32
• MAX TEMPERATURE (C): 90
• MAX TEMPERATURE (F): 194
• MIN INSTALLATION TEMPERATURE (C): 90
• MIN INSTALLATION TEMPERATURE (F): 194
• Conductor Size: 500 kcmil
• Dimensions: 0.84 in ID x 1.32 in OD
• Color: Pink
• Length: 5 in
• Series: ASC-T Series
• Brand: NSI
• MPN: ASC500T
• Country of Origin: United States
• Condition: New
