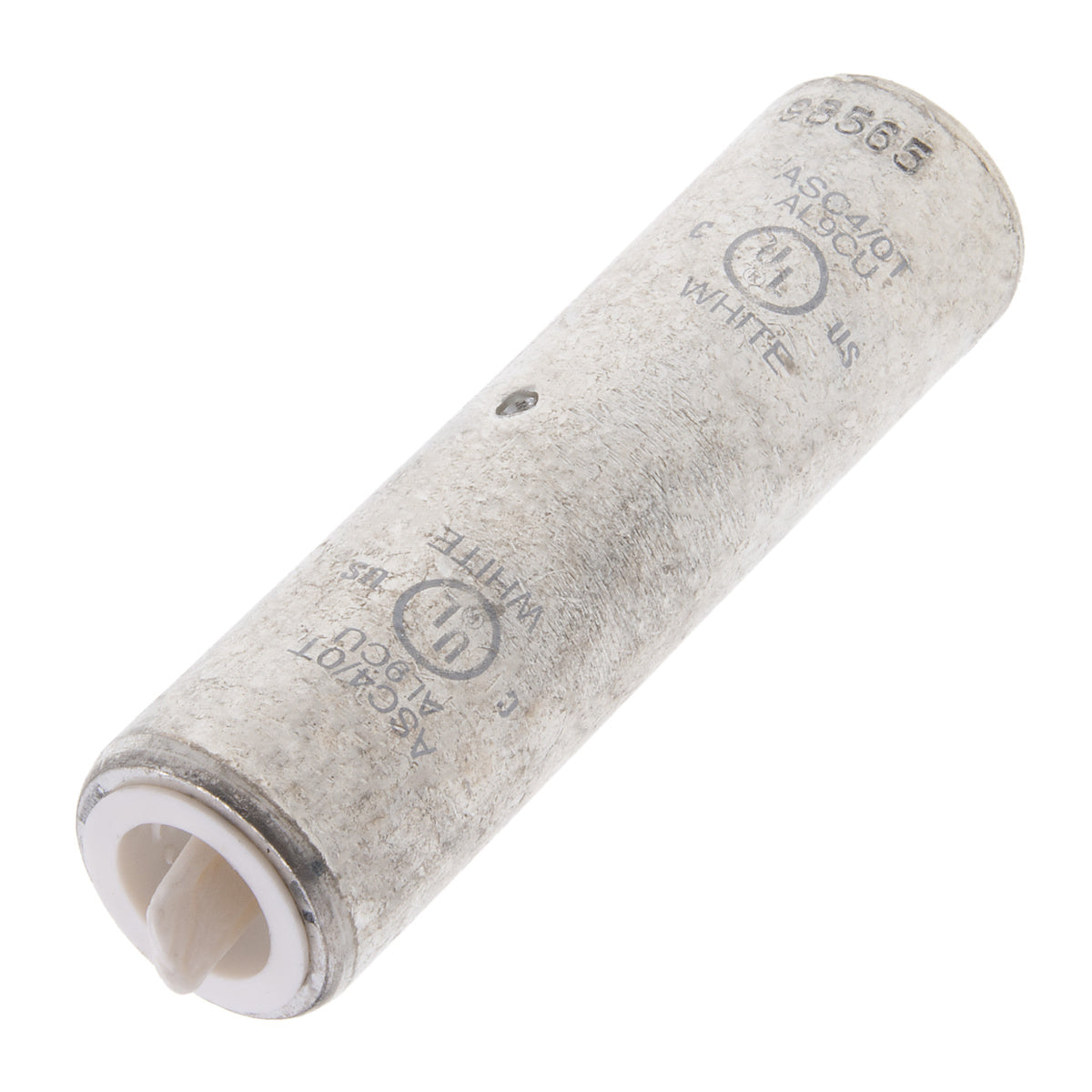

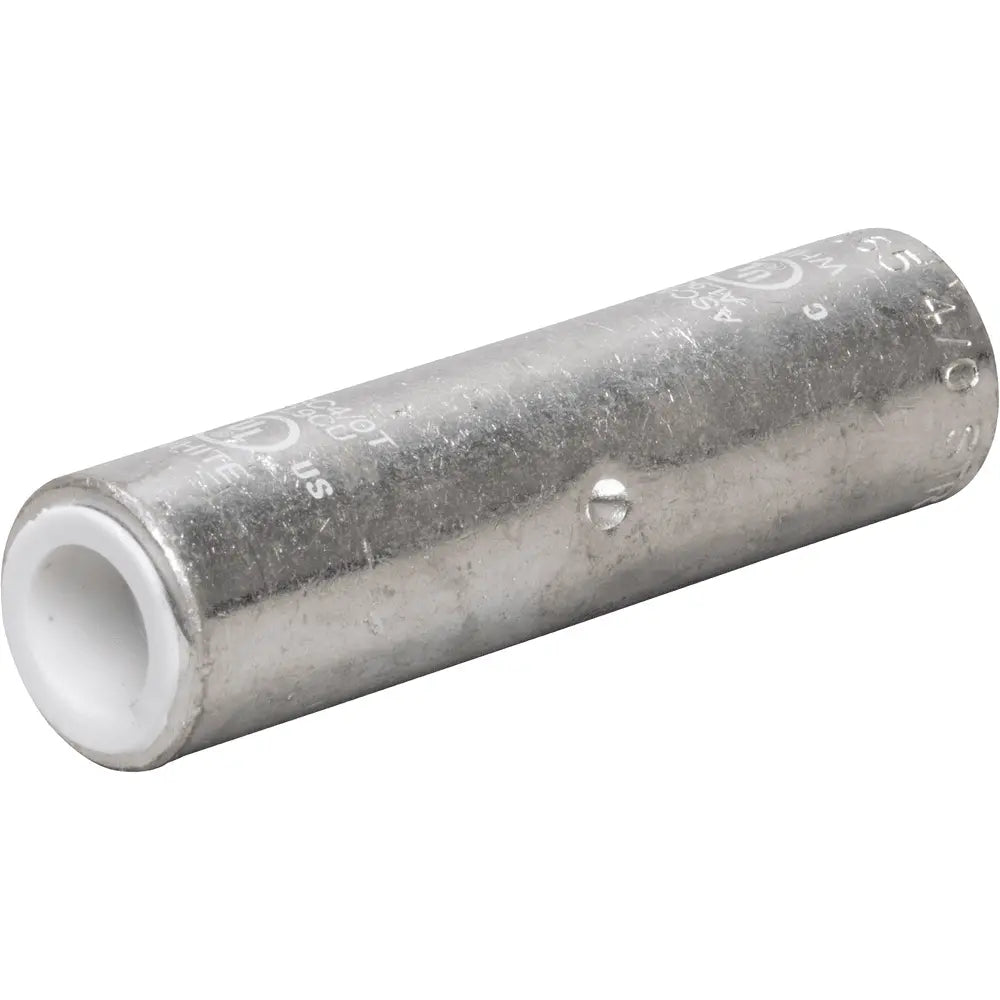

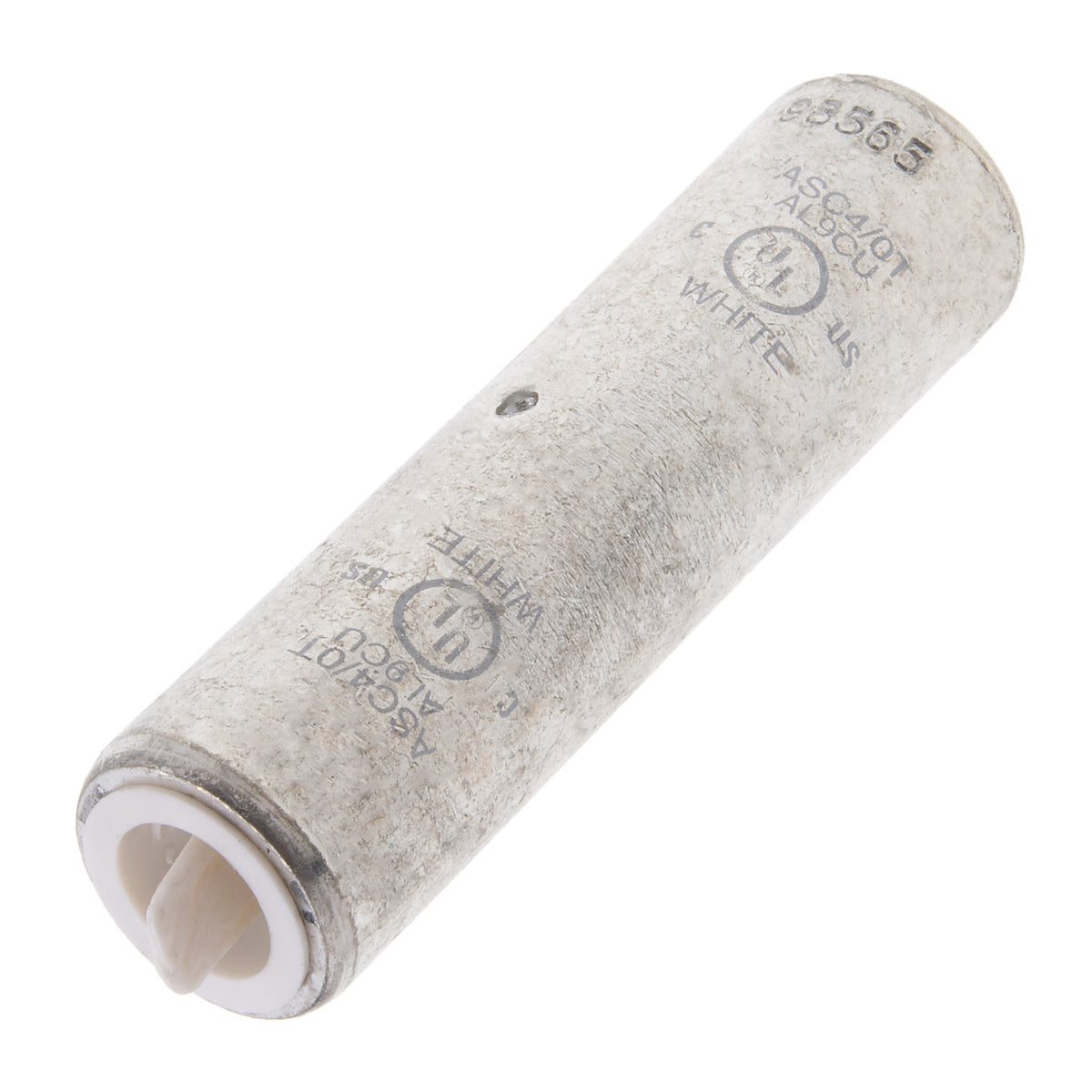

Nsi ASC4/0T Aluminum/Copper Compression Splice 4/0

Product Description

The NSI ASC4/0T aluminum/copper compression splice is produced from high conductivity aluminum tubing. It features a center stop to assure proper cable installation and is electro-tin plated for corrosion resistance. It is color coded and marked with die index information and pre-filled with oxide inhibitor and capped with color coded cap.

• Produced from high conductivity aluminum tubing
• Center stop assures proper cable installation
• Electro-tin plated for corrosion resistance

Product Highlights

The ASC4/0T compression splice is ideal for making quick in-line connections and repairing damaged wiring.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: ASC4/0T
• Country of Origin: IN

Technical Specifications

• Type: Butt Connectors
• Finish: Tin Plated
• Length: 3.13 Inches
• Diameter: 0.839 Inches
• Material: Aluminum
• Standard: cULus, UL486
• Insulated: No
• Color Code: White
• Connection: Compression
• Voltage Rating: 600 VAC
• Conductor Range: 4/0
• Temperature Rating: 90
• Number Of Conductors: 2
• Environmental Conditions: Dry Location
• Connection Type: Compression
• Conductor Type: Aluminum, Copper
• Wire Range: 4/0 AWG
• Application: Terminate, Splice, Tap Power Connectors
• Rated Voltage: 600 V
• Lug Wire Size: 4/0 AWG
• Color Family: White
• No. of Poles: 1
• Connector Style: Compression Splice
• MPN: ASC4/0T
• Approval: UL 486A/B, UL (Canada and US)
• Conductor Size: 4/0 AWG Stranded
• Body Material: Tin Plated Aluminum
• Inner Diameter: 0.55 Inch
• Outer Diameter: 0.85 Inch
• Barrel Inside Diameter: 0.55
• Barrel Outside Diameter: 0.84
• Die Color Coded: White
