Nsi ASC350T 350 mcm Aluminum Compression Splice

Product Description

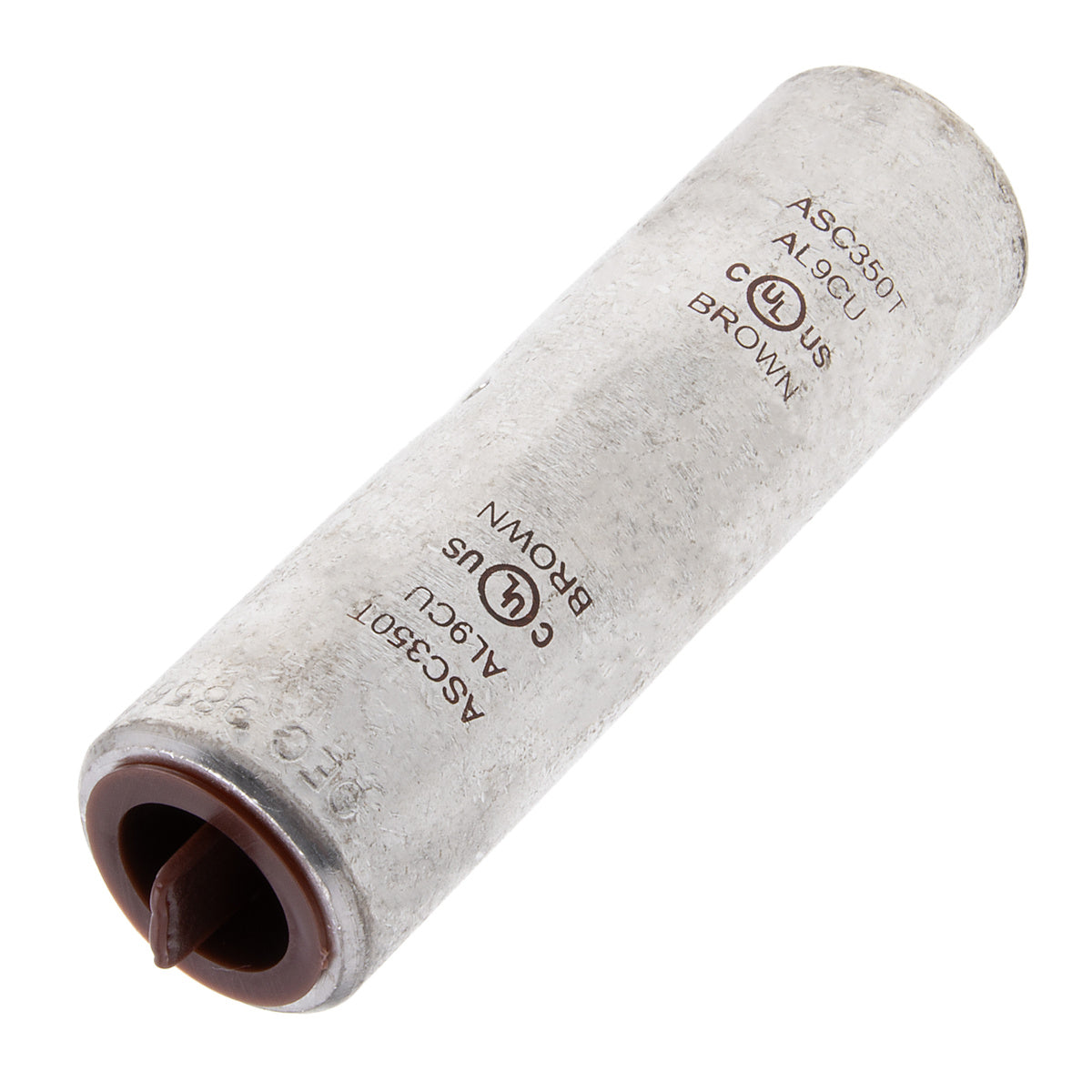

The NSI ASC350T is a 350 MCM aluminum compression splice designed for making quick in-line connections and repairing damaged wiring. It is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance.

• High conductivity aluminum tubing and corrosive resistant tin-plated finish
• Center stop assures proper cable installation
• Die cast color-coded identification

Product Highlights

This aluminum compression splice is flex rated for use with K, H, G, I, M and DLO cable and is pre-filled with oxide inhibitor and capped with color coded cap.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: ASC350T
• Country of Origin: India

Technical Specifications

• Voltage Rating: 600V
• Material: Aluminum
• Finish: Tin Plated
• Pack Qty: 6
• UNSPSC: 39121449
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Aluminum, Copper
• Wire Range: 350 MCM
• Assortment: Aluminum Compression Splices
• Expanded Wire Range: 350 MCM ">– 3/0 AWG
• Die Color Code: Brown
• Barrel Length: 3.88
• Color: Brown
• Series: ASC-T Series
• Temperature Rating: 90 deg C
• Type: Dual Rated Standard Barrel
• Conductor Size: 350 kcmil
• Length: 3.87 in
• Applications: Terminate, Splice, Tap Power Connectors
• Max Temperature: 194 degrees F
• Number of Conductors: 2
• Number of Poles: 1 Pole
• Size: L=3.87 - OD=1.12 - ID=.720
• Standard: UL486
• Voltage: 600 Volt
• Brand: NSI Industries
• Sub Brand: Aluminum Compression
• 12-Digit UPC: 662381032102
• Environmental Conditions: 90 degrees C
• MDM Pkg GTiN: 00662381032102
• Product UPC: 66238103210
• Weight: 0.225 lb
• Height: 1.12 Inch
• Width: 1.12 in
• Certifications and Standards: cULus, UL Listed, UL 486A-486B
• Dimensions: 0.72 in ID x 1.12 in OD
