Nsi ASC3/0T 3/0 Awg Alum Compression Splice(Al/Cu)

Product Description

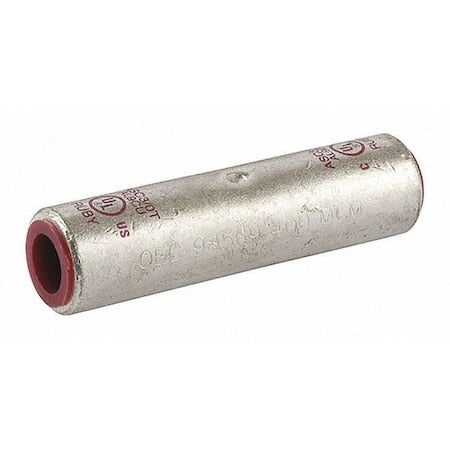

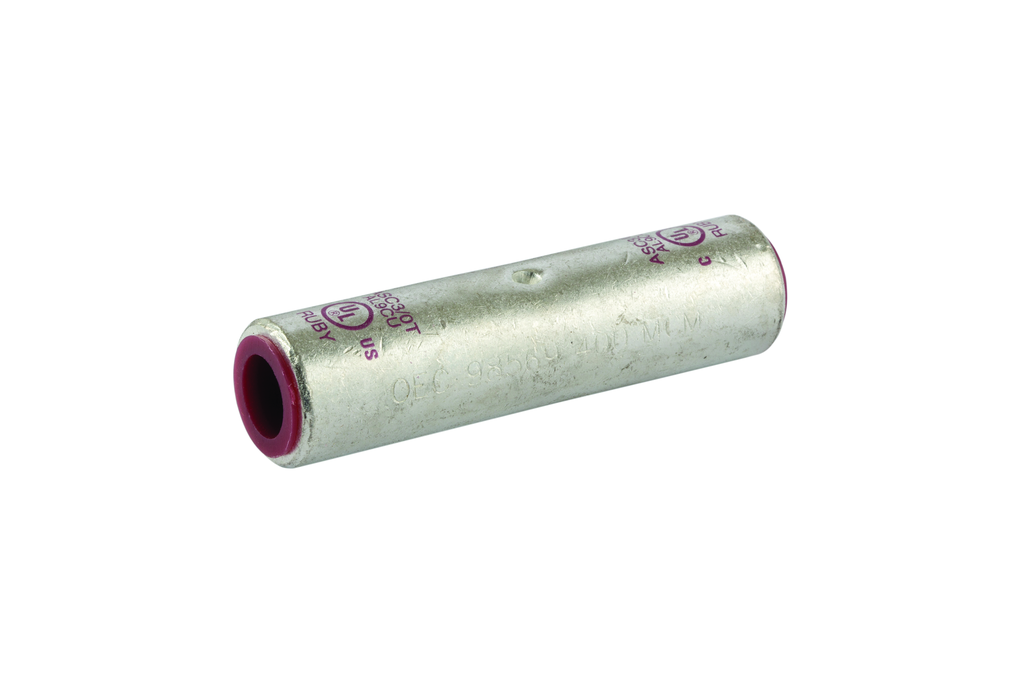

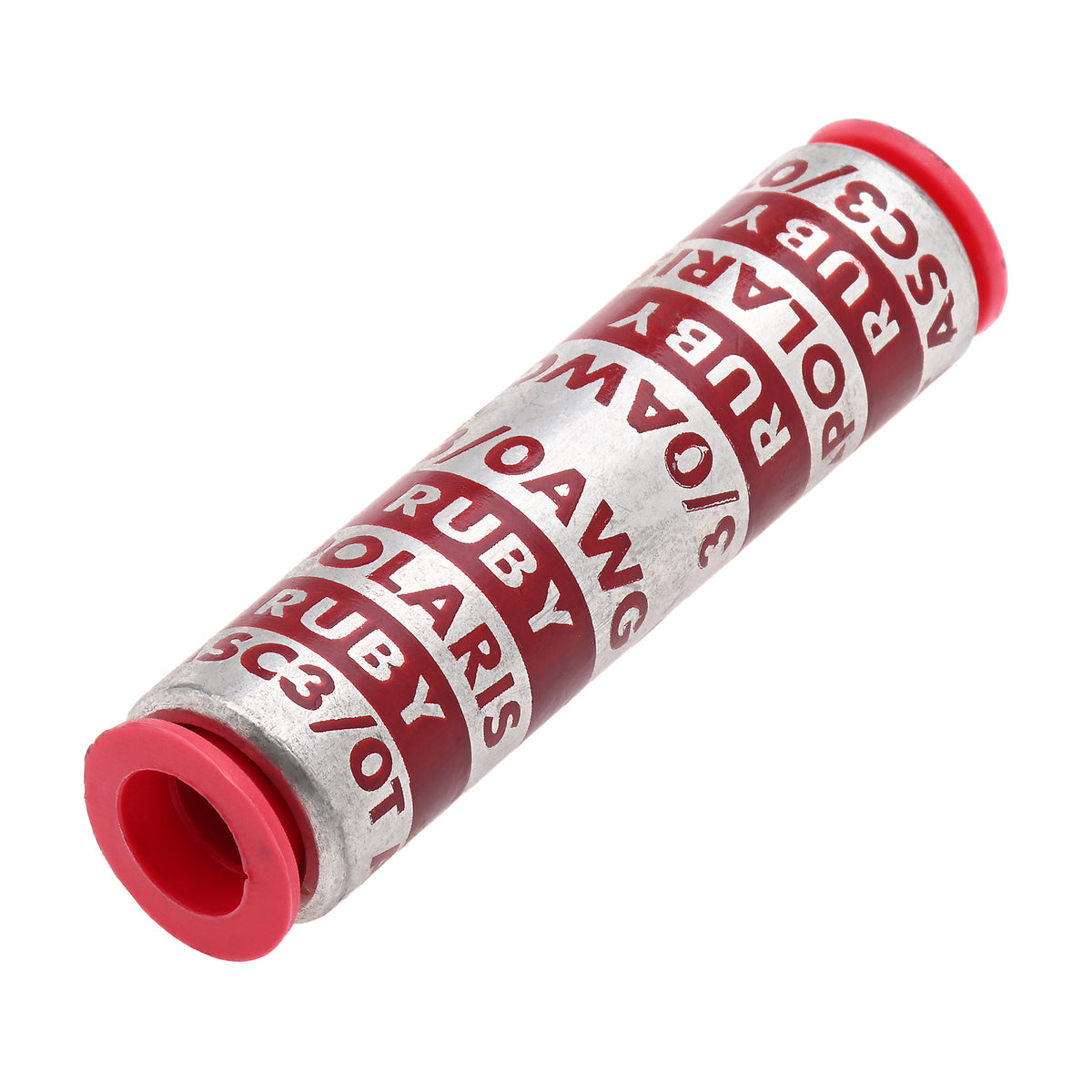

The NSI INDUSTRIES ASC3/0T is a dual-rated aluminum splice produced from high conductivity aluminum tubing. It features a center stop to ensure proper cable installation and is electro-tin plated for corrosion resistance. Color-coded and marked with die index information, it is pre-filled with oxide inhibitor and capped with a color-coded cap.

• Produced from high conductivity aluminum tubing
• Center stop assures proper cable installation
• Electro-tin plated for corrosion resistance

Product Highlights

The ASC3/0T is ideal for making quick in-line connections and repairing damaged wiring. It is also flex-rated for use with K, H, G, I, M, and DLO cables.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: ASC3/0T
• Country of Origin: India

Technical Specifications

• Type: Standard Barrel - ALCU Splice
• Brand: NSI Industries
• Width: 0.76 in
• Finish: Tin Plated
• Height: 0.76 Inch
• Length: 2.88 Inch
• Voltage: 600 Volt
• Material: Aluminum
• Standard: UL486
• Sub Brand: Aluminum Compression
• Product UPC: 66238103206
• 12-Digit UPC: 662381032065
• Applications: Terminate, Splice, Tap Power Connectors
• Conductor Size: 3/0 AWG
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Country of Origin: India
• Temperature Rating: 90 degrees C
• Number of Conductors: 2
• Environmental Conditions: 90 degrees C
• GTiN: 00662381032065
• Size: L=2.87 - OD=.759 - ID=.479
• Wire Cable Class: Class B, Class C
• Conductor Type: Aluminum, Copper
• Wire Range: 3/0 AWG
• Assortment: Aluminum Compression Splices
• Expanded Wire Range: 3/0 AWG ">– 2 AWG
• Die Color Code: Ruby
• Series: ASC-T
• Voltage Rating: 600 V AC
